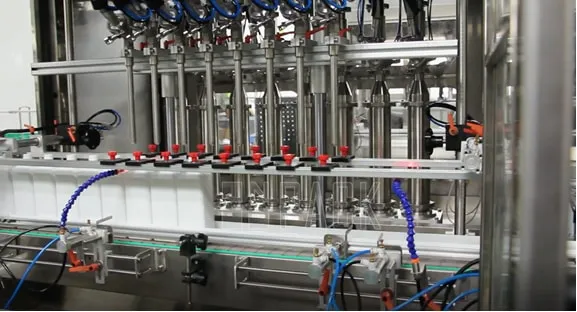

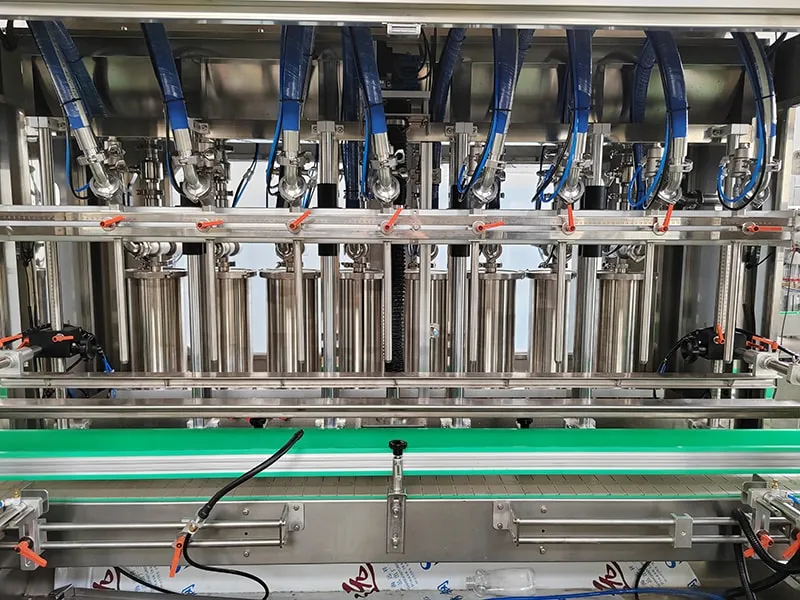

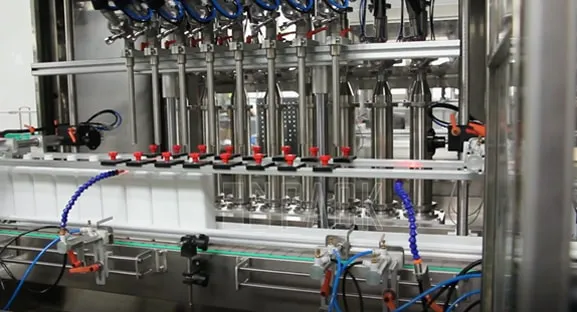

8-Head Dishwashing Liquid Filling Line
This automated filing line is designed for manufacturers of dishwashing liquid, laundry detergent, and other household cleaning products, bringing filling, capping, and labeling together in one packaging process.

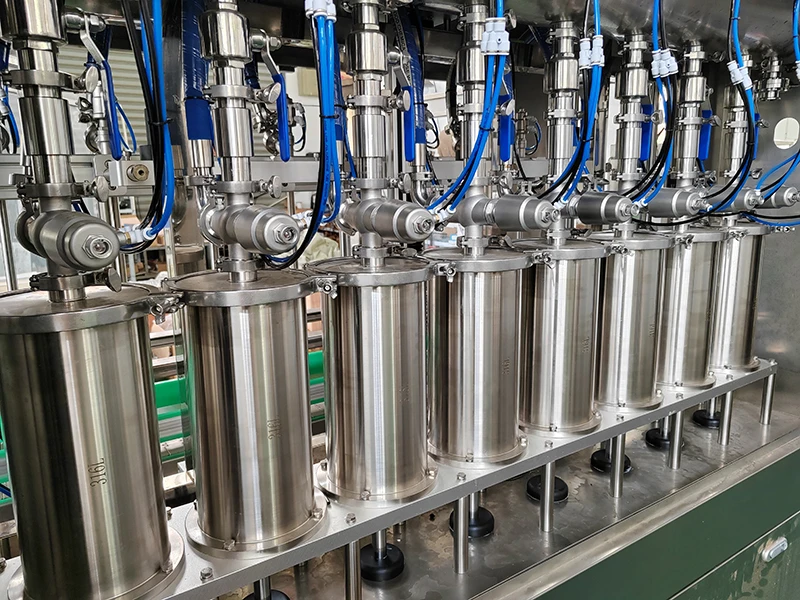

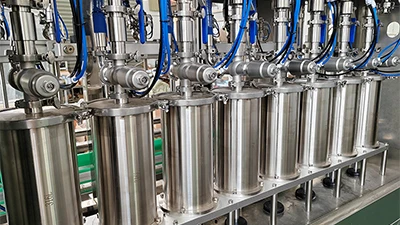

An 8-head piston filling system, four-wheel capping system, and single-side labeling machine work together to provide accurate filling, consistent capping, and efficient labeling. The line handles PET bottles and other plastic containers and is configured for continuous, automated production in medium- and large-scale cleaning product operations.
Parameters
| Bottle Type | Customizable |
| Production Speed | 32-56 bottles/min |
| Filling Accuracy | Filling volume≤1000ml, filling accuracy ±2~3ml Filling volume ≤5000ml, filling accuracy ±3~5ml |
| Filling Volume Range | 100-1000ml / 1000-5000ml (customizable) |

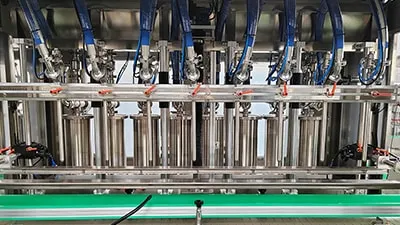

| Filling Nozzles | 8, customizable based on production capacity |

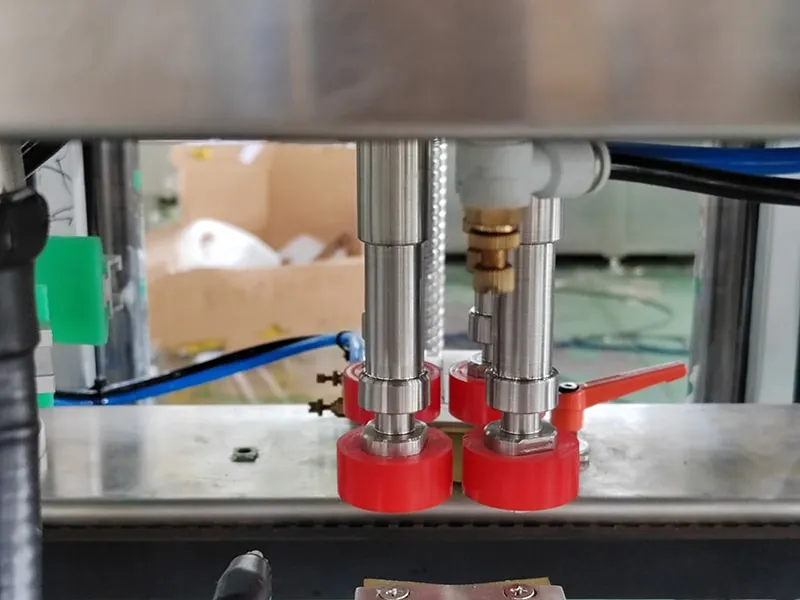

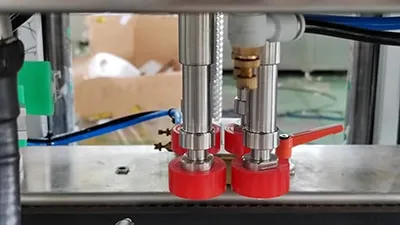

| Capping Wheels | 4 |
| Automatic Capping Rate | ≥99.9% |
| Dimensions | See layout |
Main Components
