Automatic Edible Oil Filling Line

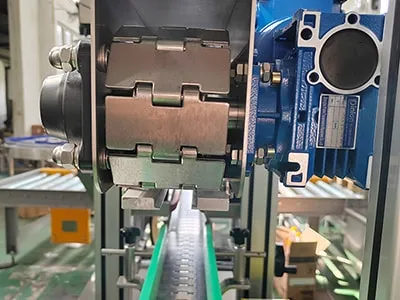

Filling Line with Linear Conveyor System

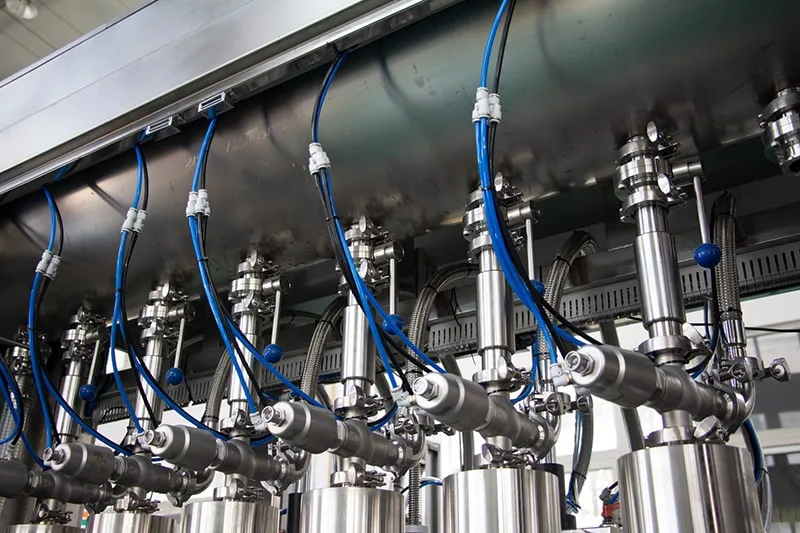

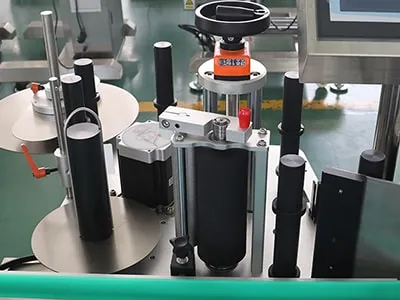

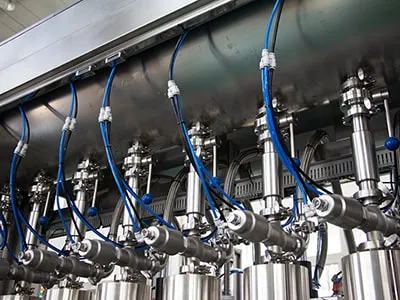

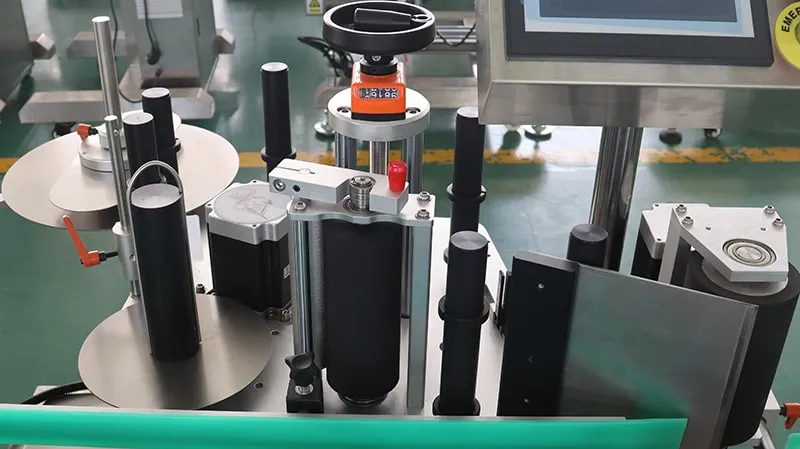

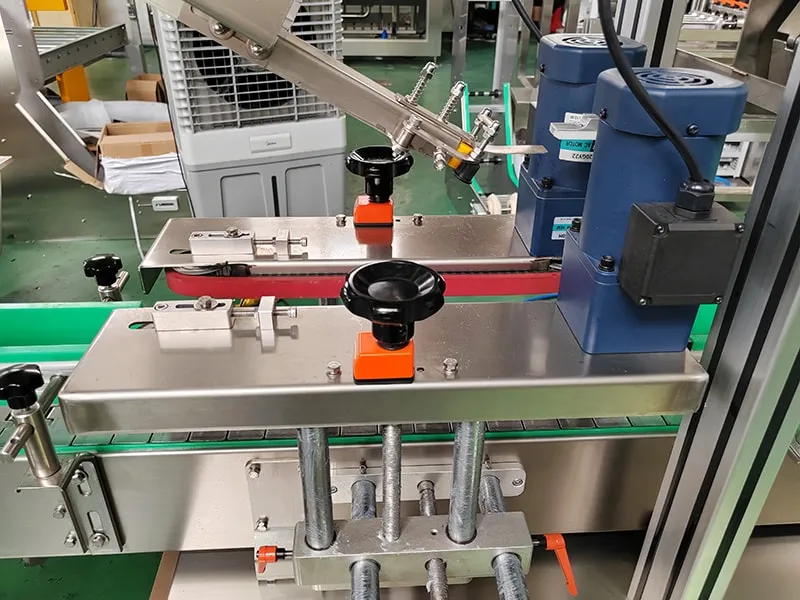

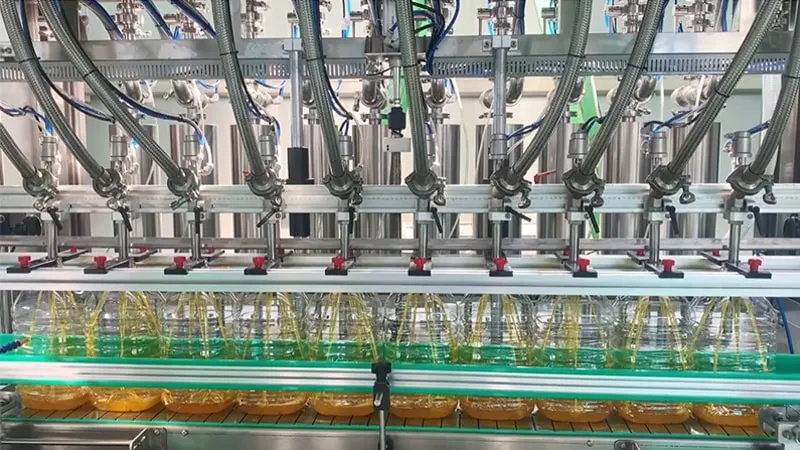

Npack automatic edible oil filling line combines a 10-head piston filling machine, automatic press-on capper, and single-side labeling machine in a linear conveyor configuration. The filling line integrates filling, capping, and labeling into an automated production process for olive oil, vegetable oil, and other edible oils.
Parameters
| Production Speed | 35-60 bottles/min |
| Filling Accuracy | Filling volume≤1000ml, filling accuracy ±2~3ml Filling volume ≤5000ml, filling accuracy ±3~5ml |
| Filling Volume Range | 100ml-500ml, 100-1000ml, 1000-5000ml |

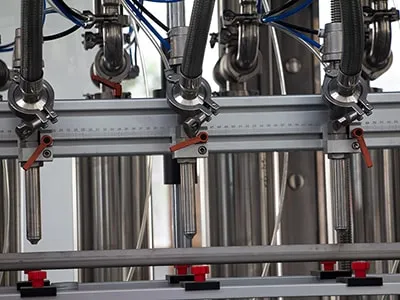

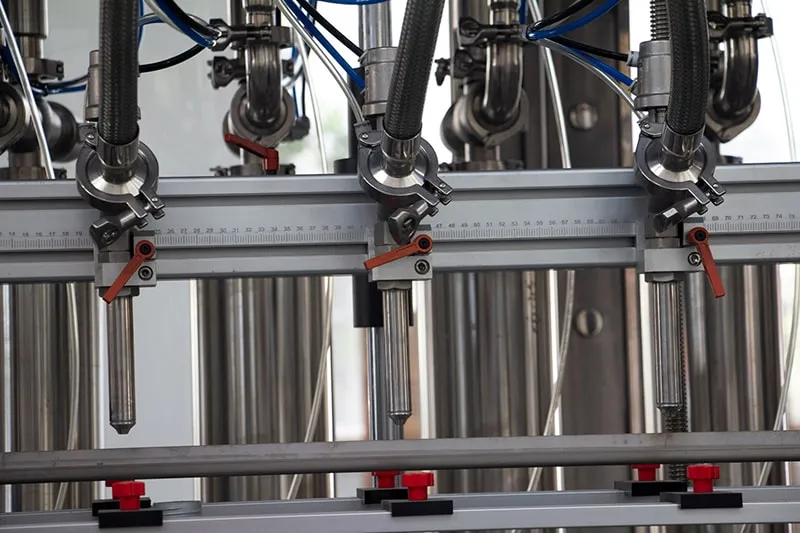

| Filling Nozzles | 10, customizable based on production capacity |
| Cap Diameter | ⌀12-120mm |
| Automatic Capping Rate | ≥99.9% |
| Dimensions | See layout |
Main Components
