Olive Oil Filling, Capping & Labeling Machine

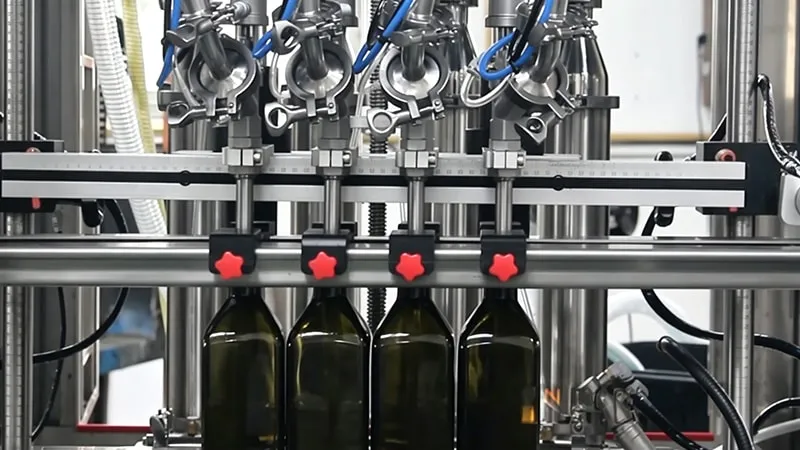

Npack olive oil filling capping labeling machine is an automated packaging line for olive oil, edible oil, and other liquid food products. The line combines 4-head piston filling, ROPP capping, and double-sided labeling, providing a continuous process from empty bottle infeed to finished product discharge.

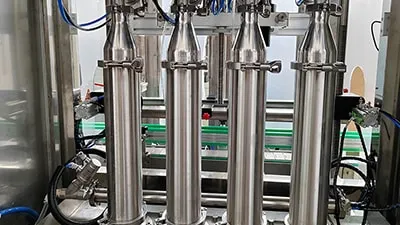

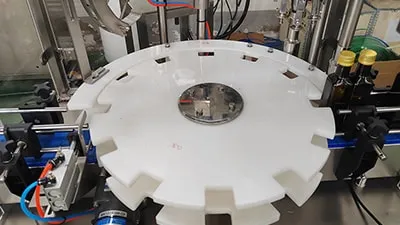

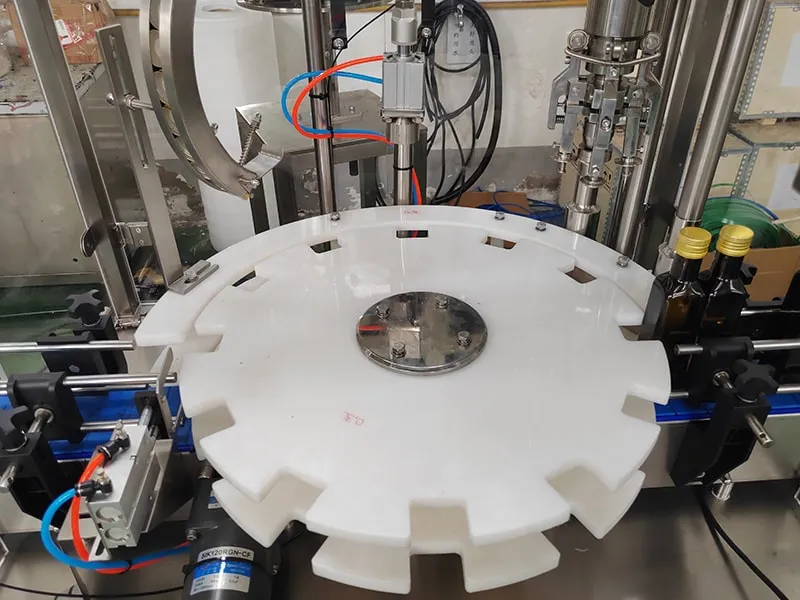

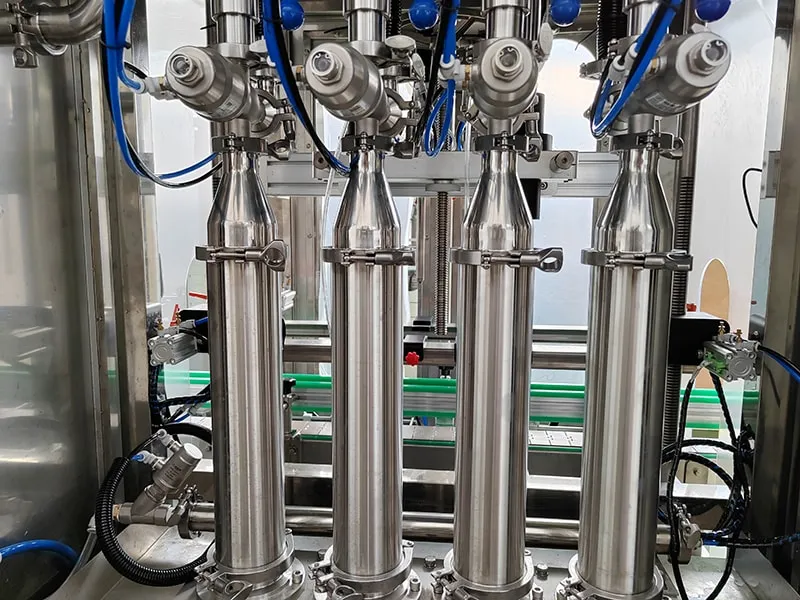

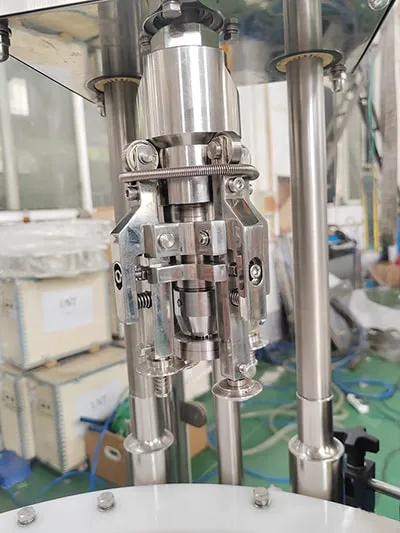

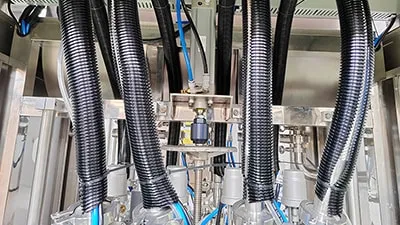

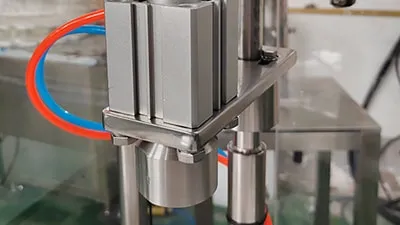

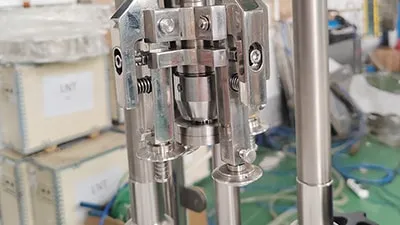

The piston filling system uses volumetric metering to control the fill quantity. The ROPP capping system seals aluminum caps by rolling them onto the bottle neck, while the double-sided labeling system provides accurate label placement for consistent finished packaging and presentation.
Parameters
| Production Speed | 16-25 bottles/min |
| Filling Accuracy | Filling volume≤1000ml, filling accuracy ±2~3ml Filling volume ≤5000ml, filling accuracy ±3~5ml |
| Filling Volume Range | 100ml-500ml, 100-1000ml, 1000-5000ml |
| Filling Nozzles | 4, customizable based on production capacity |
| Auromatic Capping Rate | ≥99.9% |
| Dimensions | See layout |
Main Components
