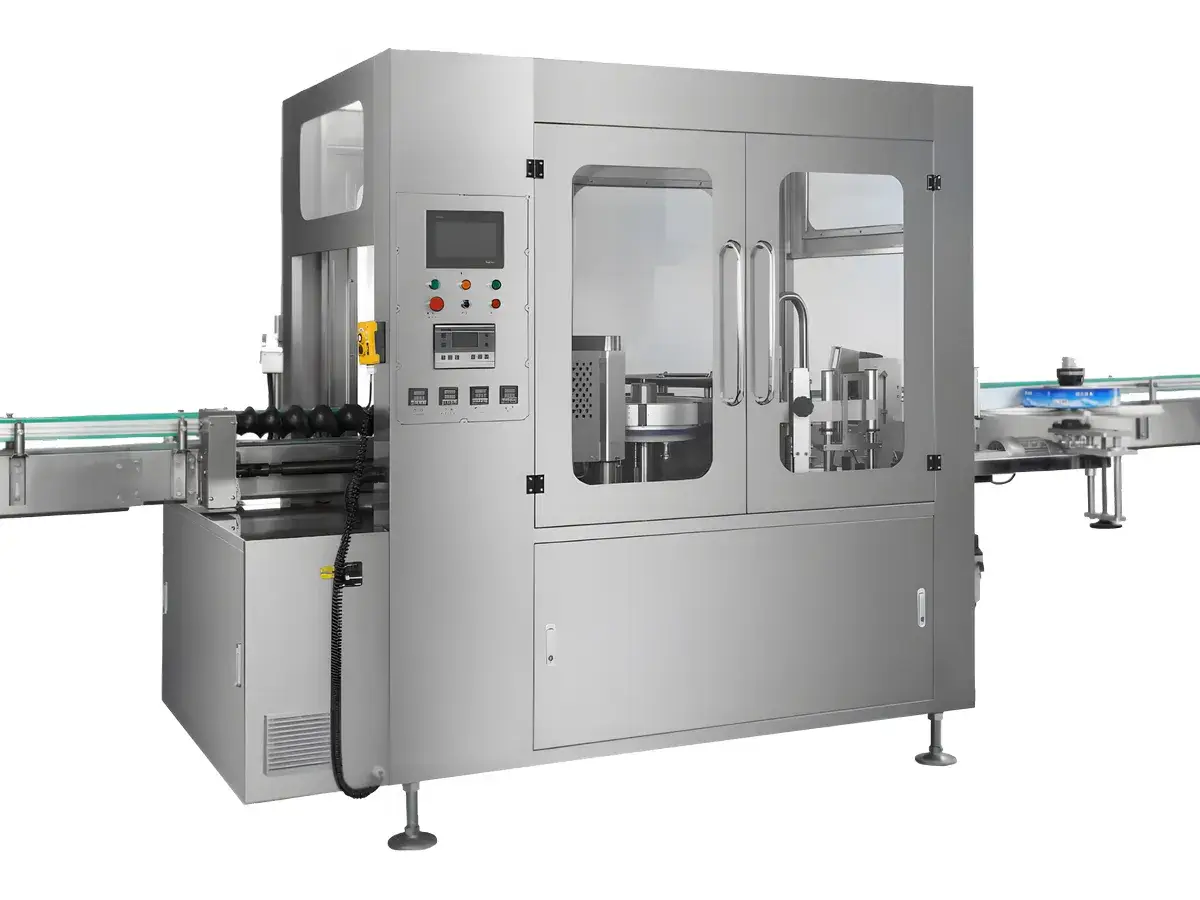

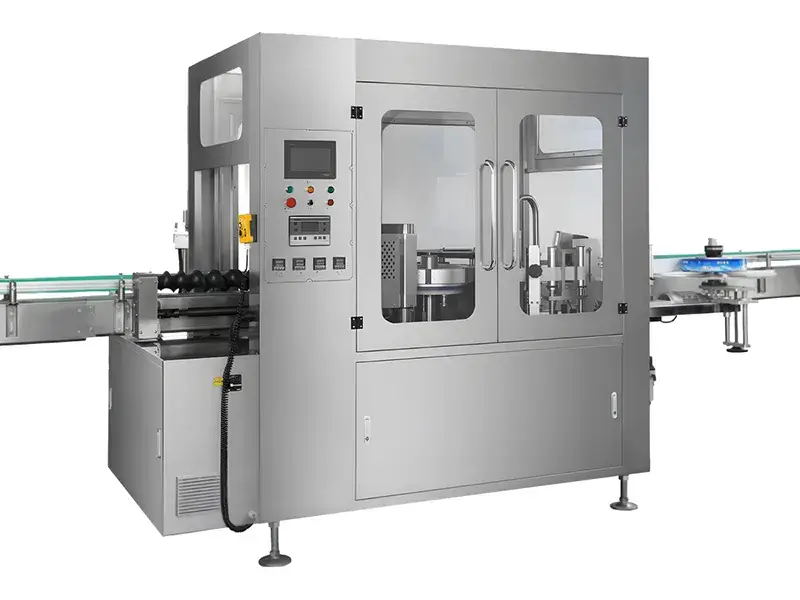

Automatic Hot Melt Glue Labeling Machine

OPP labeling machine for PET and glass beverage bottles

Automatic Hot Melt Glue Labeling Machine

Automatic hot melt glue labeling machines utilize environmentally friendly OPP/BOPP labels and ensure secure bubble-free labelling with accuracy up to ±0.5–1mm. Equipped with SUS304/316 stainless steel construction, servo drive and Simens PLC, the labeler machine integrates bottle feeding, label feeding, glue application, label cutting and labeling in a single-stage process, with maximum capacity of 38,000 BPH. It offers quick changeover for diverse types of bottles, tool-free dismantling for starwheel and guiding rails, easy adjustment for bottle height through automatic lifting and full servo control to offer higher stability, lower working noise and lower failure rate.

Our OPP labeling machine can help customers reduce up to 30% operation cost, providing high-speed, high-precision, low-cost automatic labeling solution for PET bottles, glass bottles, plastic bottles and jars.

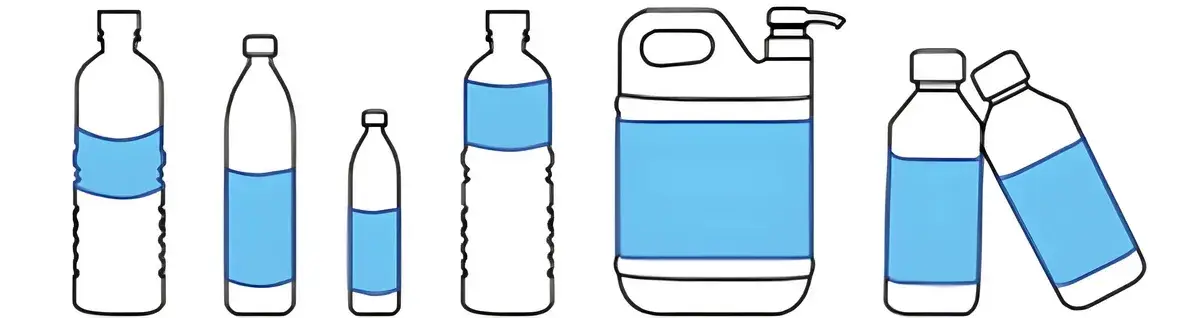

Application
Application
Parameters
Item No. NP-HML
Production Speed 20000-38000 BPH(The actual bottle type shall prevail)
Labeling Accuracy ±1mm
Maximum Width of Label 15-150mm (can be adjusted according to the actual product size)
Bottle Diameter 35-95mm (can be adjusted according to the actual product size)
Bottle Height 130-310mm (can be adjusted according to the actual product size)
Applicable Roll Inner Diameter 3 inches (optionally 6 inches)
Applicable Roll Outer Diameter Φ500 mm
Gluing Temperature 120-160℃
Overall Size L2720*W2000*H2150mm
Power Supply Three-phase 380V/50Hz 19kW
Operating Air Pressure 0.8MPa
