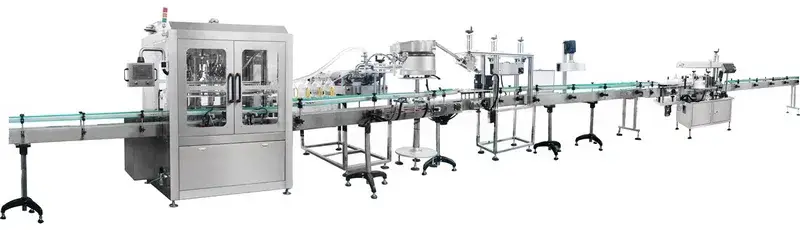

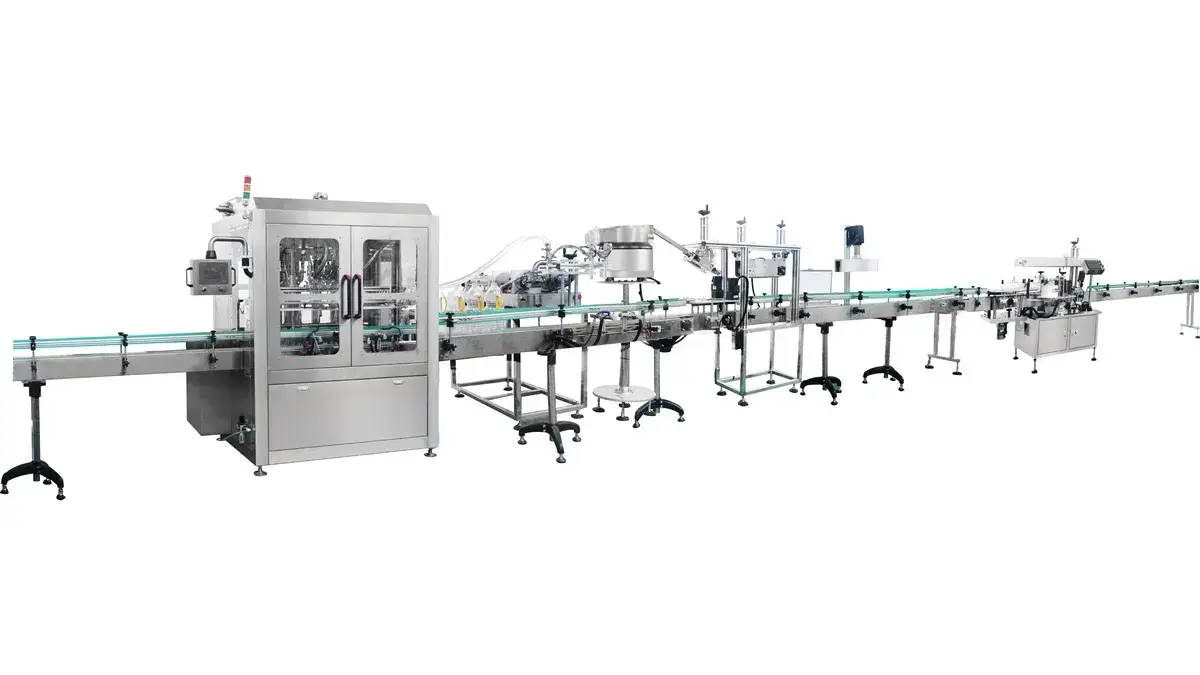

Wine & Spirit Filling Line
Automatic filling, capping and labeling system for wine, spirits, liquors and alcohol beverage
Key Specifications
-
Filling Accuracy:
- For filling volume ≤ 1000ml: Accuracy ±2–3ml/g
- For filling volume ≤ 5000ml: Accuracy ±3–5ml/g
- Applicable: 100ml-5000ml glass bottles and PET containers
- Production Capacity: 720-7200 BPH (Bottles Per Hour)
This fully automatic bottling line is specifically designed for wine, vodka and various other alcoholic beverages. The production line utilizes SUS304/316 food-grade stainless steel, servo drive and SS316 drip-free filling nozzles. The wine & spirit filling line integrates filling, capping and labelling, is equipped with SIMENS PLC and touch screen HMI, enables “No Bottle, No Filling” and safety door interlock (door-open stop). CIP (Clean-In-Place) is optional to reduce downtime and improve operational hygiene.

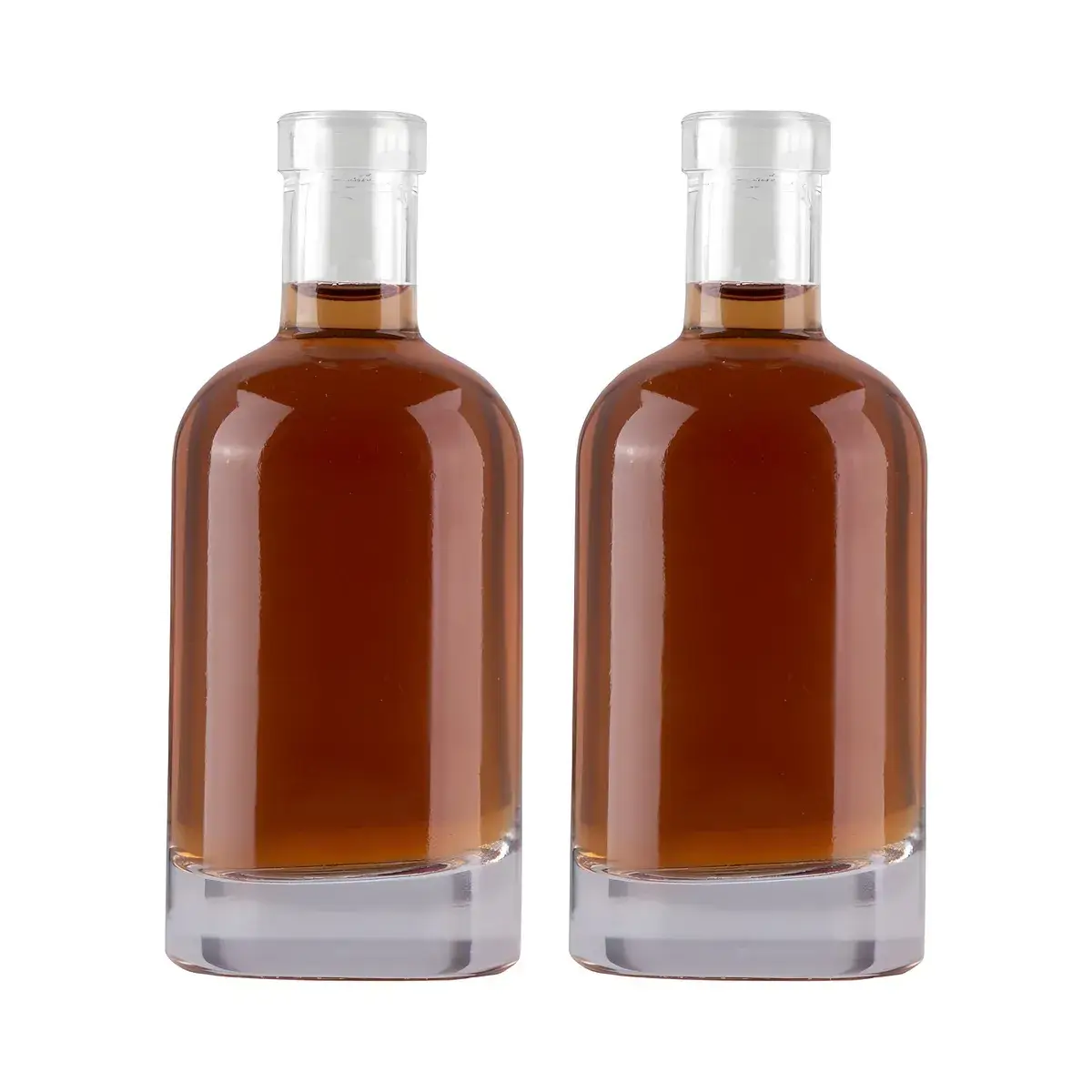

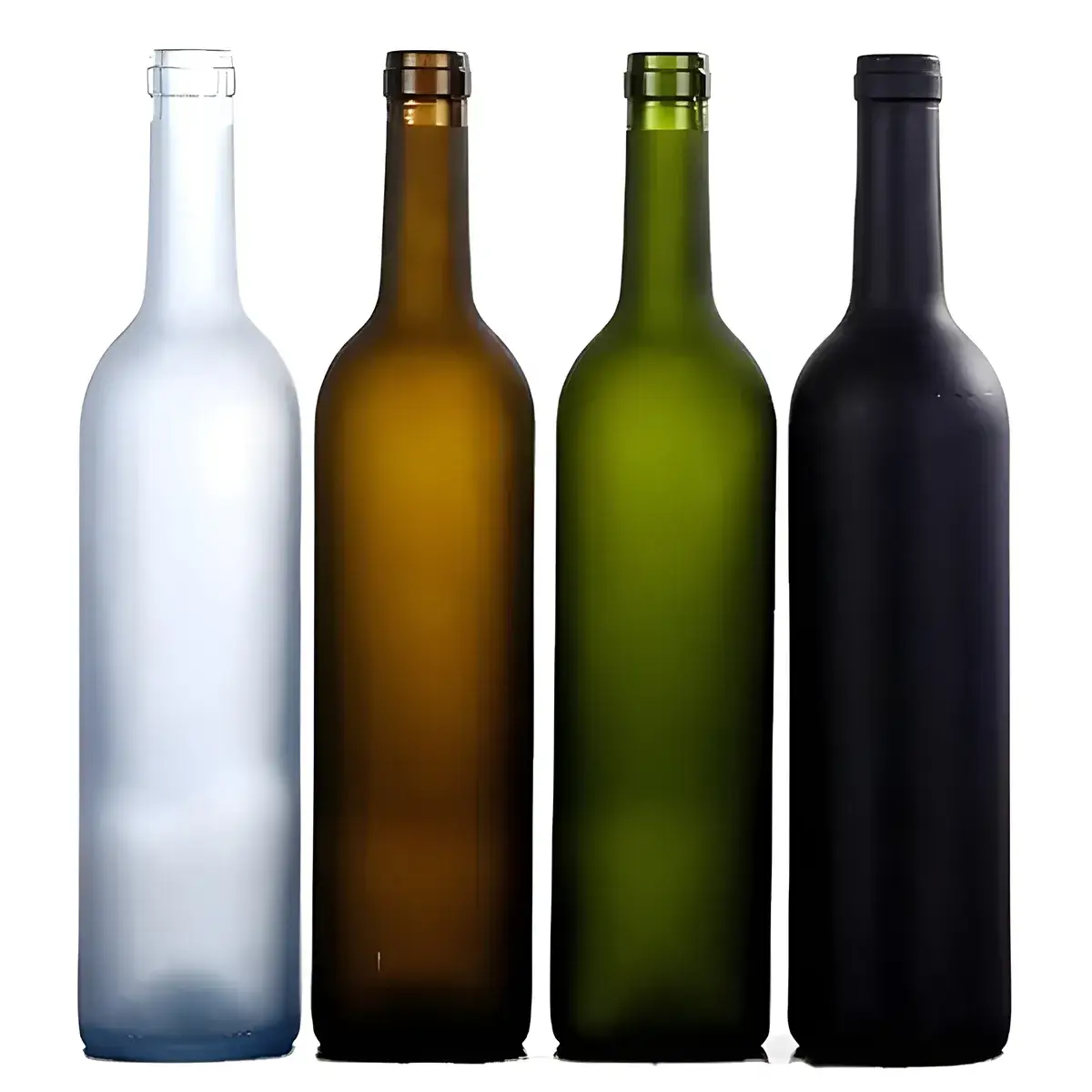

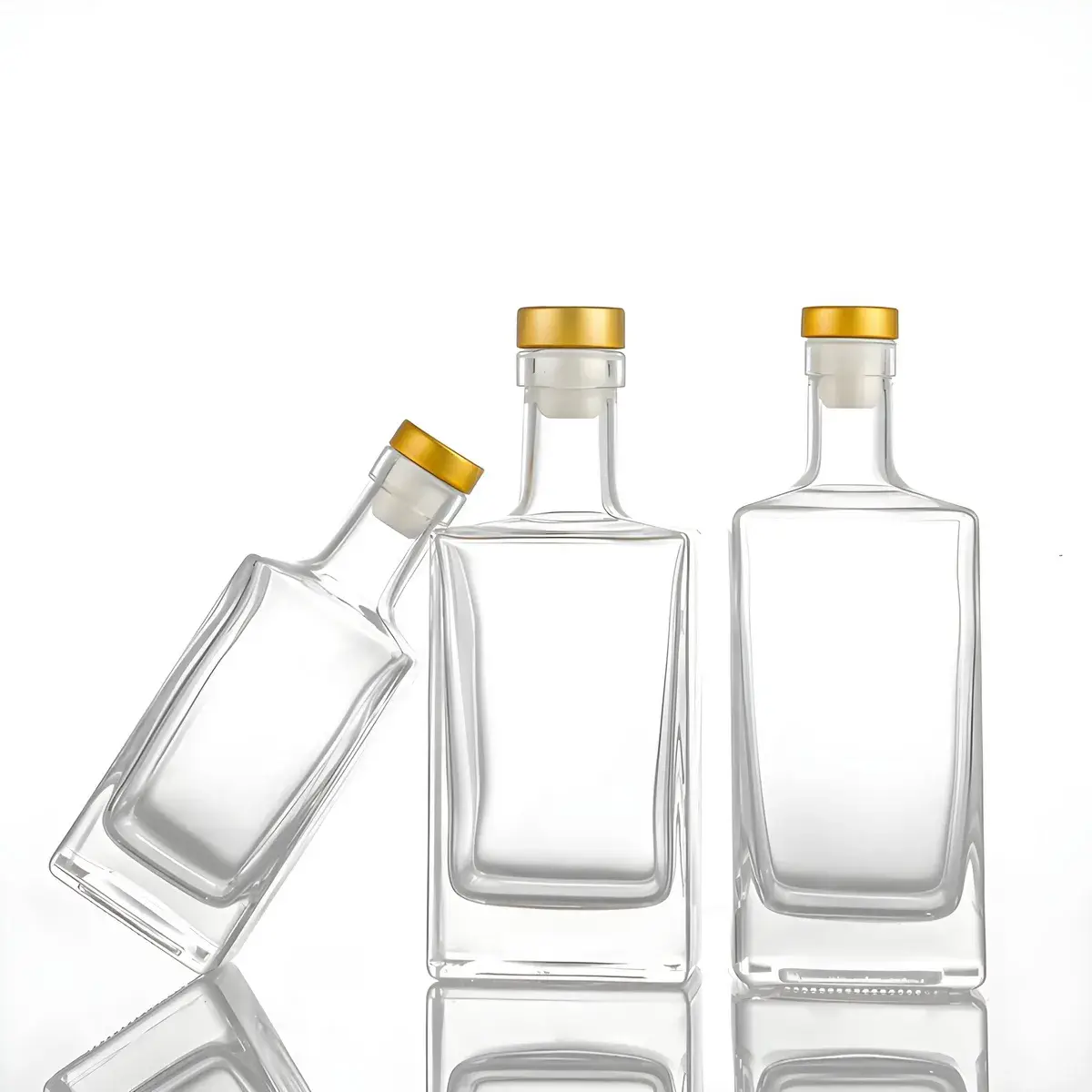

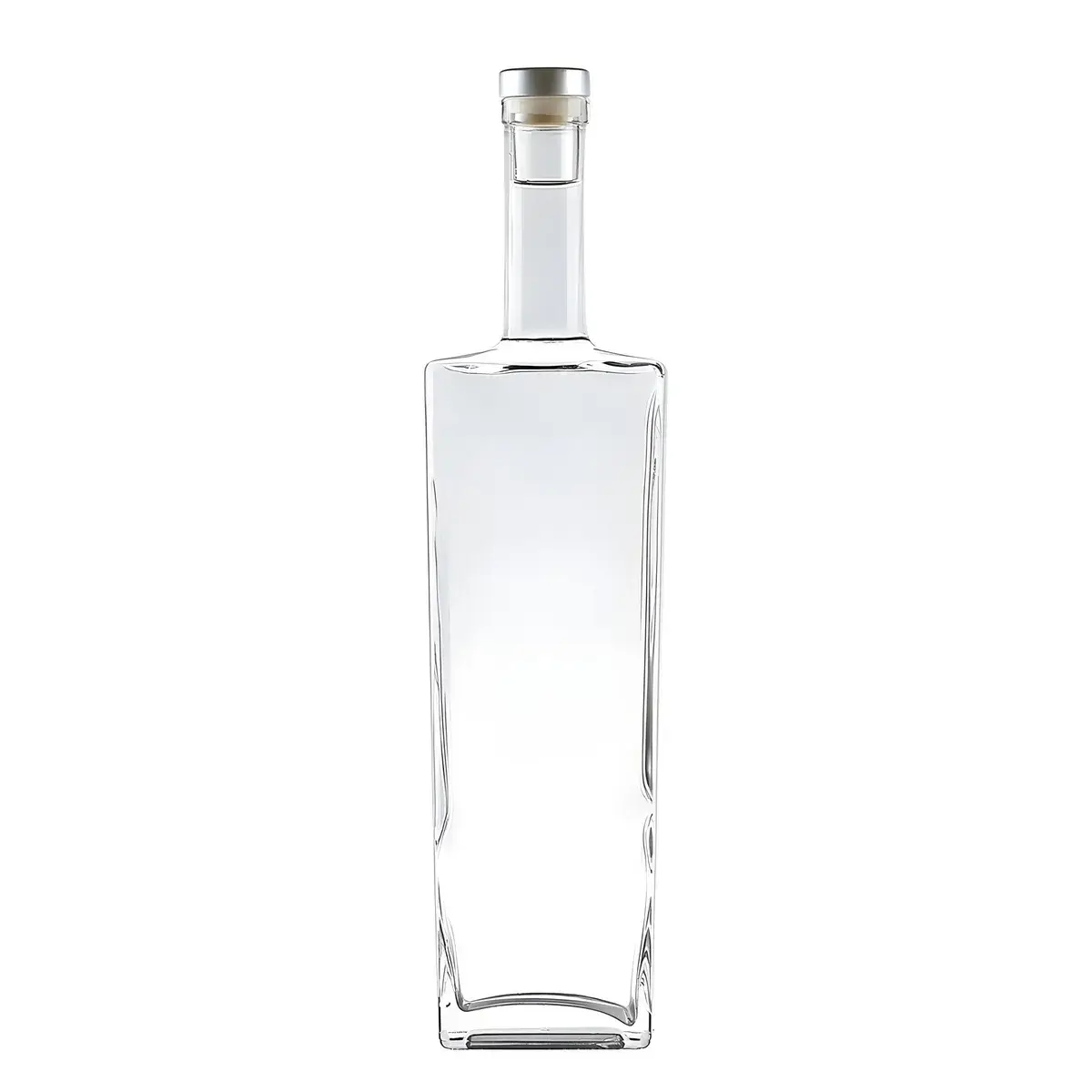

Application
Parameters
| Filling Nozzles | 2-20 heads(optional) |
| Filling Speed | about 720-7200bottles/hour |
| Filling Accuracy | Filling volume≤1000ml, filling accuracy ±2~3ml/g Filling volume ≤5000ml, filling accuracy ±3~5ml/g |
| Filling Form | Servo piston filling |
| Program Control | PLC & Touch Screen |
| Material Contact Part | 304/316 stainless steel |
| Air Pressure | 0.6-0.8MPa |
| Feed Tank Capacity | 150L (depends on the machine size) |
| Protection Device | Filling material shortage shutdown and alarm |

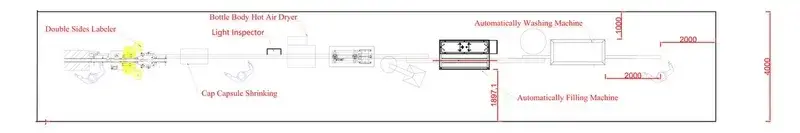

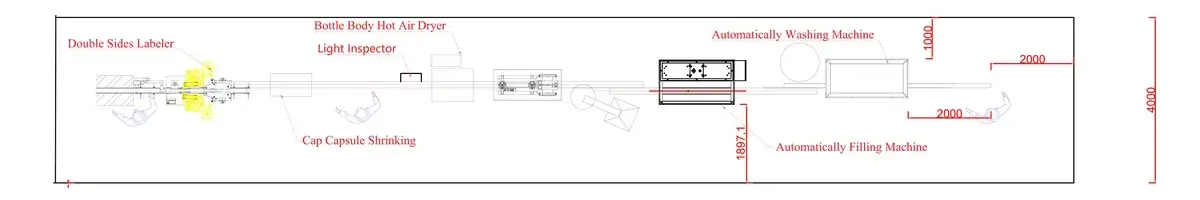

Process Flow Chart
Components
