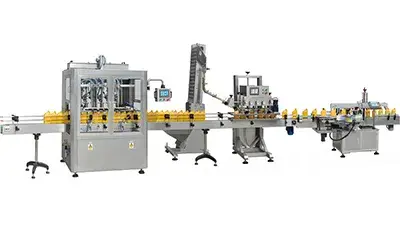

Industrial & Edible Oil Filling Line

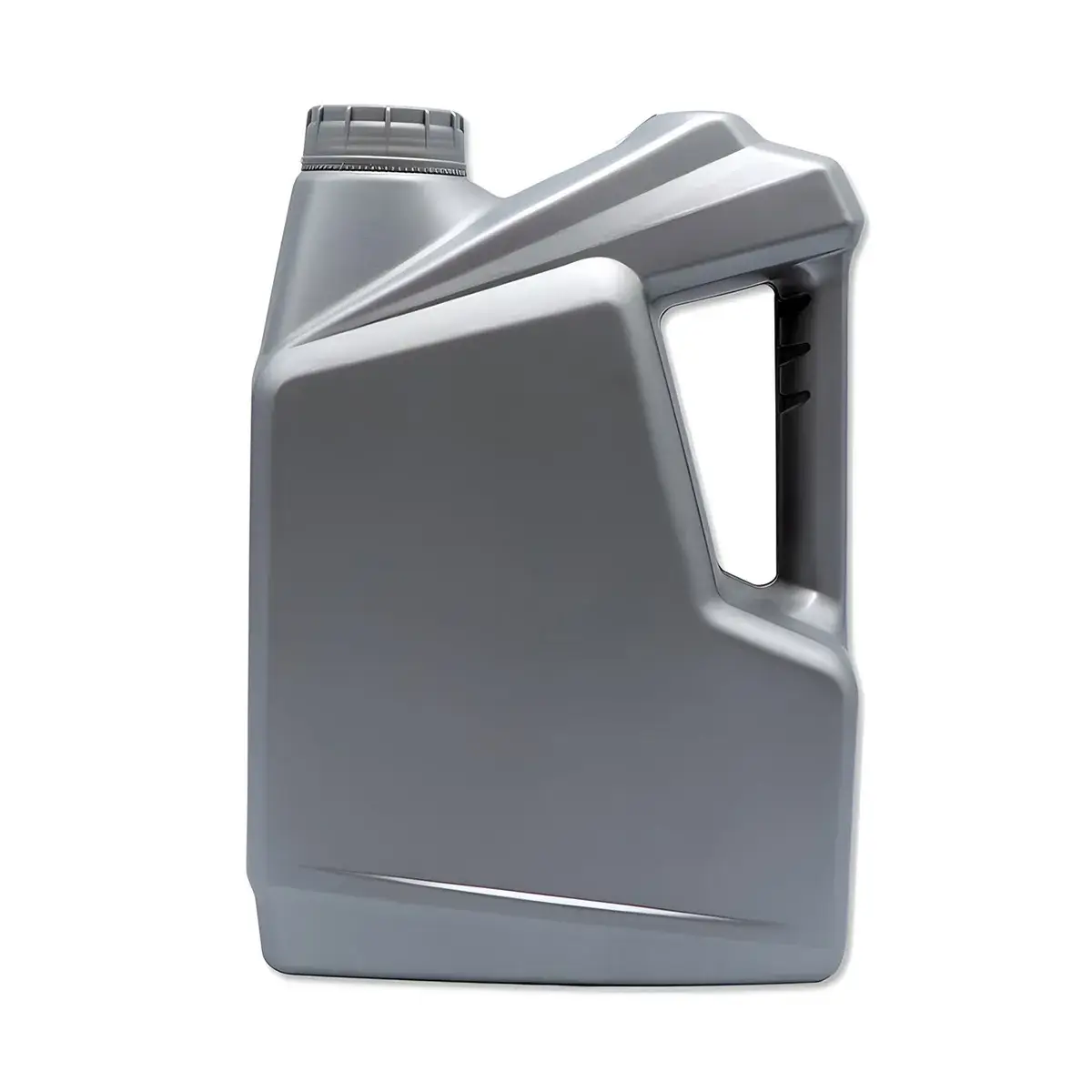

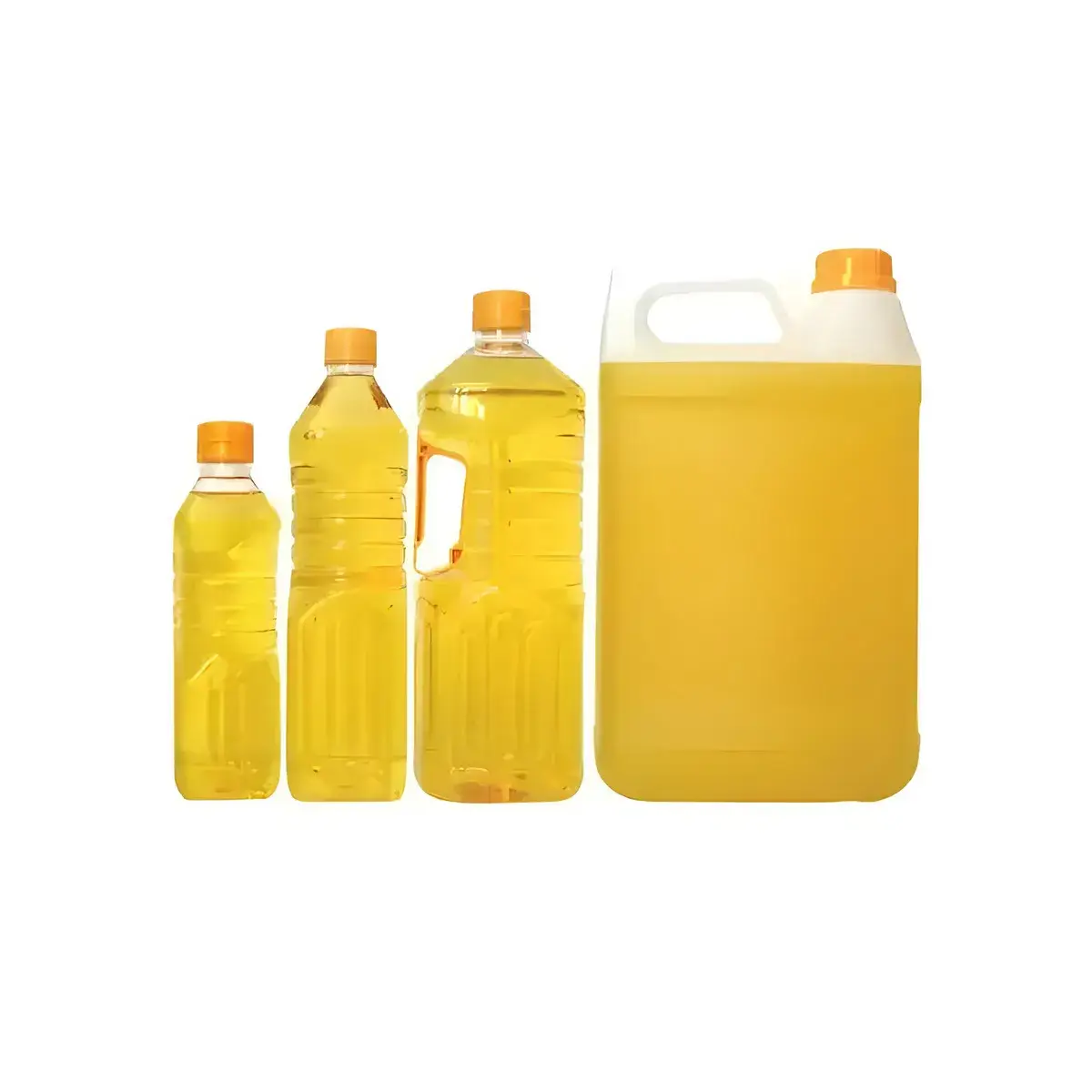

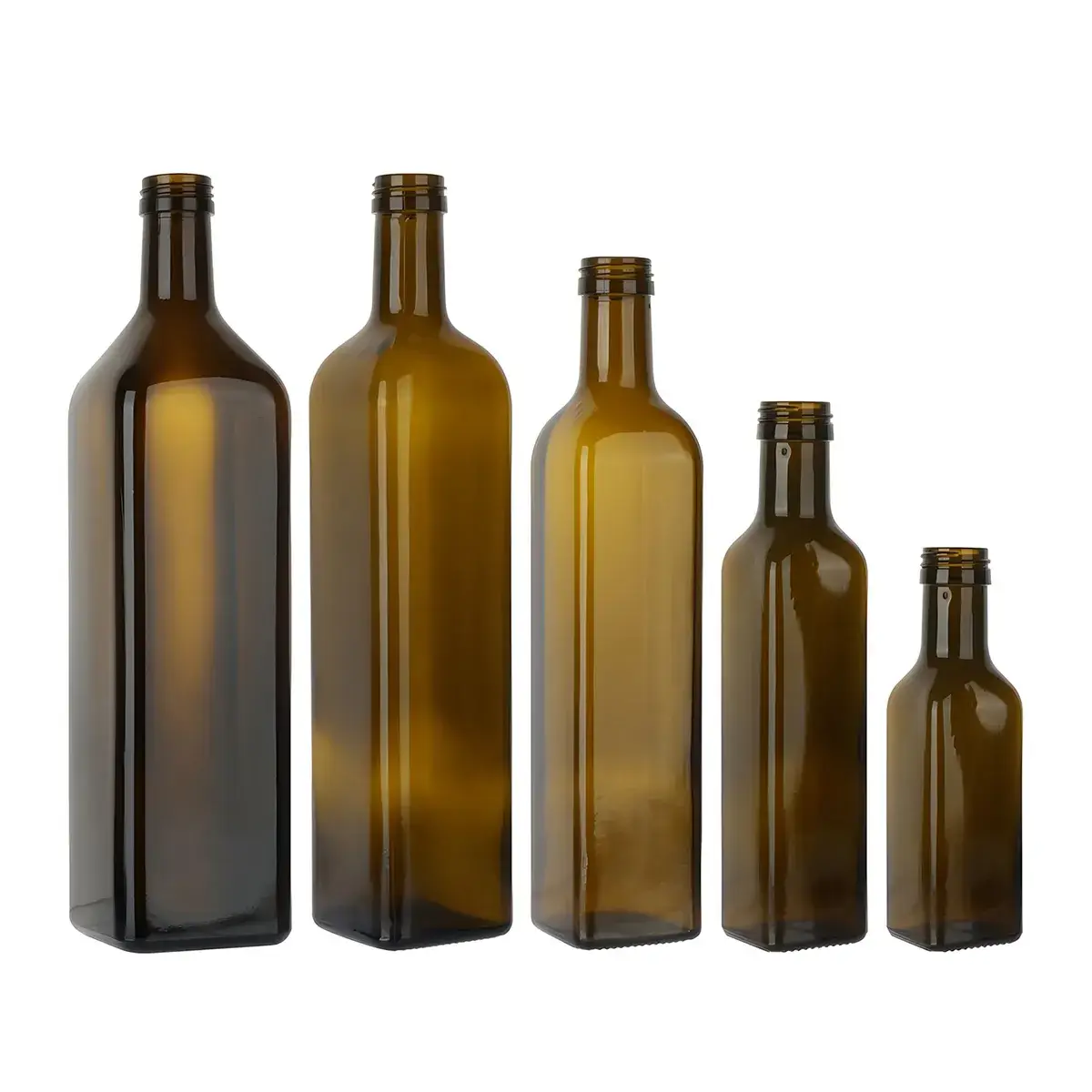

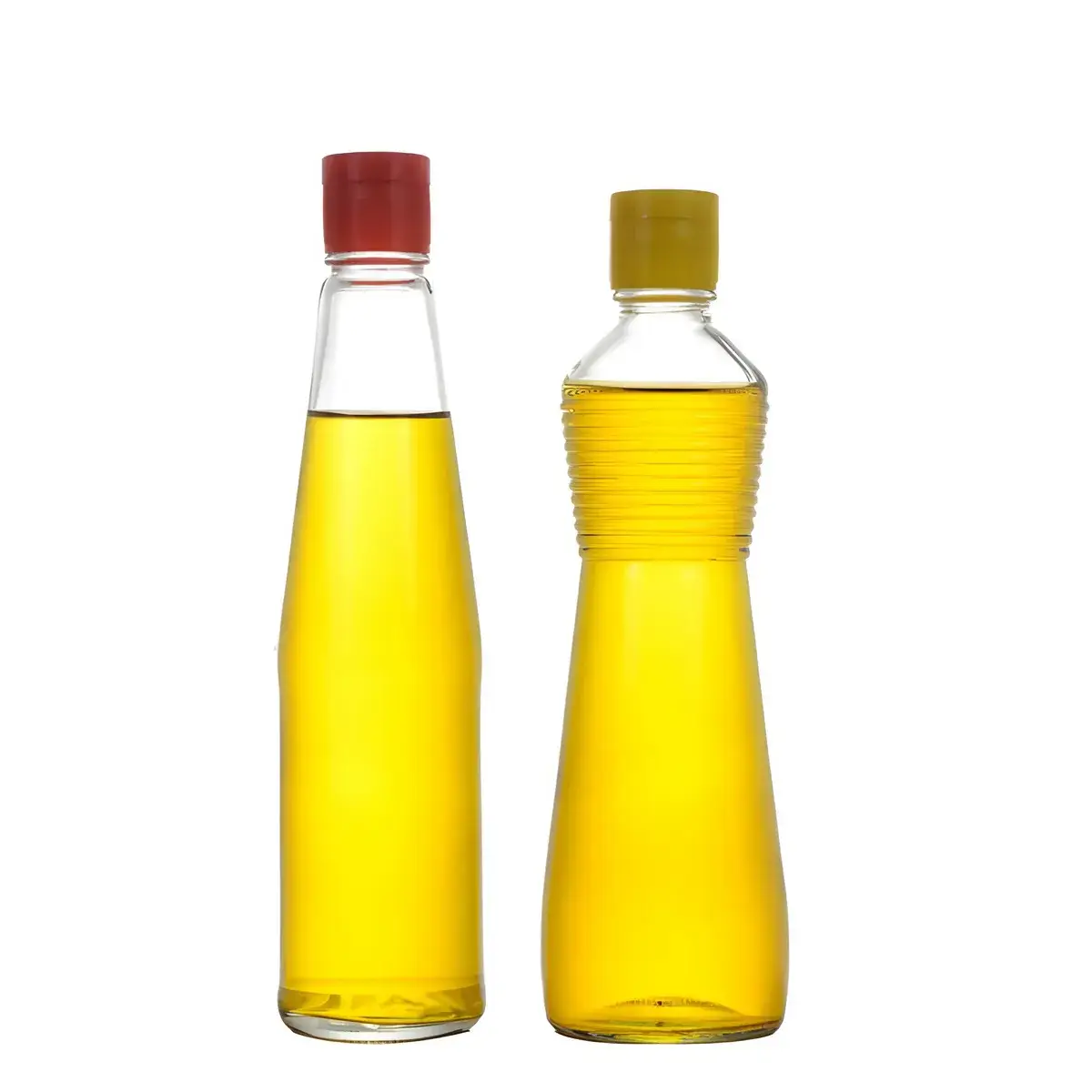

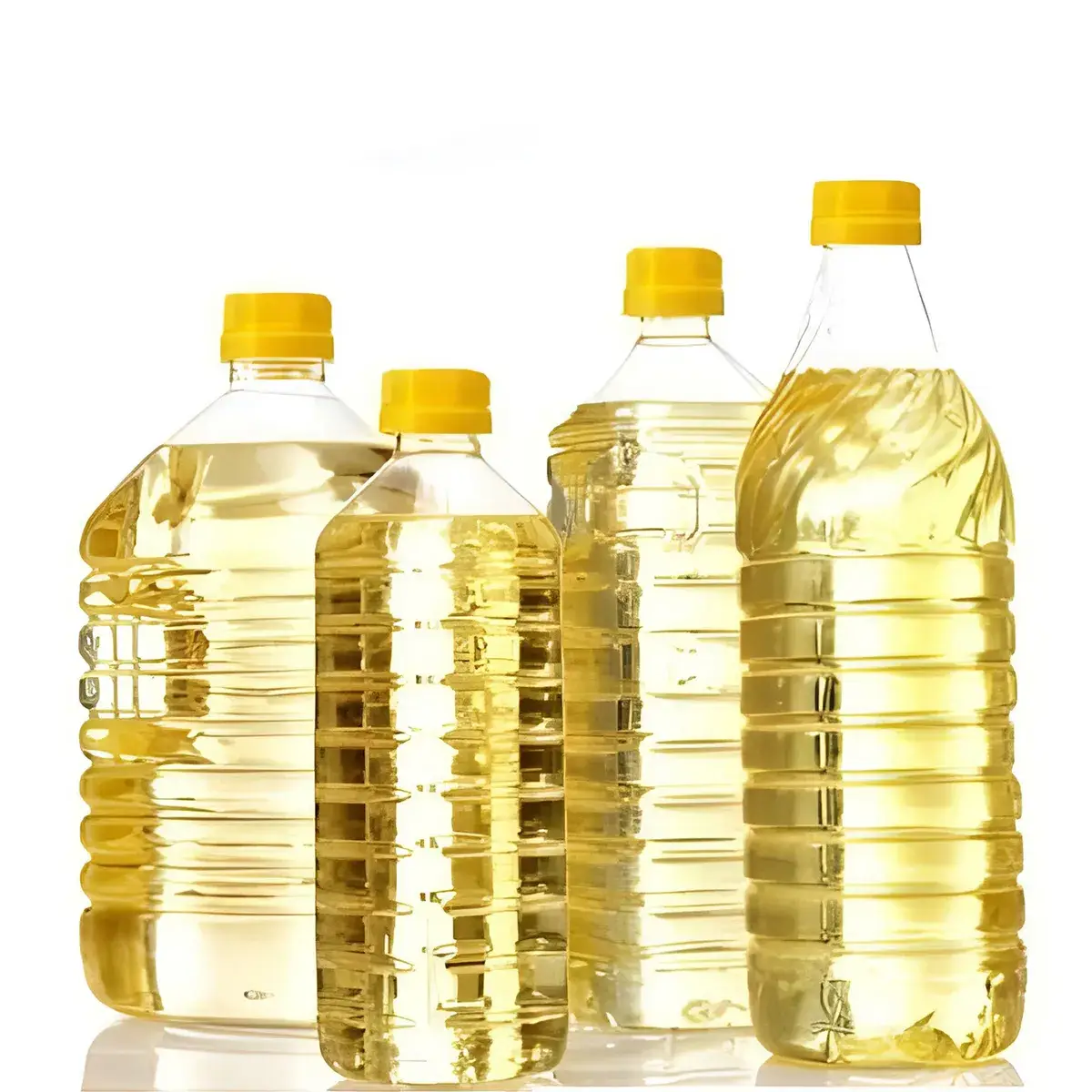

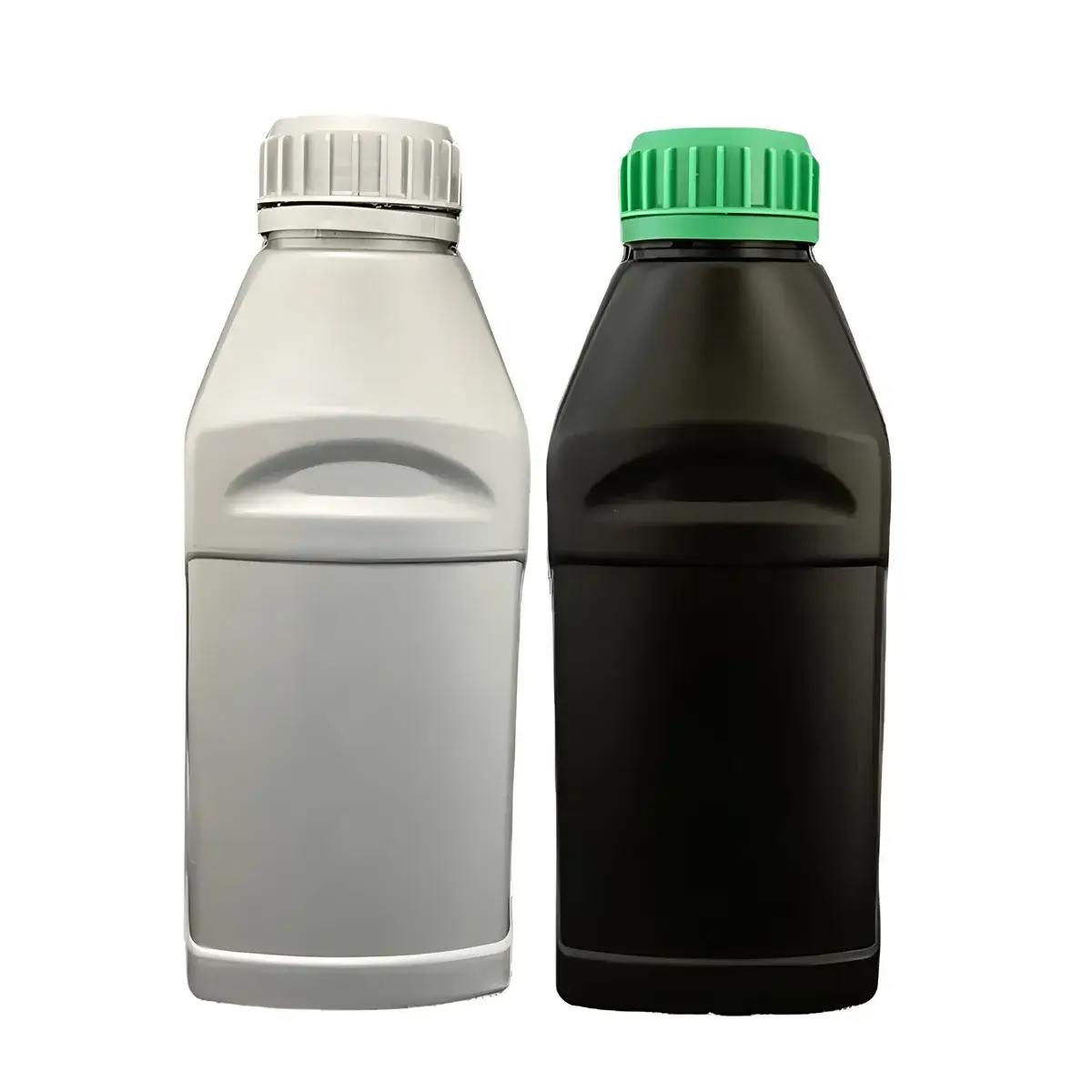

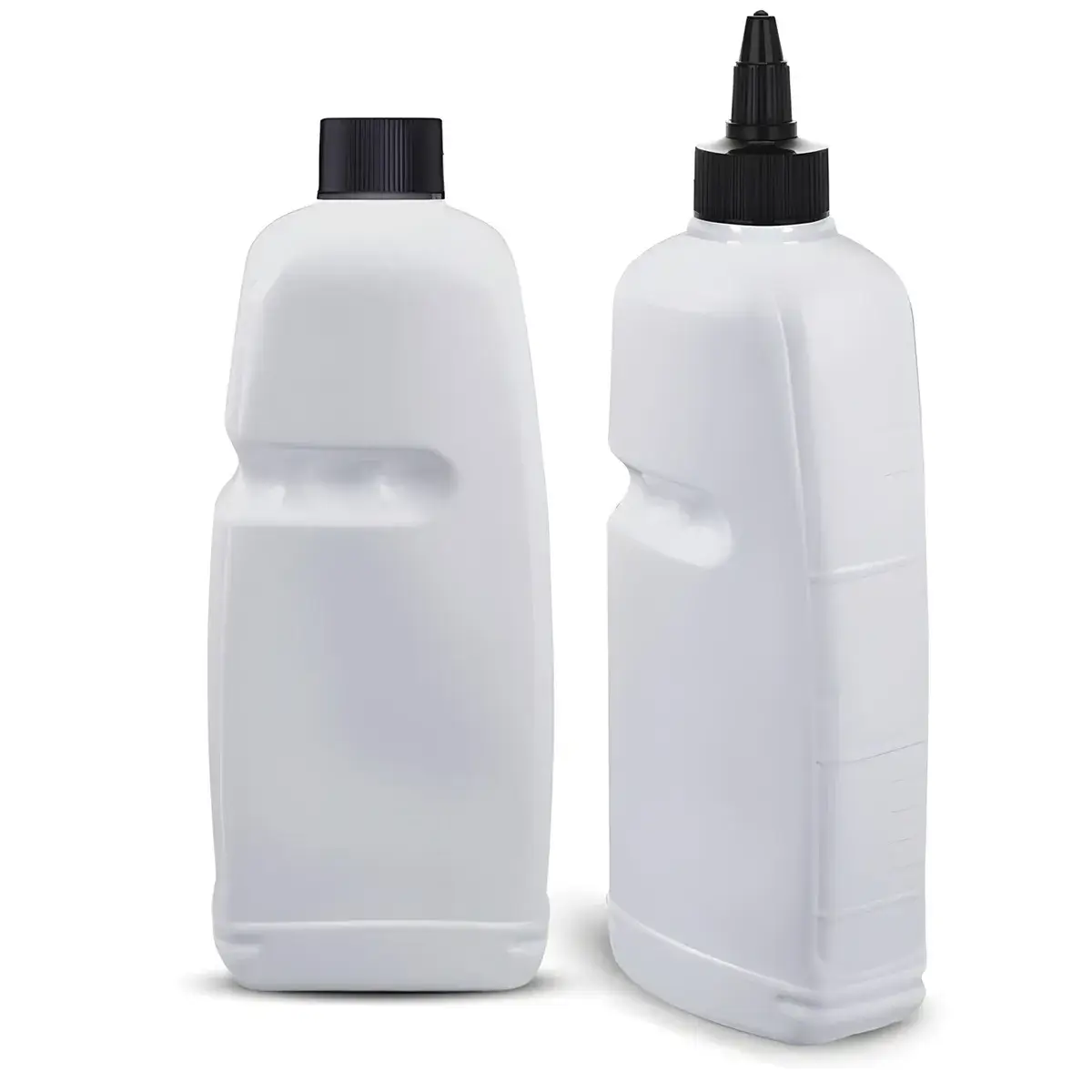

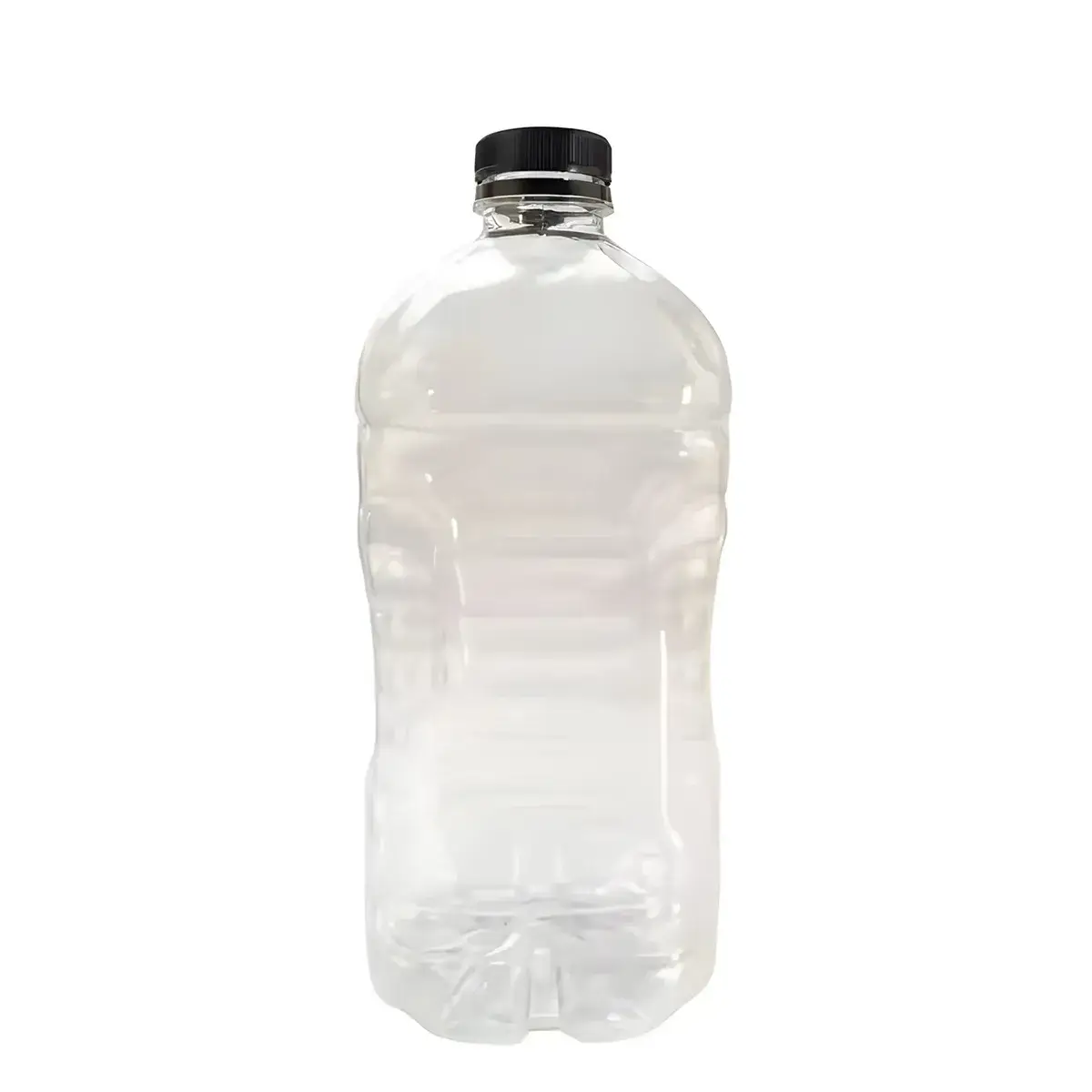

Automatic filling, capping and labeling system for cooking oil, olive oil, engine oil, lubricant and hydraulic fluid
-
Filling Accuracy:
- For filling volume ≤ 1000ml: Accuracy ±2–3ml/g
- For filling volume ≤ 5000ml: Accuracy ±3–5ml/g
-
Production Capacity:
- 12–120 BPM (Bottles Per Minute)

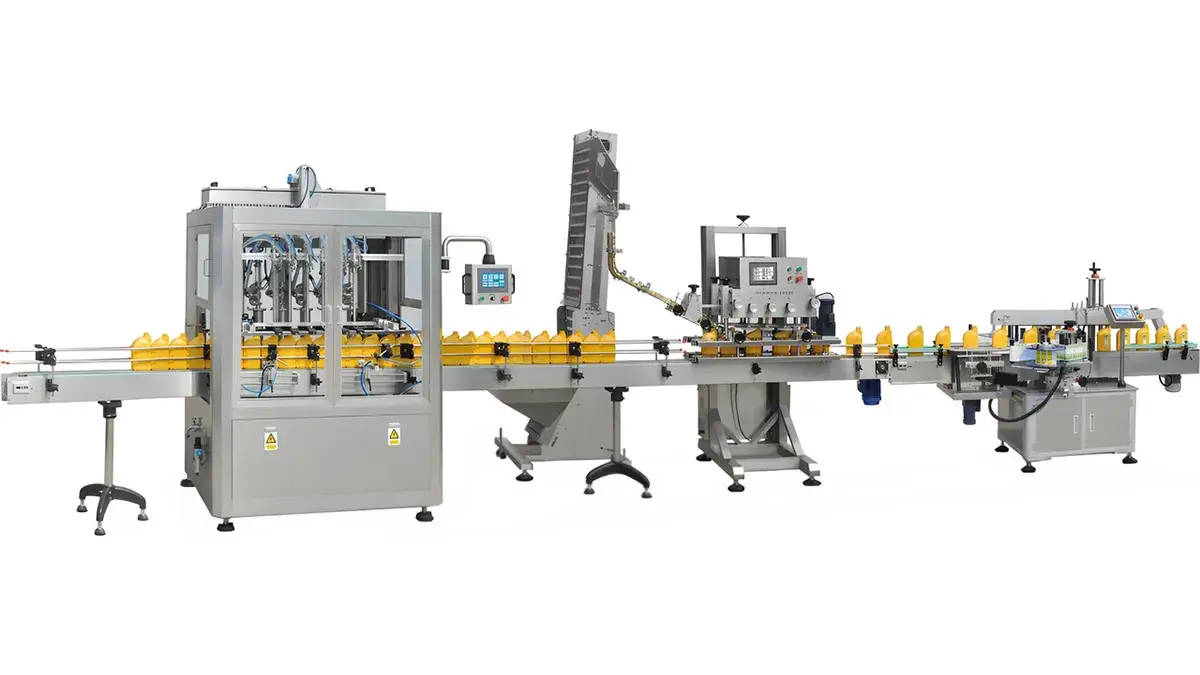

Integrated with filling, capping and labeling unit, the oil filling line is engineered for edible oil and industrial oil. Equipped with food-grade SUS304/316L stainless steel, piston filling method, PLC control and safety protection function, optional CIP (Clean-in-Place) function, the automatic oil filling production line guarantees both high efficiency and superior hygiene.
| Filling Nozzles | 2-20heads(optional) |
| Filling Speed | About 720-7200 BPH |
| Filling Accuracy | Filling volume≤1000ml, filling accuracy ±2~3ml Filling volume ≤5000ml, filling accuracy ±3~5ml |

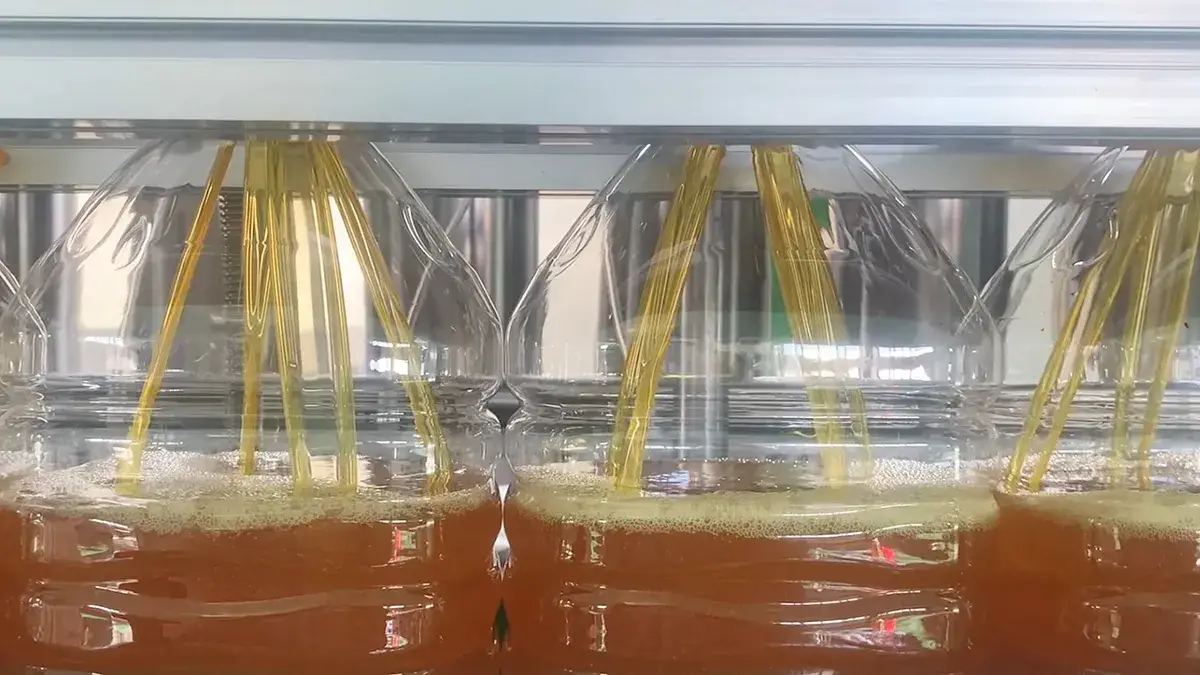

| Filling Form | Servo Piston Filling |
| Program Control | PLC & Touch Screen |
| Material Contact Part | 304/316 stainless steel |
| Air Pressure | 0.6-0.8MPa |
| Feed Tank Capacity | 150L (depends on the machine size) |
| Protection Device | Filling material shortage shutdown and alarm |

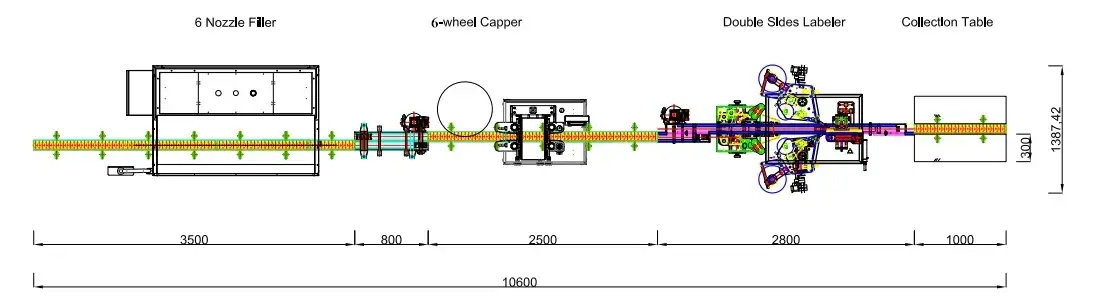

The entire line integrates the processes of filling, capping, sealing, labeling, boxing and palletizing in a fully automated manner.
The core electronic control system adopts INOVANCE and SIEMENS PLC/HMI and servo systems. The pneumatic components are selected from brands such as FESTO and Airtac, ensuring stability, reliability and high consistency during long-term operation.
