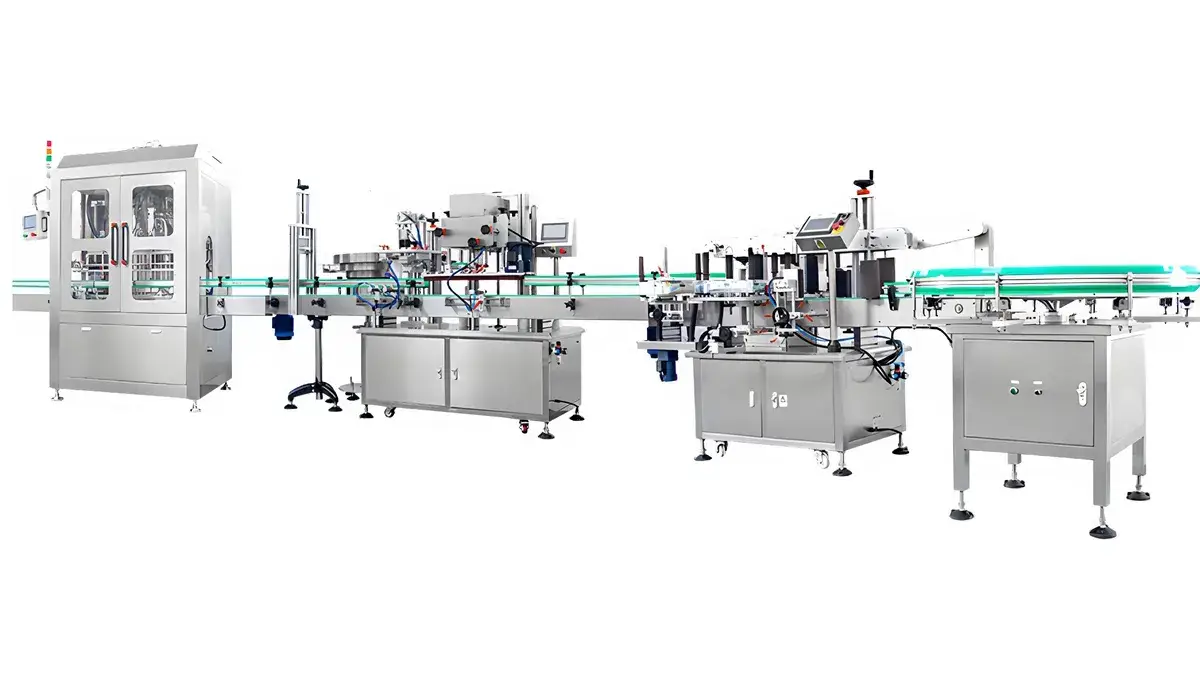

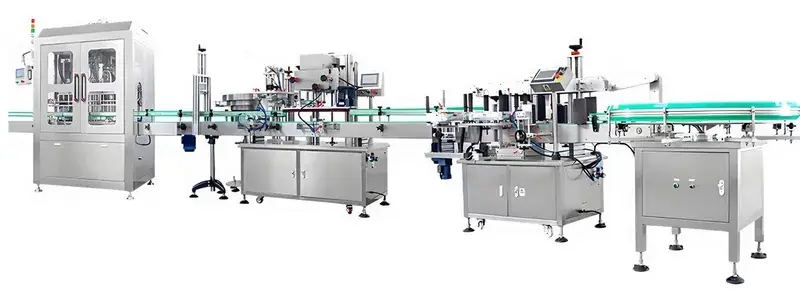

Sauce & Condiment Filling Line
Automatic filling, capping and labeling system for sauce, jam, honey, mayonnaise, mustard, and other viscous food products
Watch Videos
Key Specifications
- For filling volume ≤ 1000ml: Accuracy ±2–3ml/g
- For filling volume ≤ 5000ml: Accuracy ±3–5ml/g
- Filling Volume: 50 ml-5000ml
- Production Capacity: 12–120 BPM (Bottles Per Minute)
The sauce & condiment filling line is designed for ketchup, jam, chili sauce, peanut butter, honey and other viscous products. Integrating filling, capping, sealing, labeling, boxing and palletizing, it sets up a real end to end fully automatic packaging line. Equipped with piston filling machine with accuracy of For filling volume ≤ 1000ml: Accuracy ±2–3ml/g, For filling volume ≤ 5000ml: Accuracy ±3–5ml/g, the filling production line also features anti-drip design, photoelectric system for “No Bottle, No Filling”. The filling machine is constructed from SUS304/316 stainless steel, compliable with GMP sanitary standards.
Application
Parameters
| Filling Nozzles | 2-20 heads (optional) |
| Filling Speed | about 720-7200 BPH |
| Filling Accuracy | Filling volume≤1000ml, filling accuracy ±2~3ml/g Filling volume ≤5000ml, filling accuracy ±3~5ml/g |
| Filling Form | Servo piston filling |
| Program Control | PLC &Touch Screen |
| Material Contact Part | 304/316 stainless steel |
| Air Pressure | 0.6-0.8MPa |
| Feed Tank Capacity | 180L (depends on the machine size) |
| Protection Device | Filling material shortage shutdown and alarm |

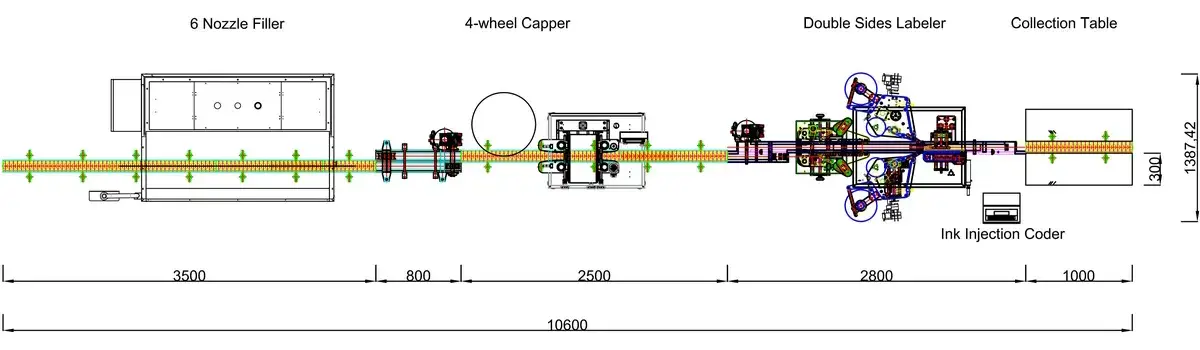

Process Flow Chart

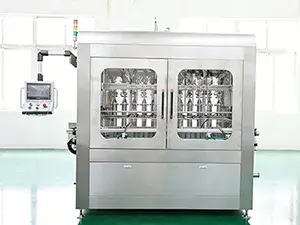

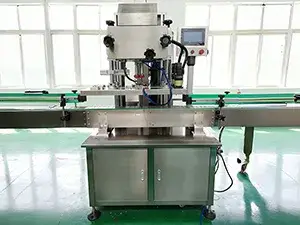

Components
