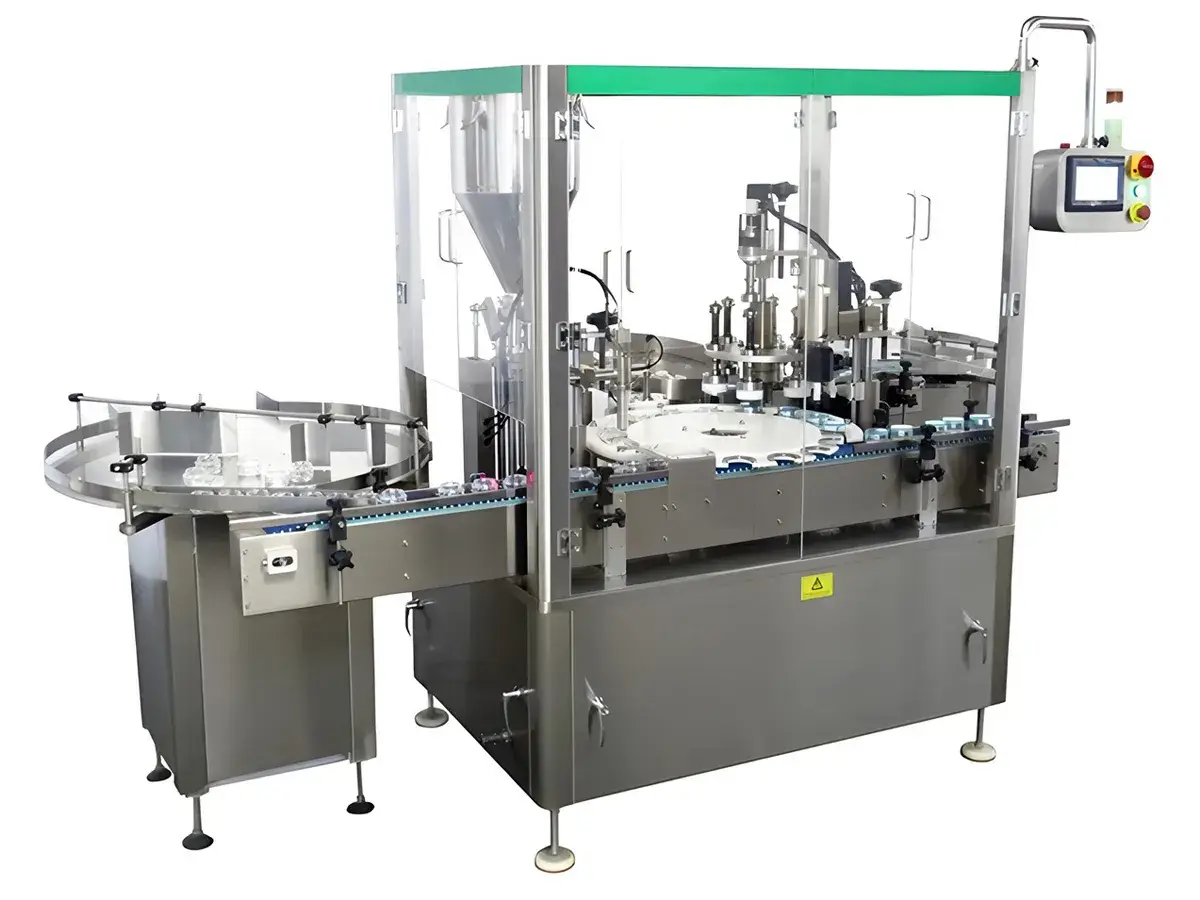

Personal Care & Cosmetic Filling Line

Automatic filling, capping and labeling system for essential oil, cream, lotion, and healing jelly

Key Specifications
  • Filling Accuracy: ≤±1% (30ml)
  • Production Capacity: 30-40 BPM (Bottles Per Minute)

This personal care and cosmetic filling production line is specifically engineered for high-viscosity products such as creams and pastes, integrating filling and capping into a seamless, fully automated workflow. Utilizing advanced piston or peristaltic pump filling systems, the filling machine ensures high precision and drip-proof performance while strictly adhering to GMP hygiene standards. Featuring PLC and touch screen (HMI) control, it offers a compact design, flexible operation, and rapid changeover, providing a highly efficient automation solution for the cosmetic and pharmaceutical industries.

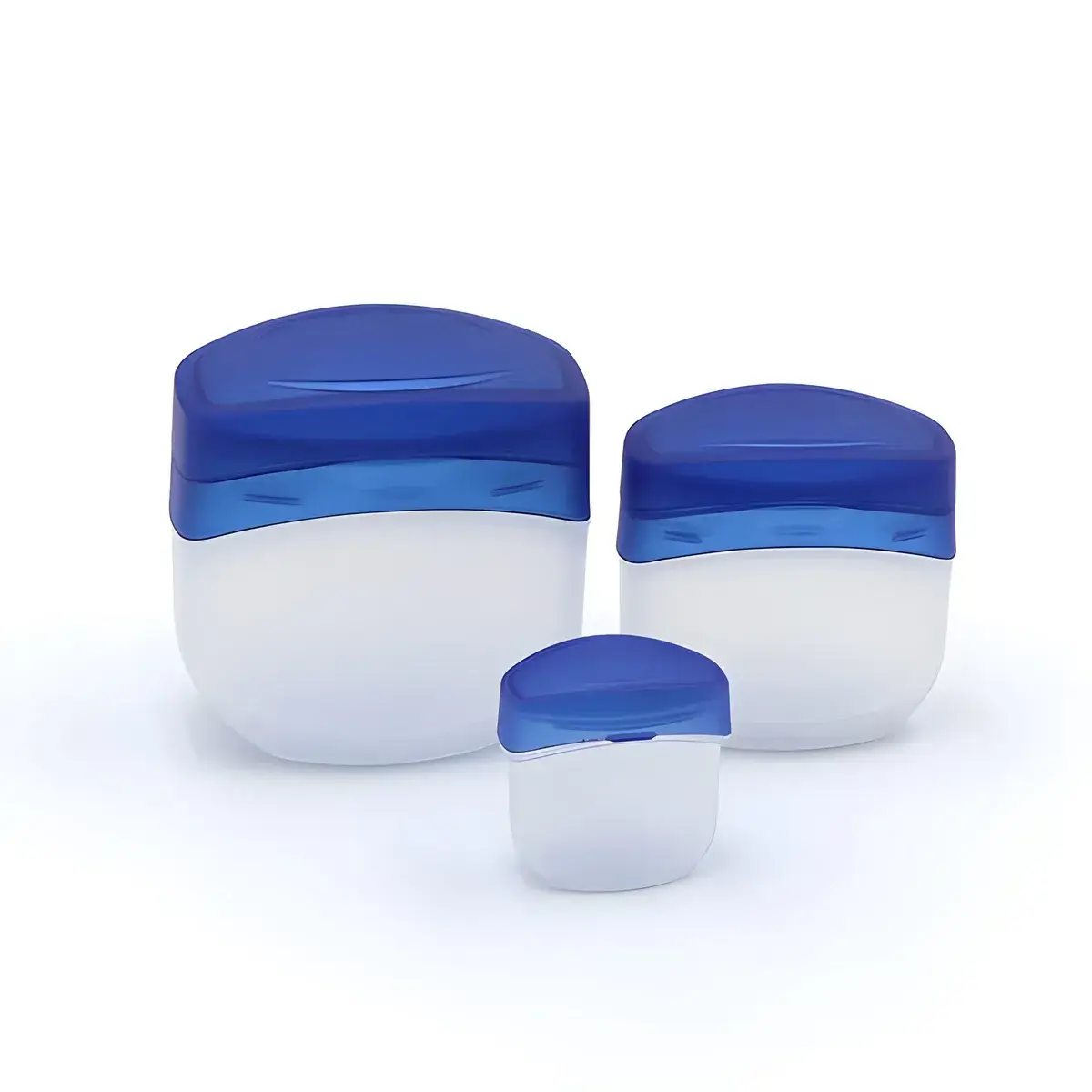

Application
Parameters
Model NP-MFC Series
Applicable Bottles Customized
Output Capacity 30-40 bpm
Filling Accuracy ≤±1%(30ml)
Filling Range 5ml to 120ml
Filling Nozzles 1 to 4 nozzles
Capping Heads 1 to 2 heads
Voltage 220V/50Hz (Customized Optional)
Auto-Capping Rate ≥99.9%
Auto-Stopper Rate ≤99.9%
Air Consumption 1.3 m3/h 0.4-0.8Mpa
Power 2.5KW
Weight 700KG
Size Refer to layout

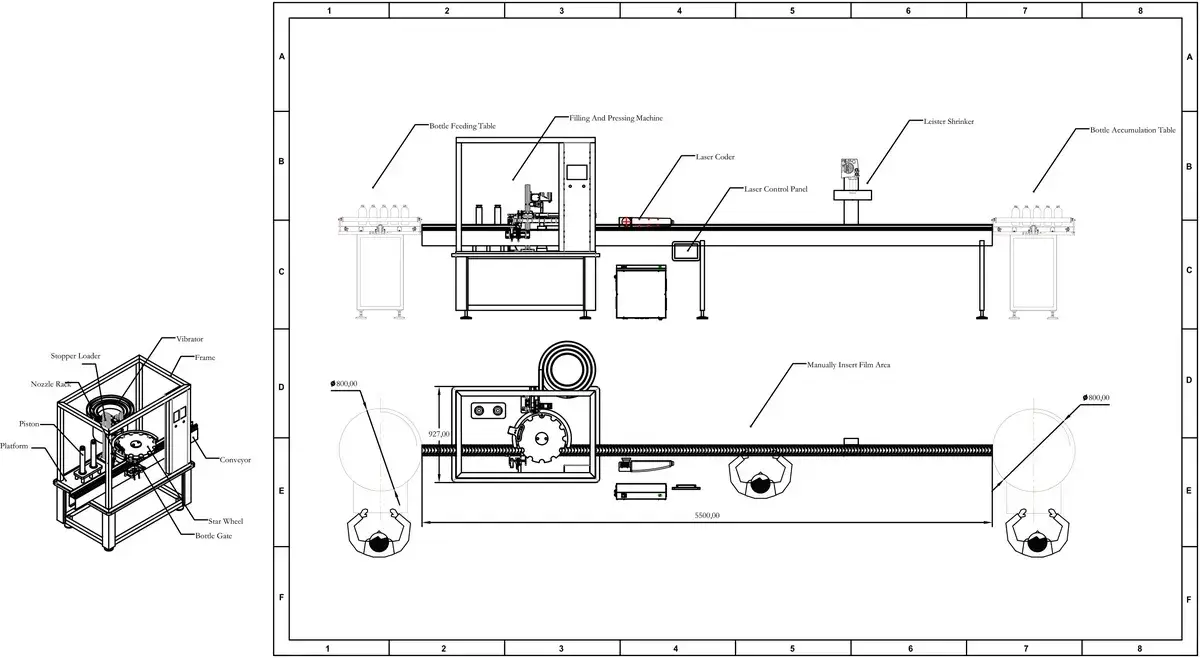

Process Flow Chart
Process Flow Chart

For over a decade, NPACK has been a liquid packaging machine manufacturer specialized in the design and production of automated liquid filling lines. We provide comprehensive turnkey solutions—integrating bottle washing, liquid filling, capping and labeling for global manufacturers across food & beverage, cosmetics, personal care, pharmaceutical, and chemical industries
