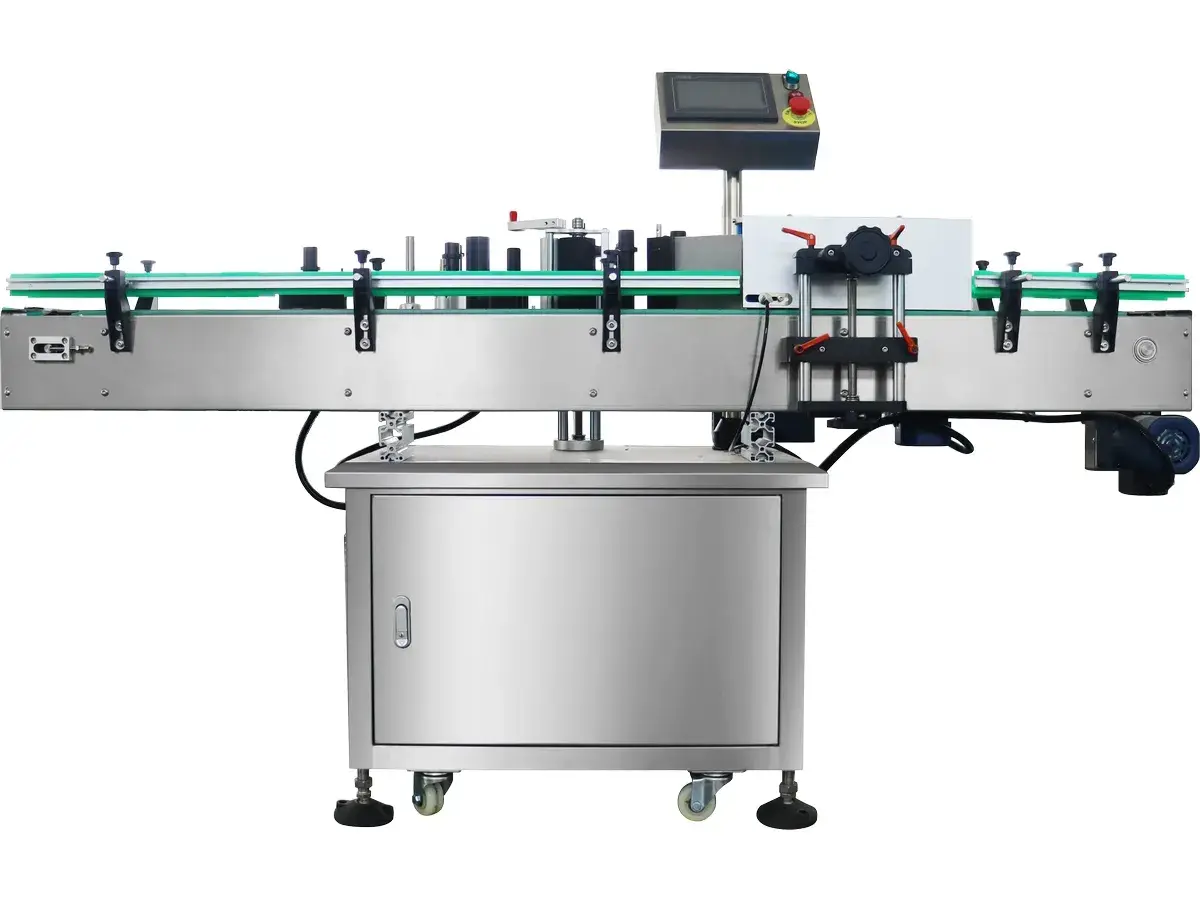

Automatic Round Bottle Labeling Machine
Wrap-around labeling machine for applying labels on cylindrical containers
The automatic round bottle machines are engineered for cylindrical containers and support full-wrap or half-wrap labeling, applicable to food, beverage, cosmetics and pharmaceutical industries. Equipped with PLC control and touch screen, its labeling precision is up to ±1mm and capacity up to 120-250 BPH, delivering stable and efficient performance. The round bottle labeler is constructed from 304 stainless steel and CE certified. Vision inspection and label counting functions are optional, to meet the industrial packaging line requirements.
Application
Parameters
| Model | |
| Capacity | 120-250BPM (Depending on bottle sizes and label size) |
| Accuracy | ±1mm |
| Bottle Diameter | 25-120mm Or Customized |
| Bottle Height | 25mm ~300mm Or Customized |
| Label Size | 10mm ~150mm 15~300mm Or Customized |
| Label Roll | I.D.:76mm O.D.: 320(Max.) |
| Weight | 200KG |
| Power | 550W 220VAC 1P |
Features
- Equipped with stepper/servo motor drive, anti-deflection label guiding and anti-slip traction structures to achieve precise, continuous and stable labeling.
- Allow for standalone use or seamless integration with other packaging equipment, adaptive to different production layouts.
- Installed with photoelectric detection, “No Bottle, No Labeling”, automatic label correction, reducing label waste, avoiding label missing or incorrect labeling and improving production efficiency.
- Features label counts, power-saving mode, output setting and parameter protection functions, helping optimize production process.
