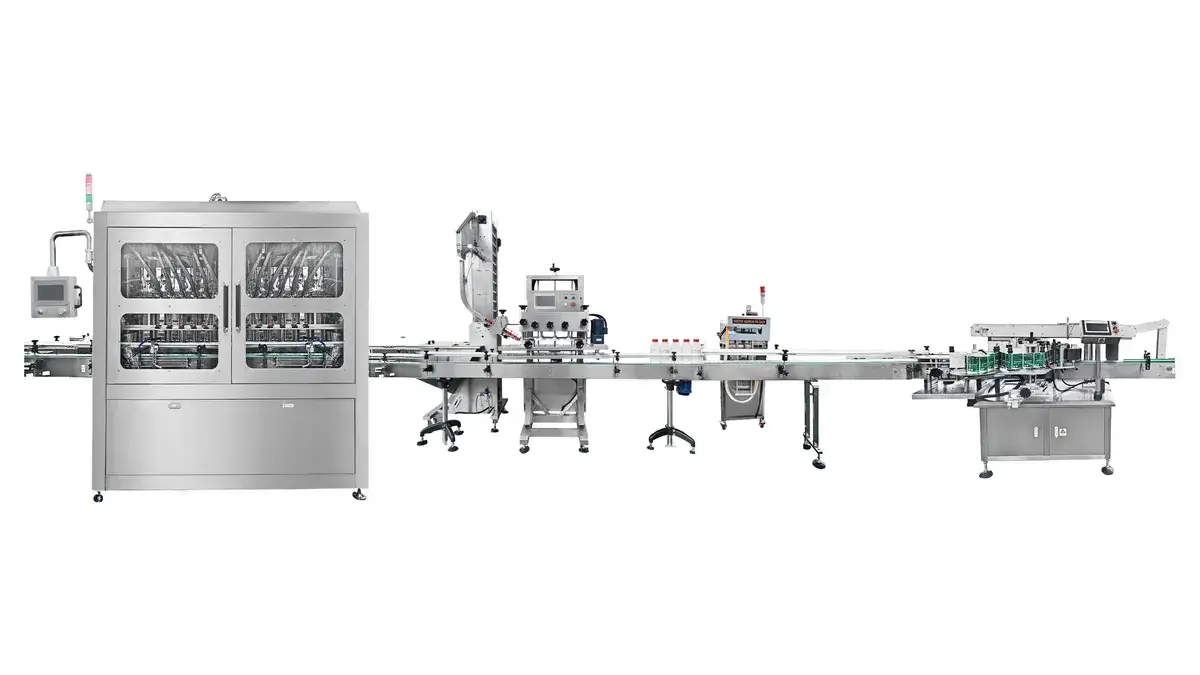

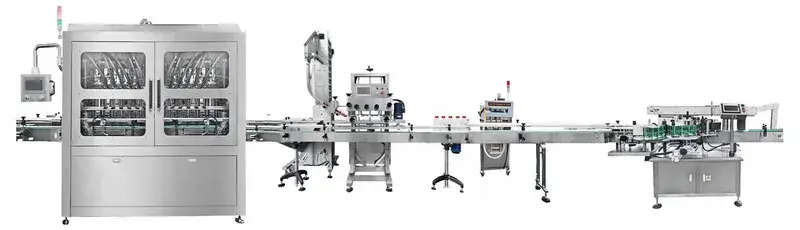

Household & Daily Chemical Filling Line
Automatic filling, capping and labeling system for shampoo, liquid soap, detergent, and household cleaners
- For filling volume ≤ 1000ml: Accuracy ±2–3ml/g
- For filling volume ≤ 5000ml: Accuracy ±3–5ml/g
- Production Capacity: 720–7200 BPH (Bottles Per Hour)

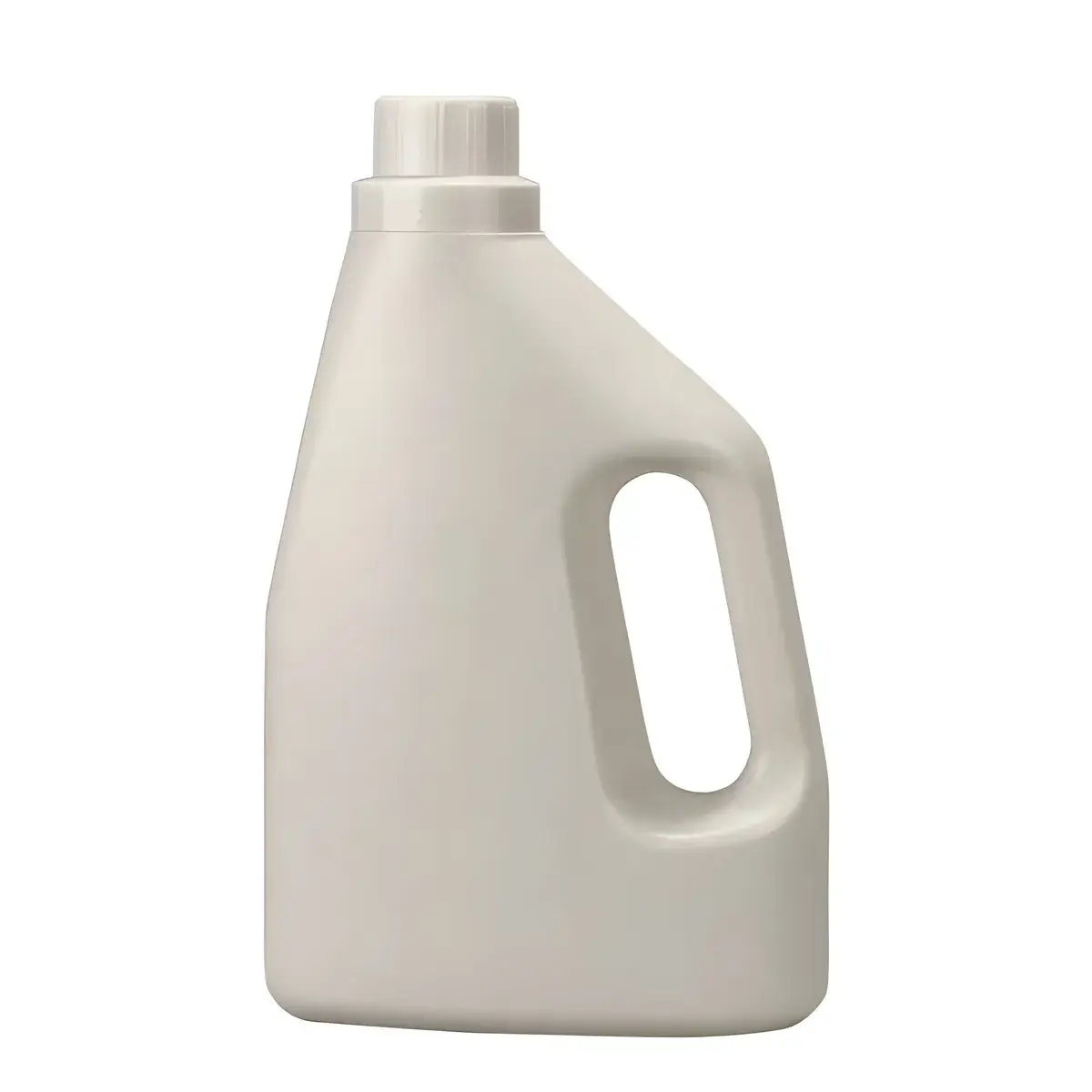

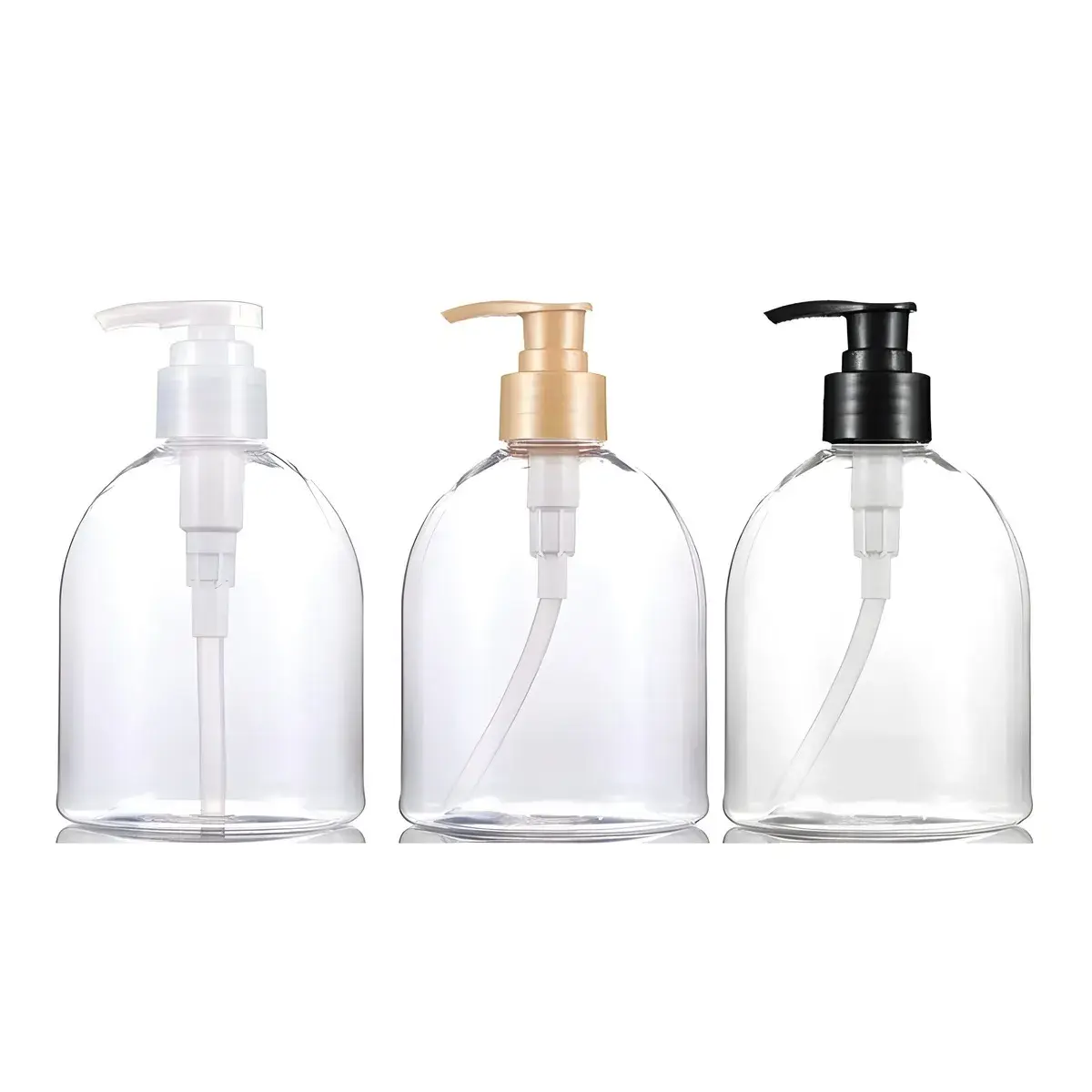

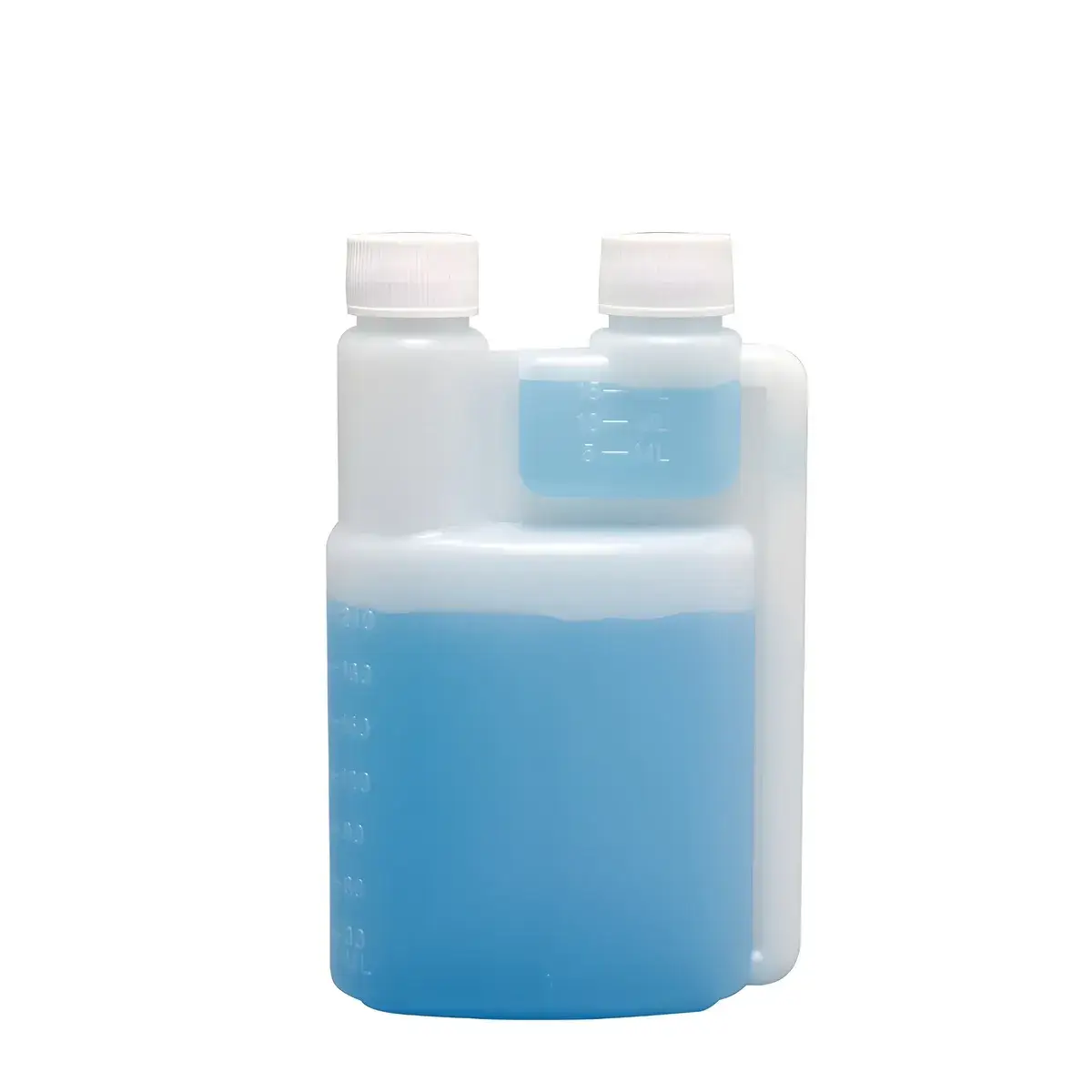

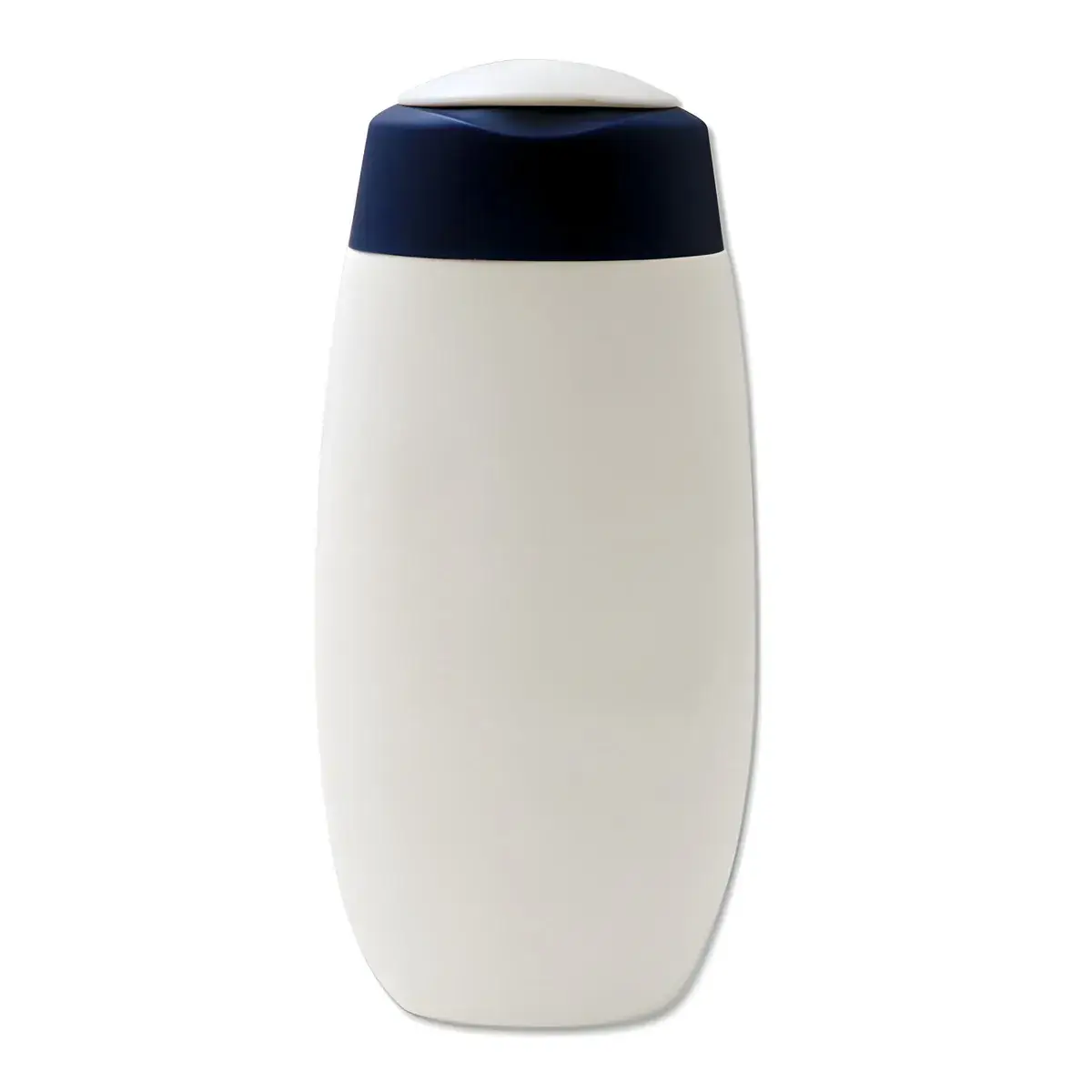

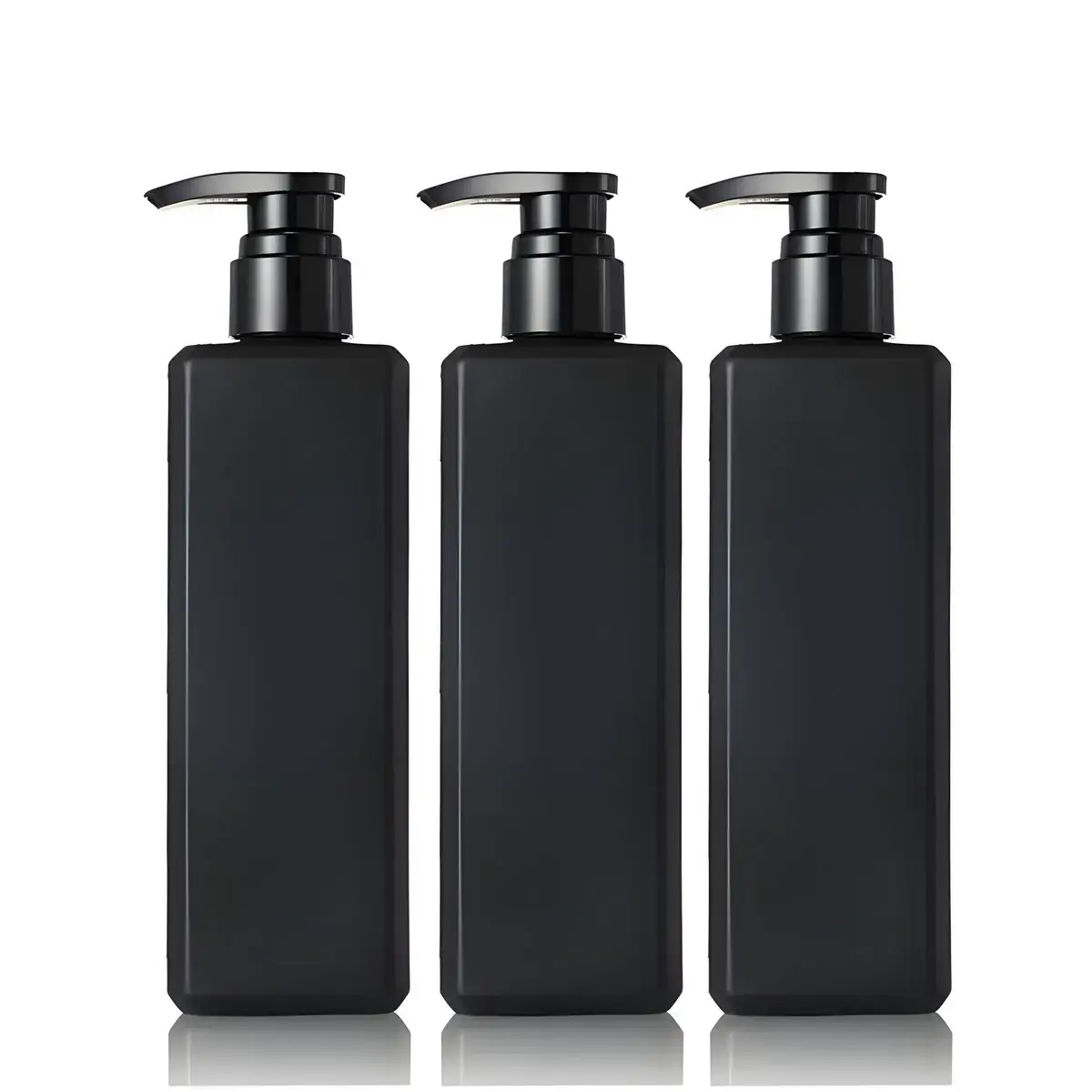

Designed specifically for medium-to-high viscosity products such as body wash/shower gel, shampoo, lotions, and detergents, this household & daily chemical filling line utilizes stable and reliable piston filling technology to achieve a For filling volume ≤ 1000ml: Accuracy ±2–3ml/g, For filling volume ≤ 5000ml: Accuracy ±3–5ml/g and support 2–20 anti-drip nozzles, making it suitable for PET, HDPE, and glass bottles across various filling capacities.
The entire line features a SUS304 stainless steel frame and SUS316L contact parts, complying with GMP hygiene standards for exceptional durability and ease of cleaning. Equipped with an advanced PLC + touch screen HMI, it allows for intuitive parameter adjustments, precise volume control, and "No Bottle, No Fill" detection. This all-in-one solution seamlessly integrates filling, capping, and labeling for maximum efficiency. It is your ideal choice for home care and daily chemical industries.
| Filling Nozzles | 2-20 heads (optional) |
| Filling Speed | about 720-7200bottles/hour |
| Filling Accuracy | Filling volume≤1000ml, filling accuracy ±2~3ml/g Filling volume ≤5000ml, filling accuracy ±3~5ml/g |
| Filling Form | Servo piston filling |
| Program Control | PLC & Touch Screen |
| Material Contact Part | 304/316 stainless steel |
| Air Pressure | 0.6-0.8MPa |
| Feed Tank Capacity | 150L (depends on the machine size) |
| Protection Device | Filling material shortage shutdown and alarm |
