Automatic Pump Filling Machine
Multi-head liquid filling machine with gear, rotary lobe or peristaltic pump for various viscous liquids
The automatic filling machine achieves high-precision and drip-free volumetric filling via accurate control of pump rotation or stroke, applicable to viscous liquid with good fluidity. The filling machine can be installed with gear pump, rotary lobe pump or peristaltic pump for liquid products across many different industries, such as daily chemical, food, pharmaceutical, lubricating oil and other industries.
Its stable and efficient liquid transport method efficiently solve the issue that traditional filling process struggled, such as low filling precision and poor production output. The automatic pump filler provides reliable automatic filling solution for various liquid production lines.

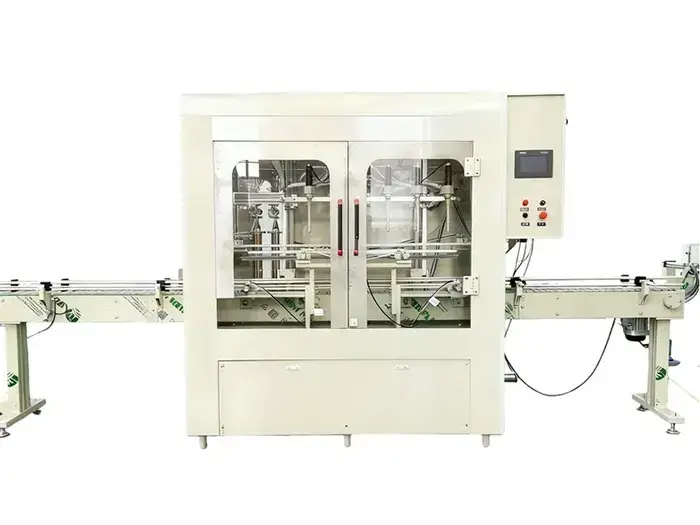

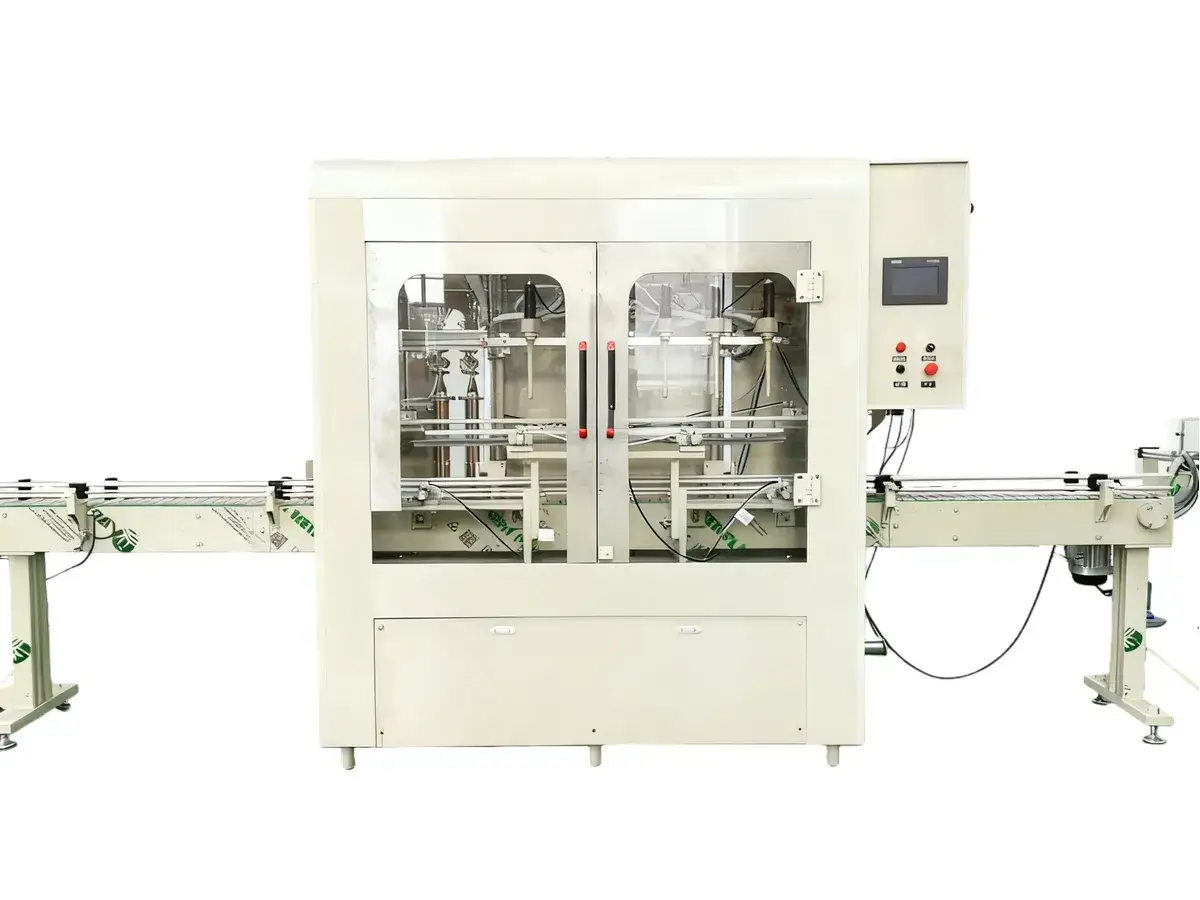

Gear pump liquid filling machines utilize servo drive and precise metering technology, designed for efficient filling of low viscosity liquids. Tool-less easy and quick changeover is available to suit containers of various volumes from 10 ml to 5000ml.
The pump filling equipment supports the container feeding and discharging through a turntable and ensures stable transportation. All contact parts are made by 316 stainless steel, compliable with GMP standard, ensuring a hygienic filling process. The operation HMI is intuitive and user-friendly, facilitates easy operation and precise control. The gear pump liquid filling machine is a perfect choice for food, beverage, cosmetics, pharmaceutical and chemical industries.
| Filling Volume | 10-5000ML (Filling volume can be set via the touch screen) |
| Filling Accuracy | ±0.5% |
| Filling Speed | 30-120 BPM (taking 2L as an example) |
| Working Air Pressure | 6-7 kg/cm² |
| Working Voltage | 220V (customizable) |
| Machine Weight | 750kg (approx.) |
-

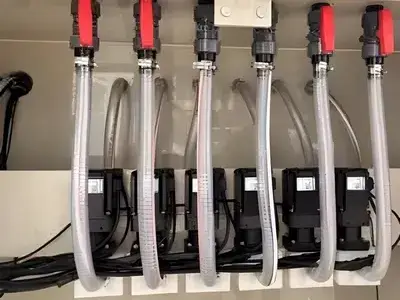

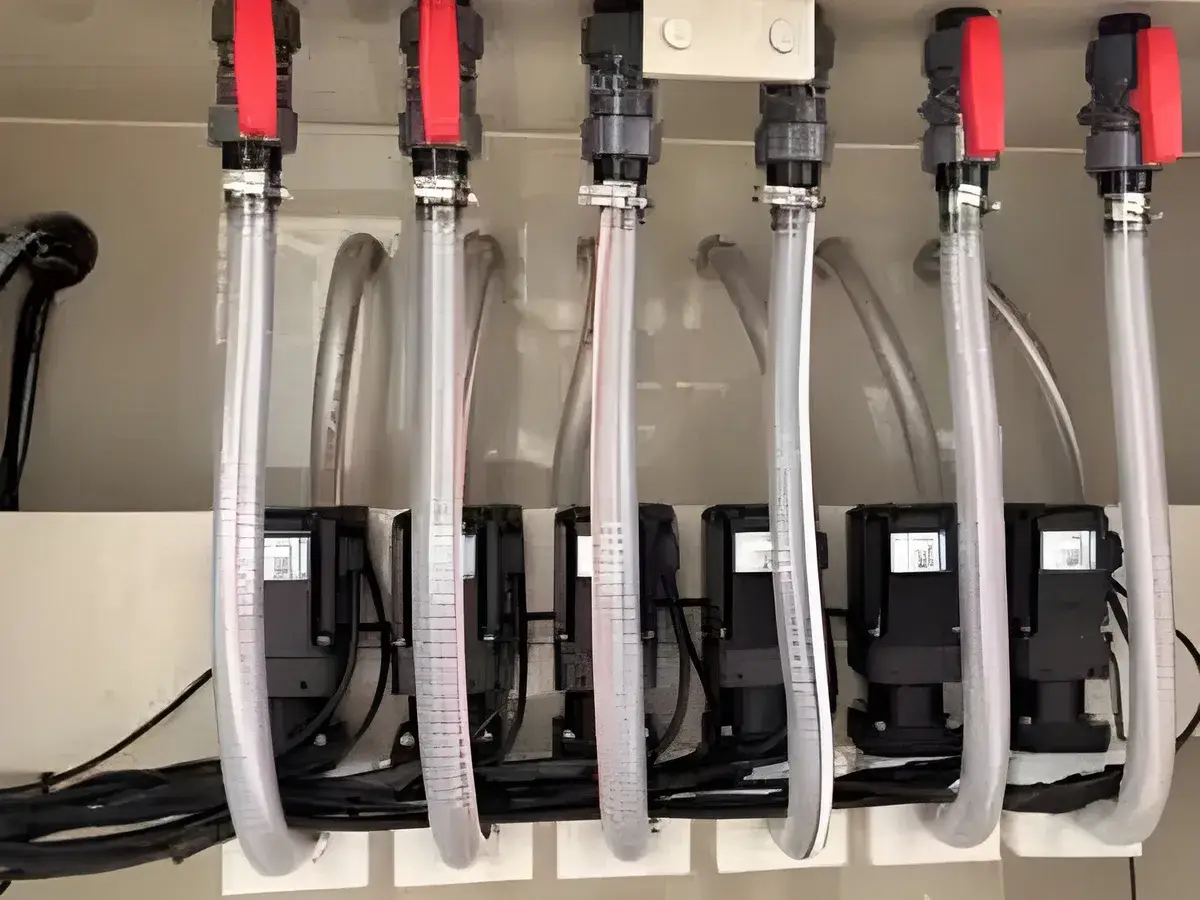

Gear PumpEnsures precise metering and stable delivery of liquids. By creating a fixed volume through gear rotation, it achieves accurate volumetric filling while ensuring a smooth and pulse-free flow.
-

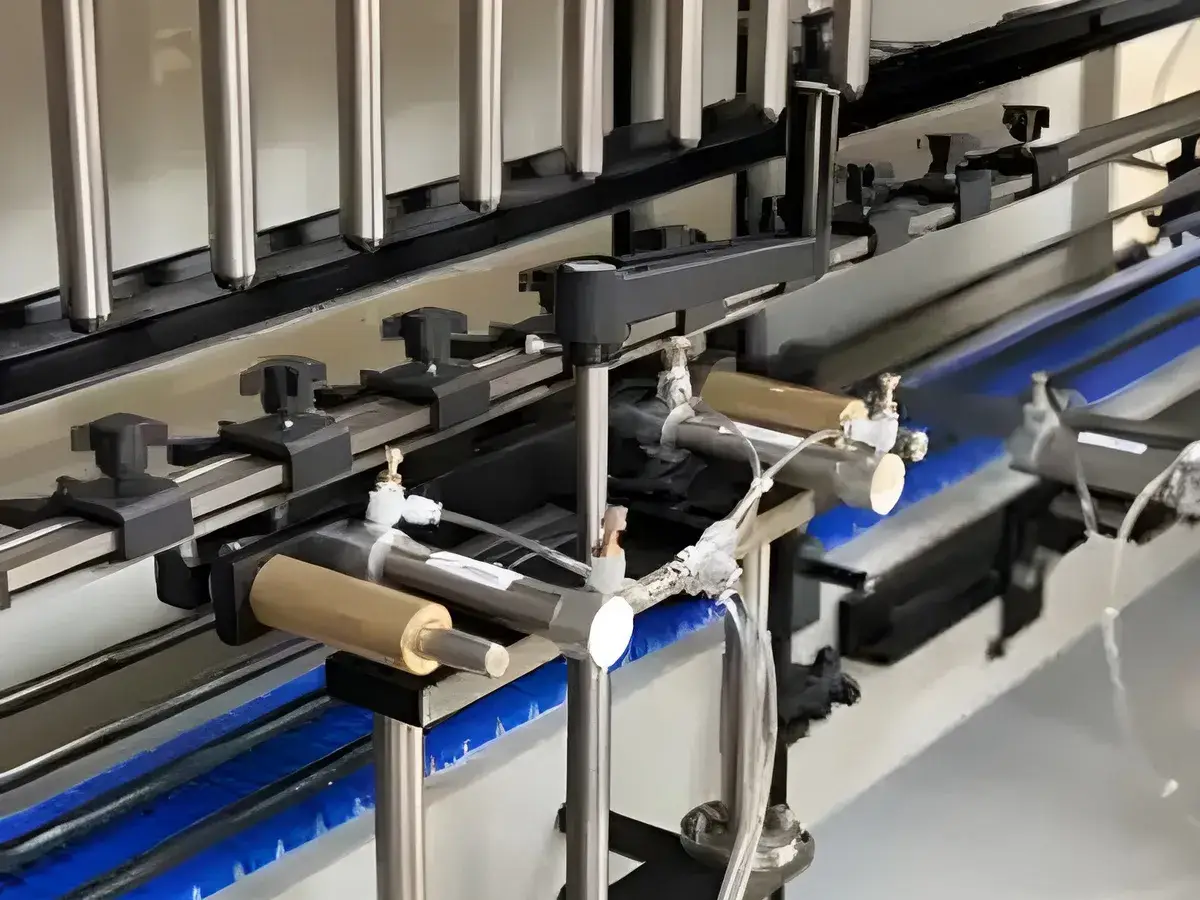

304/316 Stainless Steel Filling HeadGuiding, sealing, and anti-drip. It is responsible for smoothly guiding the liquid delivered by the gear pump into the container, sealing the bottle mouth, and performing an instantaneous shut-off at the completion of filling to ensure no liquid drips.

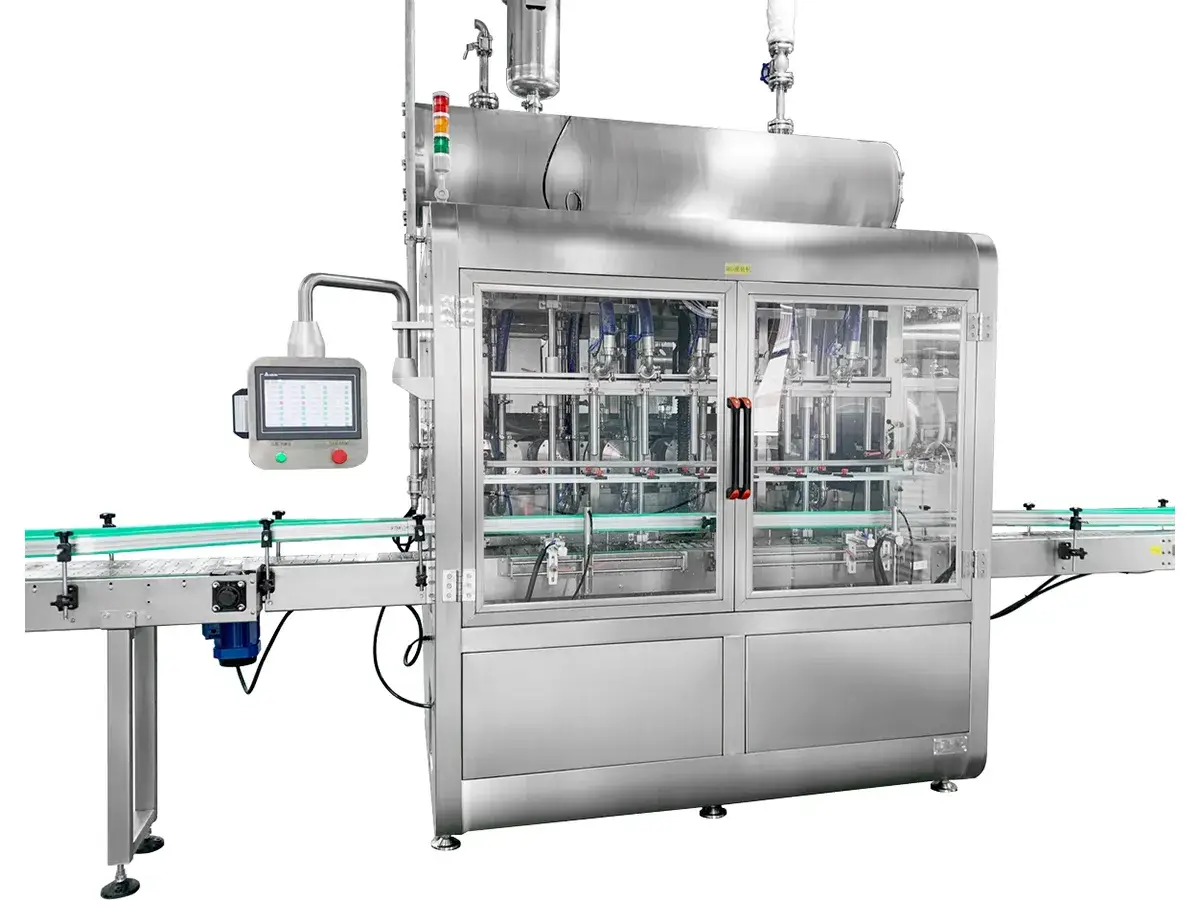

The rotary lobe pump liquid filling machine is designed for high viscosity liquids and materials with small particulates (up to 10mm).
Equipped with stainless steel lobe pump driven by servo motor, it offers filling accuracy maintained at ±2~3ml for volumes up to 1000ml, and ±3~5ml for volumes up to 5000ml. The pump liquid filler complies with CE standard, is outfitted with PLC touch screen to offer quick parameters adjustment and automatic bottle detection. 2~20 filling heads are configurable to meet filling range from 10 to 5000ml. The high-precision filling machine is your ideal choice for filling liquids and pastes across food, cosmetics, chemical and pharmaceutical industries.
| Model | |
| Filling Volume | 10ml-5000ml |
| Machine Construction Material | 304SS |
| Power | 3.5 KW |
| Voltage | 220V ,50HZ,1Phase (can be custom made) |
| Air Pressure | 0.6MPa-0.8MPa |
| Filling Accuracy | Filling volume≤1000ml, filling accuracy ±2~3ml Filling volume ≤5000ml, filling accuracy ±3~5ml |
-

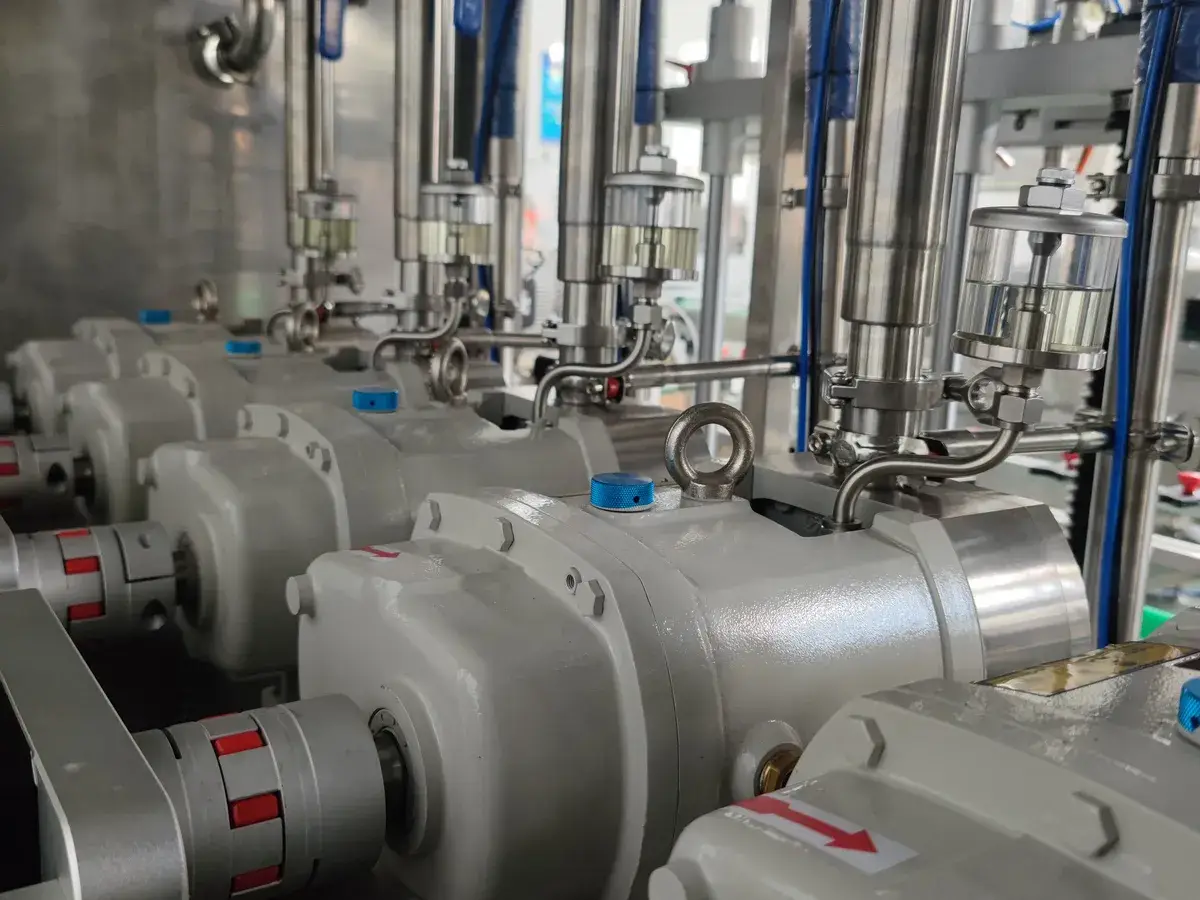

Rotary Lobe PumpAllows for gentle delivery of products by extremely-low shear force, to prevent damage to the products. The dead-zone-free design facilitates easy and thorough cleaning, making the filling machine conforms with food and pharma standards.
-
Food-grade Teflon hosesFeatures high-temperature and high-pressure resistance, to ensure safe and reliable liquid transportation under high temperature and pressure.
-

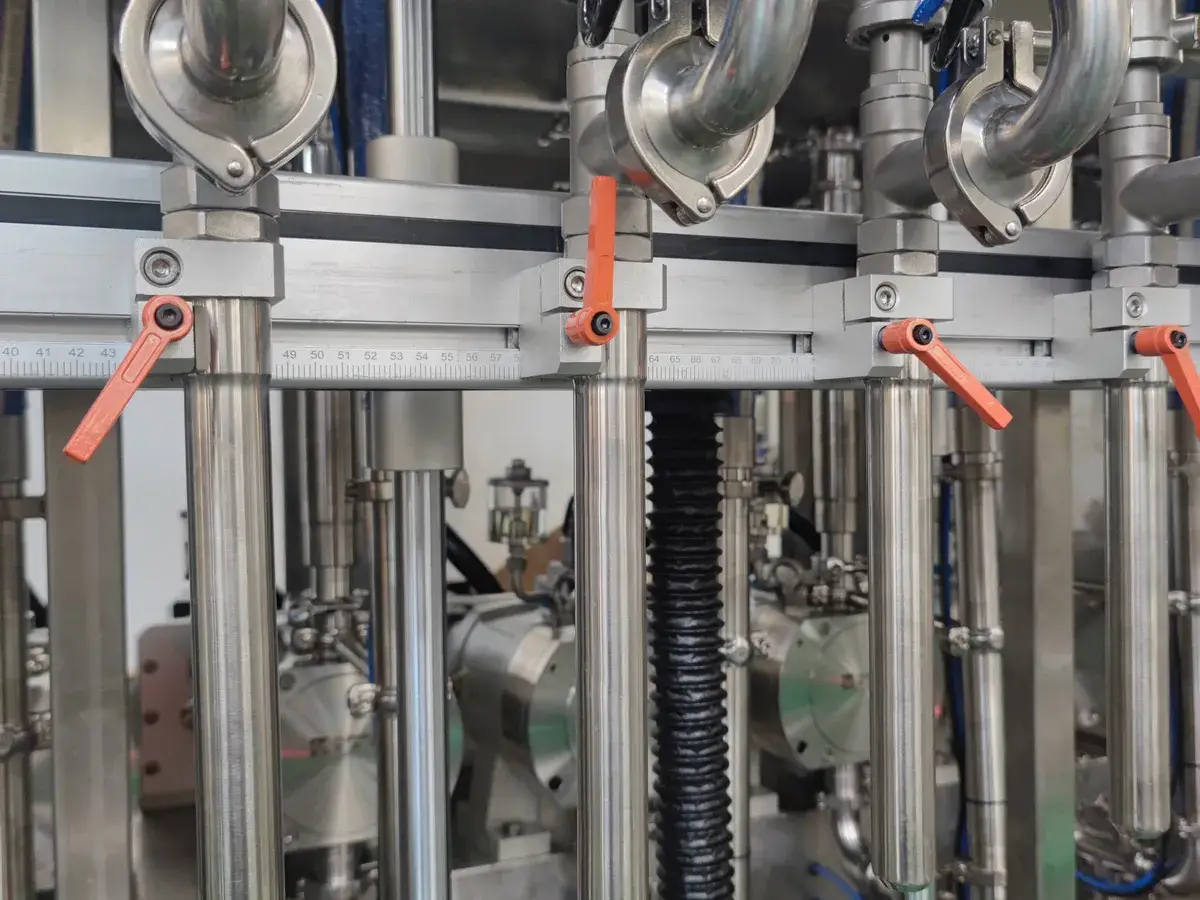

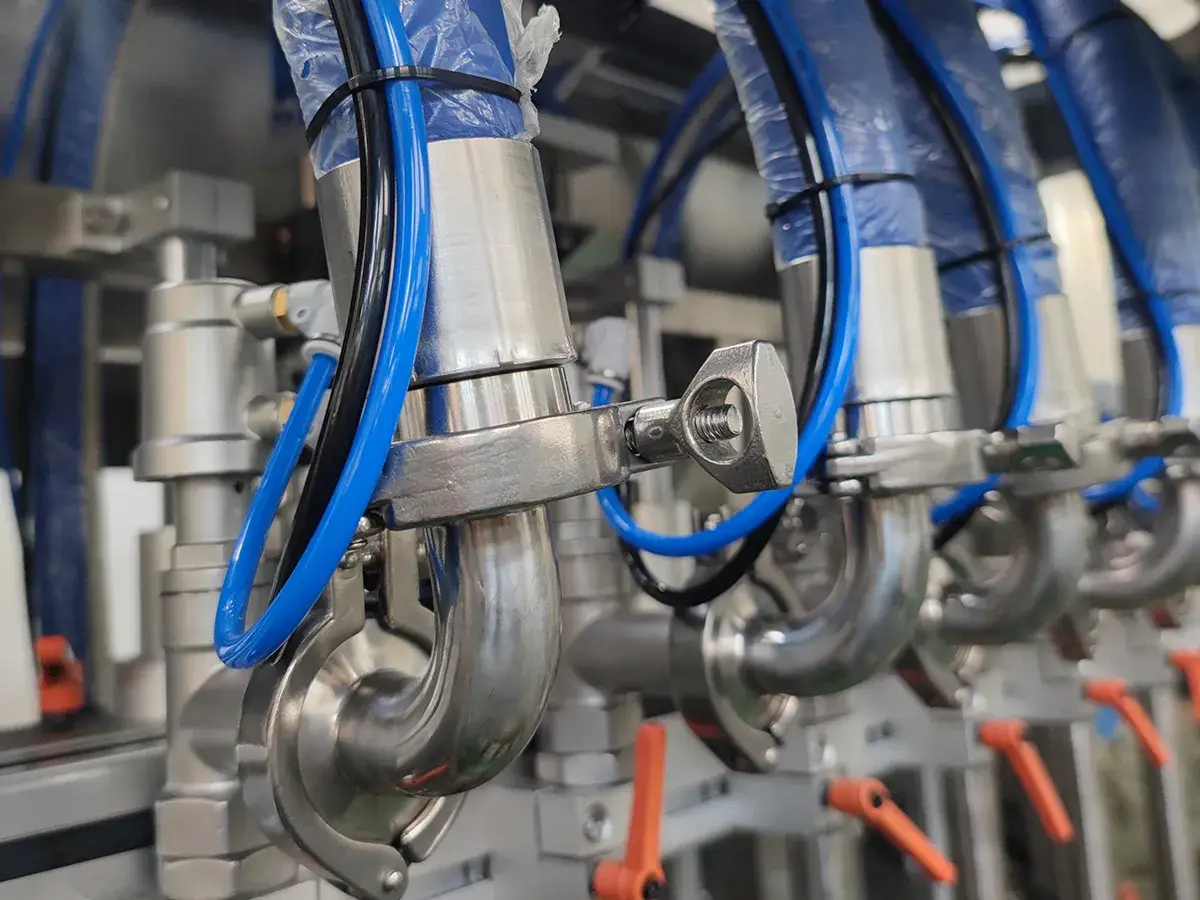

304/316 Stainless Steel Filling HeadEquipped with anti-drip nozzles and an adaptive lifting function, it achieves stable filling that is clean, drip-free, and foam-free.

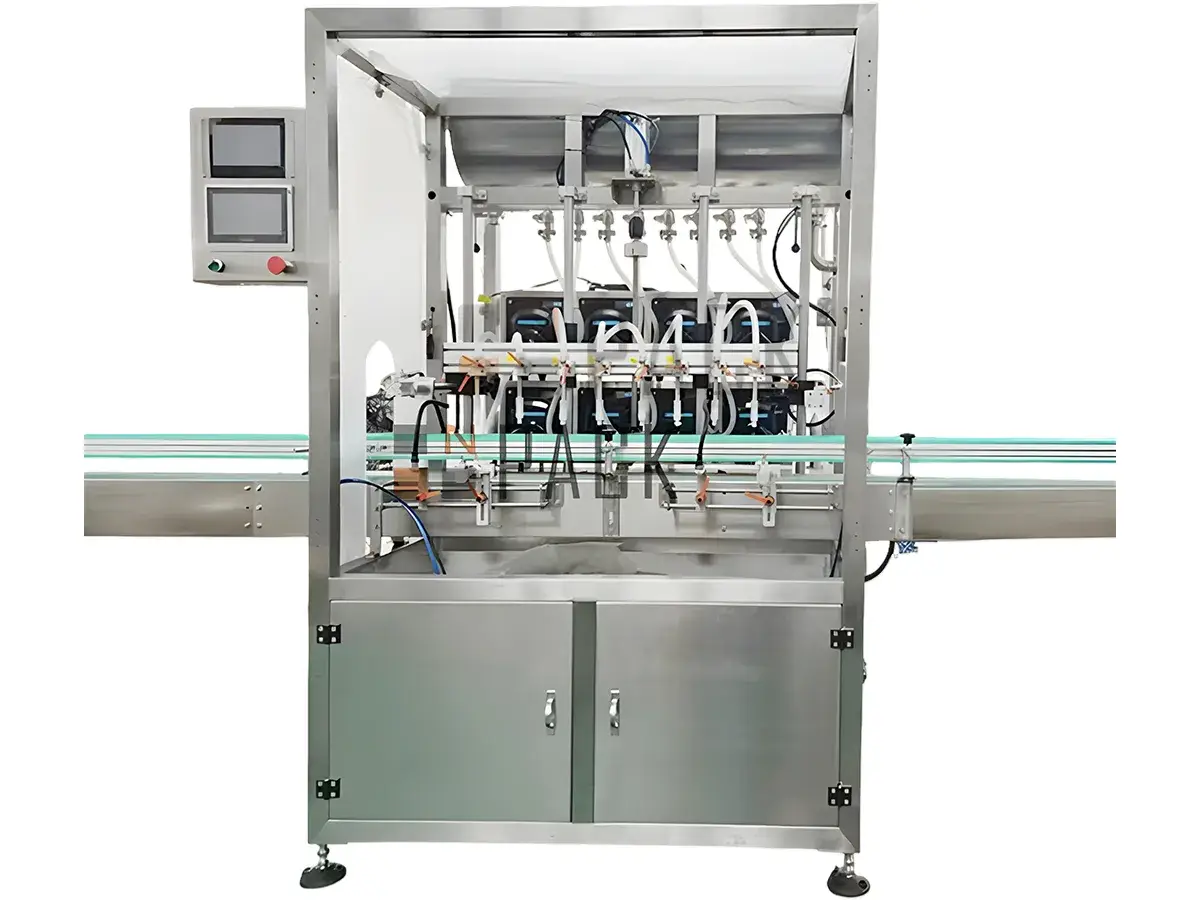

Peristaltic pump liquid filling machine features food-grade hoses to transport liquids, ensuring them are free of contamination and allowing for high-precision filling. Equipped with servo control and touch screen HMI, flexible filling speed adjustment and multi-station synchronous filling is achievable. The anti-splash diving nozzles and photoelectric detection function deliver a more efficient and stable production process. The automatic liquid filling system is installed with stainless steel frame, which is CE and RoHS certified, making it suitable for handling low-viscosity liquids without particulates, ideal for liquid filling applications with high sanitary requirements, including pharmaceutical, cosmetics, food, beverage industries and labs.
| Voltage | 110/220V 50-60HZ 2KW |
| Filling Pump | Peristaltic pump |
| Filling Volume | About 10-5000ml |
| Production Capacity | 20-24 BPM (based on 4 head) |
| Program Control | PLC + Touch screen |
| Air Pressure | 0.6-0.8Mpa |
-

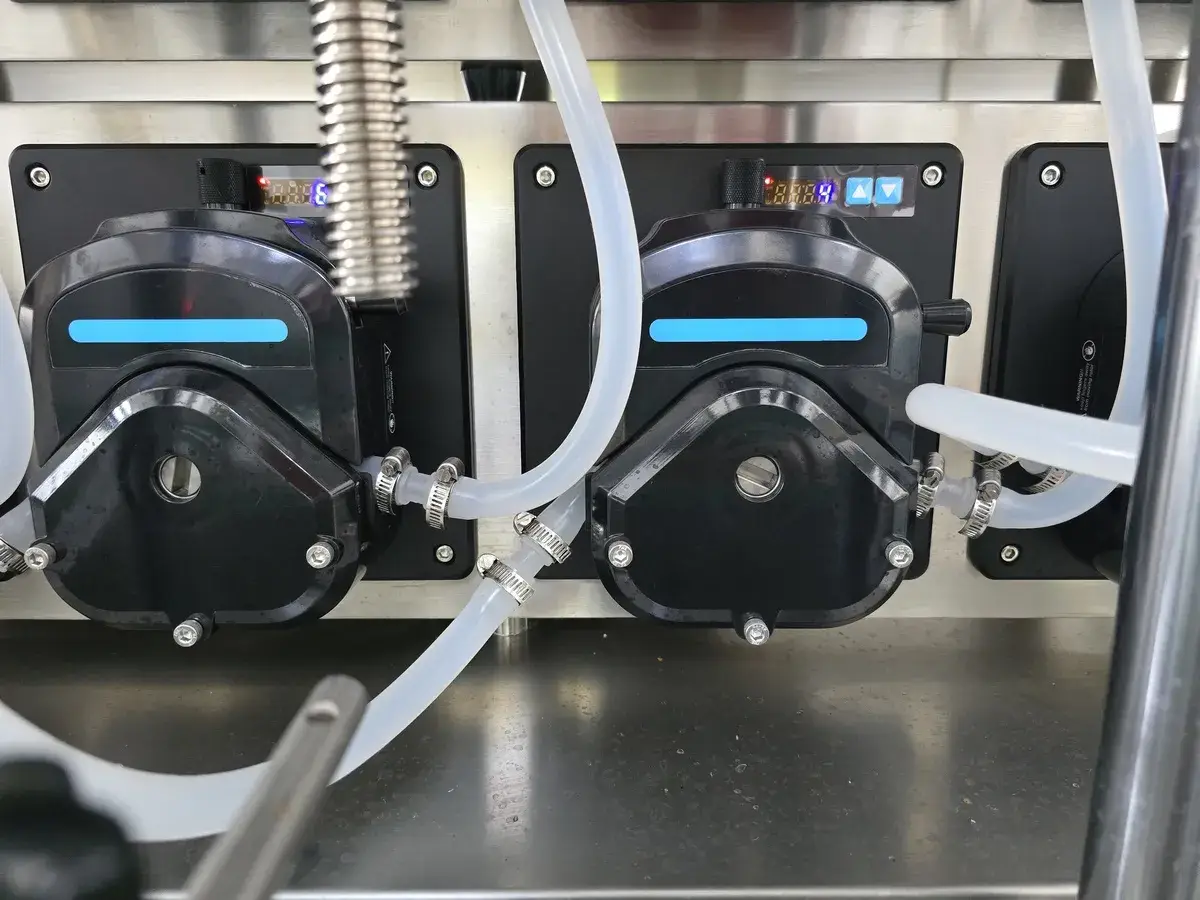

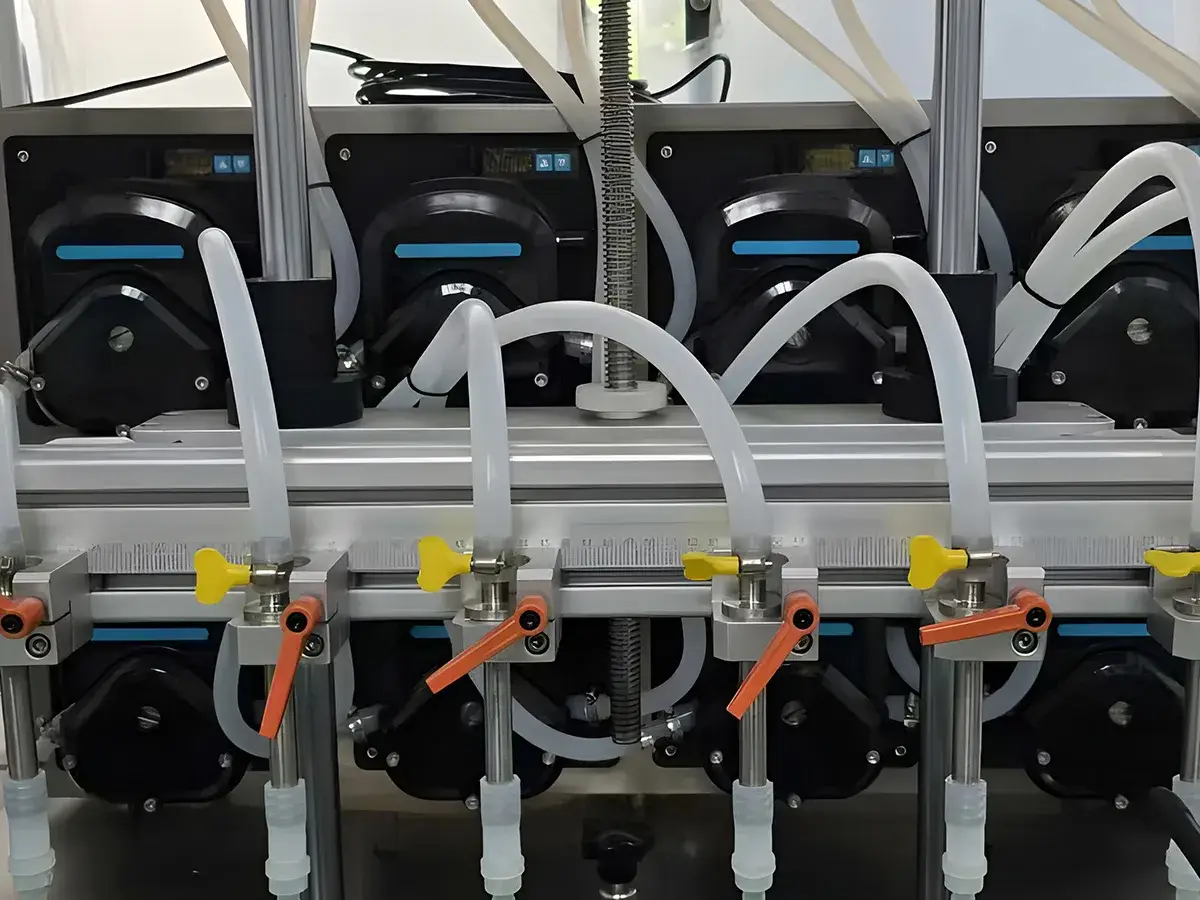

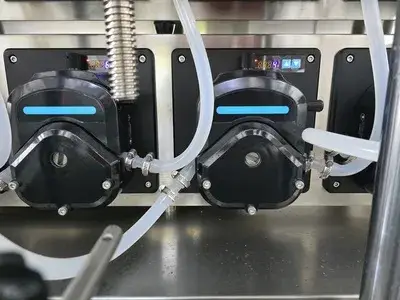

Peristaltic PumpSqueezes the hoses to precisely transport the liquid, achieving contamination-free and easy-to-clean hygienic filling process.
-
Food-Grade HosesWork as the passage of squeezed liquid products, ensuring the filling process is hygienic, contamination-free and easy-to-clean.
