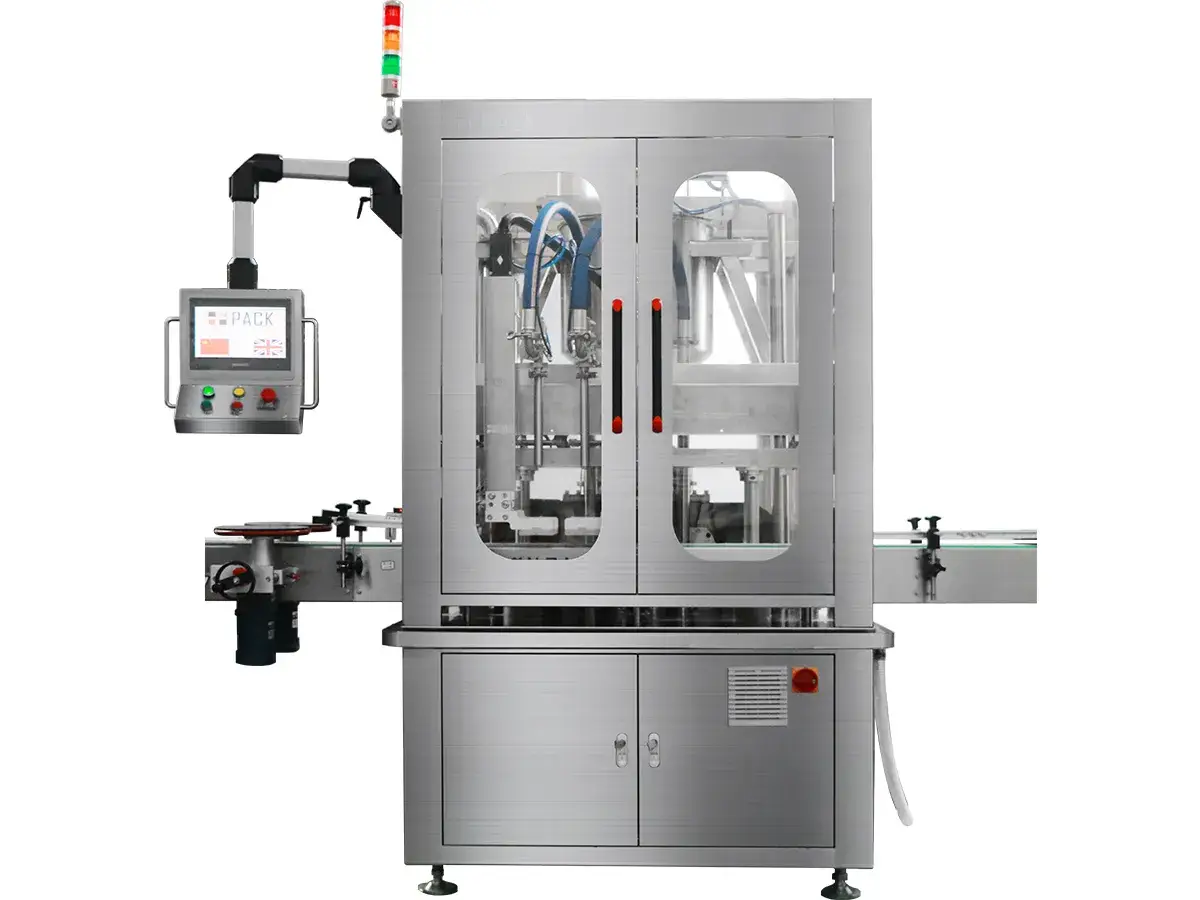

Automatic Tracking Filling Machine
Continuous filling system for high-speed non-stop filling of liquids and pastes with servo synchronization
The automatic tracking filling machine is designed with servo drive and synchronous tracking technology to enable the synchronous movement of filing nozzles and bottles, achieving non-stop high-speed filling.
It can be configured with 2 to 4 nozzles, achieving a production capacity of 1800-6000 bph. The filling accuracy is maintained at ±2~3ml for volumes up to 1000ml, and ±3~5ml for volumes up to 5000ml.
The automatic filler features a 304/316L stainless steel constructure, compliable with CE standards, making it hygienic and durable. The automatic tracking filling machine is equipped with PLC touchscreen, drip-free filling nozzles and multi-axis synchronous control, delivering efficient, sanitary and intelligent filling for a wide range of liquids and pastes, including honey, shampoo, sauce, etc.
The automatic tracking filling device is widely used in food, chemical, cosmetics and pharmaceutical industry. Its advanced automatic technique empowers the liquid manufacturers to maximize their production capacity while maintain a stable filling quality.
-

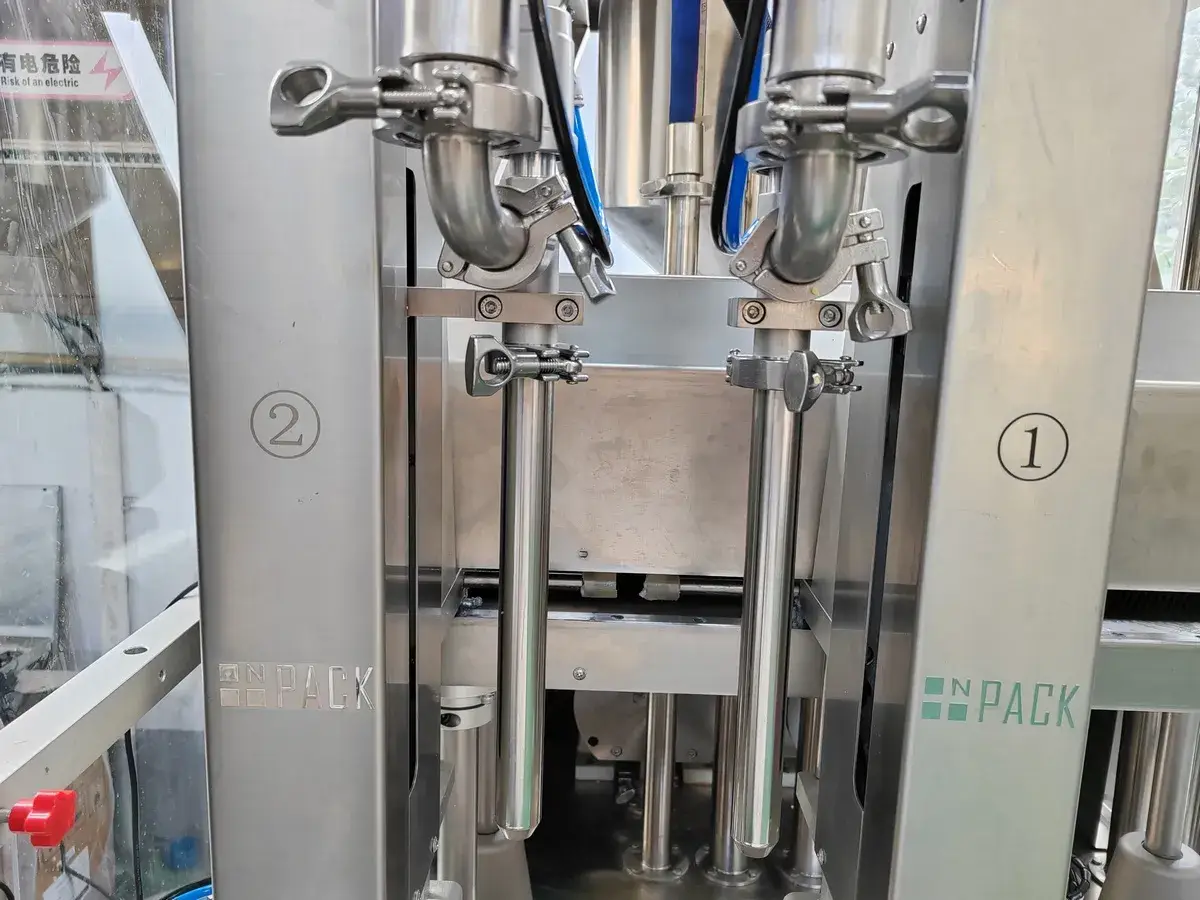

304/316 Stainless Steel anti-Drip Filling NozzleIs designed with functions of guiding positioning and an active suck-back to achieve clean, stable, and drip-free high-quality filling.
-

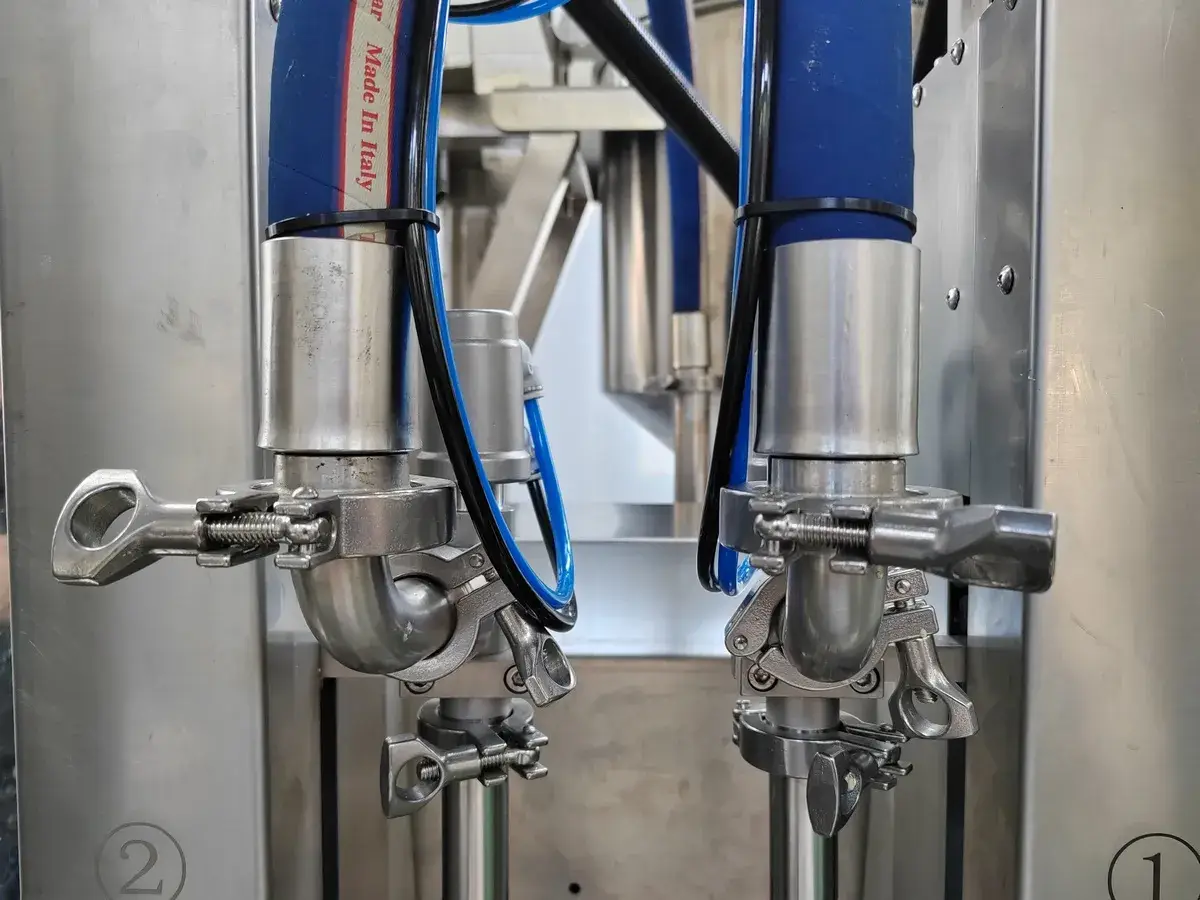

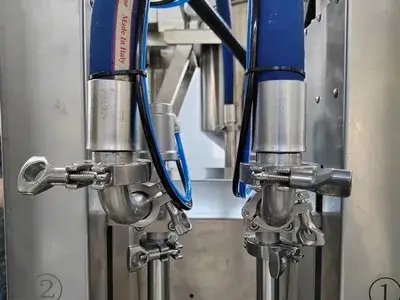

ESG ValveFeatures a dead-zone-free design for easy disassembly and precise sealing. It is compatible with various liquids, ensuring that the filling process is stable, reliable, hygienic, and efficient.
-

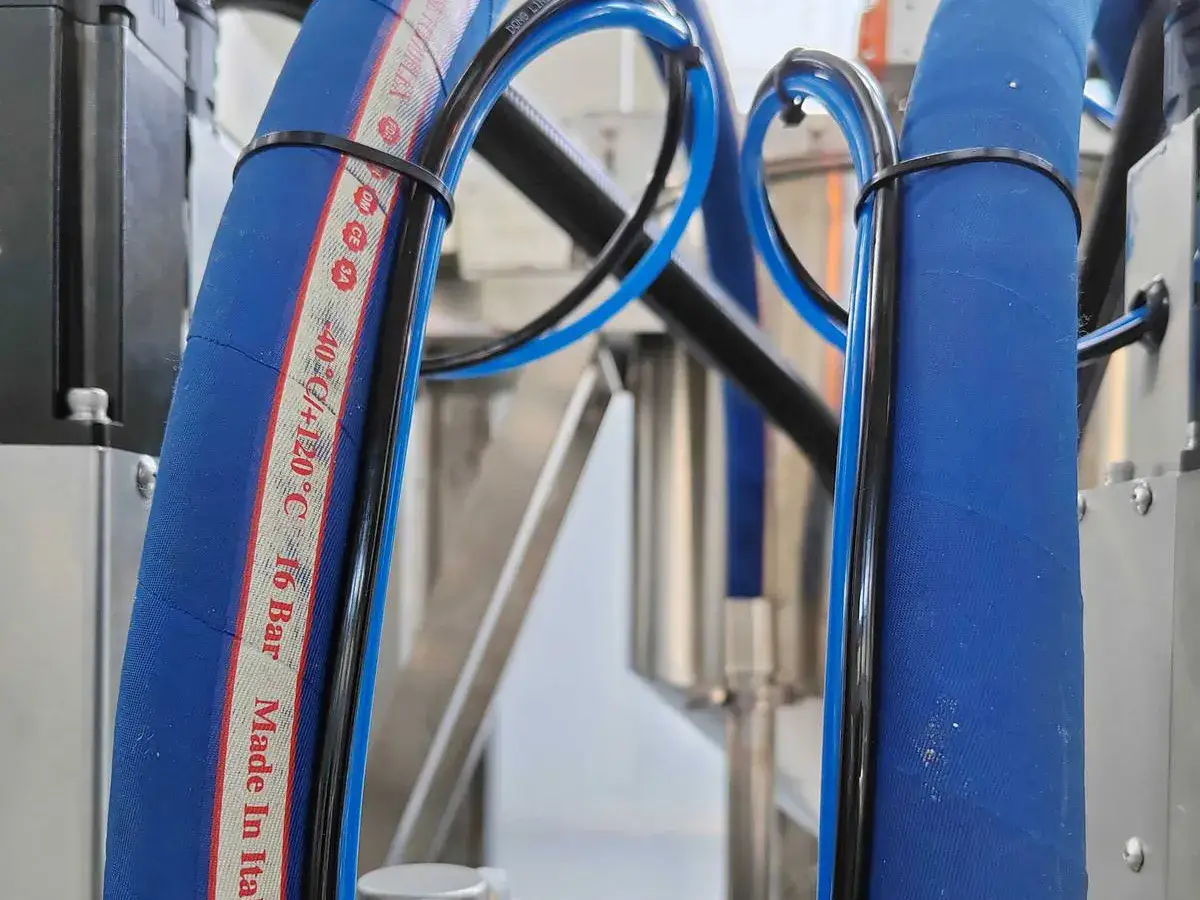

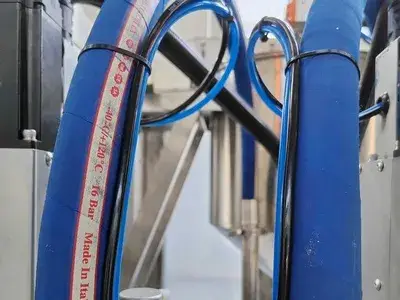

Food-Grade Teflon HosesFeatures high-temperature and high-pressure resistance, to ensure safe and reliable liquid transportation under high temperature and pressure.
| Model | |
| Filling Nozzles | 2-4 Nozzles |
| Production Capacity | 30 to 100BPM |
| Filling Volume | 50-1000ML |
| Power | 3KW to 6KW, 220/380VAC |
| Accuracy | Filling volume≤1000ml, filling accuracy ±2~3ml |
| Drive Type | Servo Motor |
| Interface | High-performance intelligent mechanical controllers, and advanced HMIs |
- Multi-axis synchronous filling design with 2-4 filling nozzles delivers 50% higher production capacity compared to traditional piston filling machine.
- Equipped with anti-drip filling nozzles and tracking filling technology, it achieves precise, drip-free performance, eliminating the need for a drip tray.
- Structured with 304/306 stainless steel machine framework and 316L stainless steel pistons and doses. All materials are certified.
- Installed with qualified parts from famous brand like SMC, Festo and Schneider.
- User-friendly design like portable HMI panel and one-button adjustment function for container size, facilitates easy and flexible manipulations.
- Equipped with 3 emergency stop buttons located at key positions like touch screen, product feeding port and rear part of the machine.
- Remote maintenance and software updates service available.
