Automatic Piston Filling Machine
Inline filling system with piston filler for low-to-high viscosity liquids and pastes

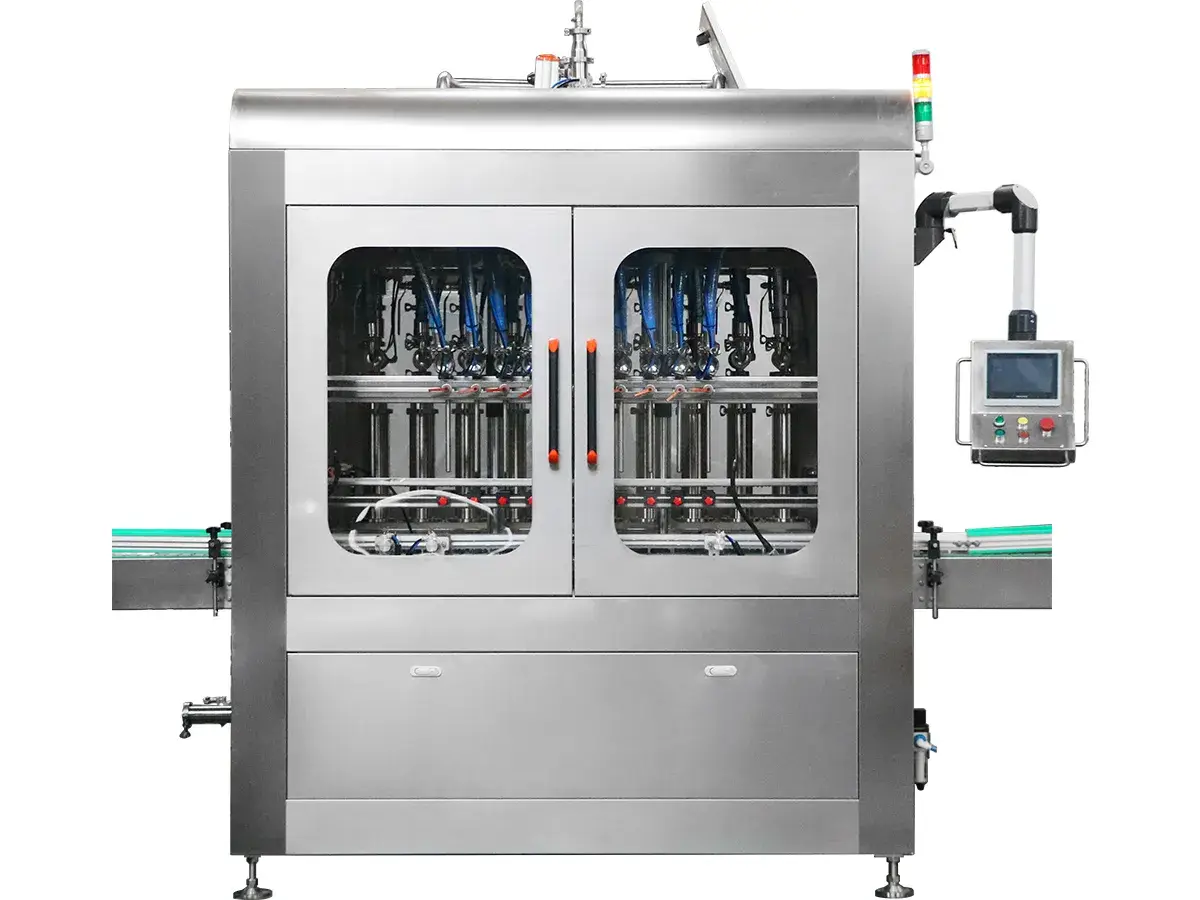

The automatic piston filling machine is designed for high-precision filling of a wide range of products, including low to high viscosity liquids, pastes, and materials with small particulates (up to 10mm). It offers a filling range of 100–5000ml and can be configured with 2 to 20 filling heads, achieving a production capacity of 720–7200 bottles per hour (BPH). The filling accuracy is maintained at ±2~3ml for volumes up to 1000ml, and ±3~5ml for volumes up to 5000ml.
This precise filler has passed CE certification and complies with EU safety standards. Its modular design enables easy and seamless integration with bottle sorting machine, bottle conveyor, and packaging unit, making it an ideal choice for your efficient, stable and automatic liquid filling line.
-

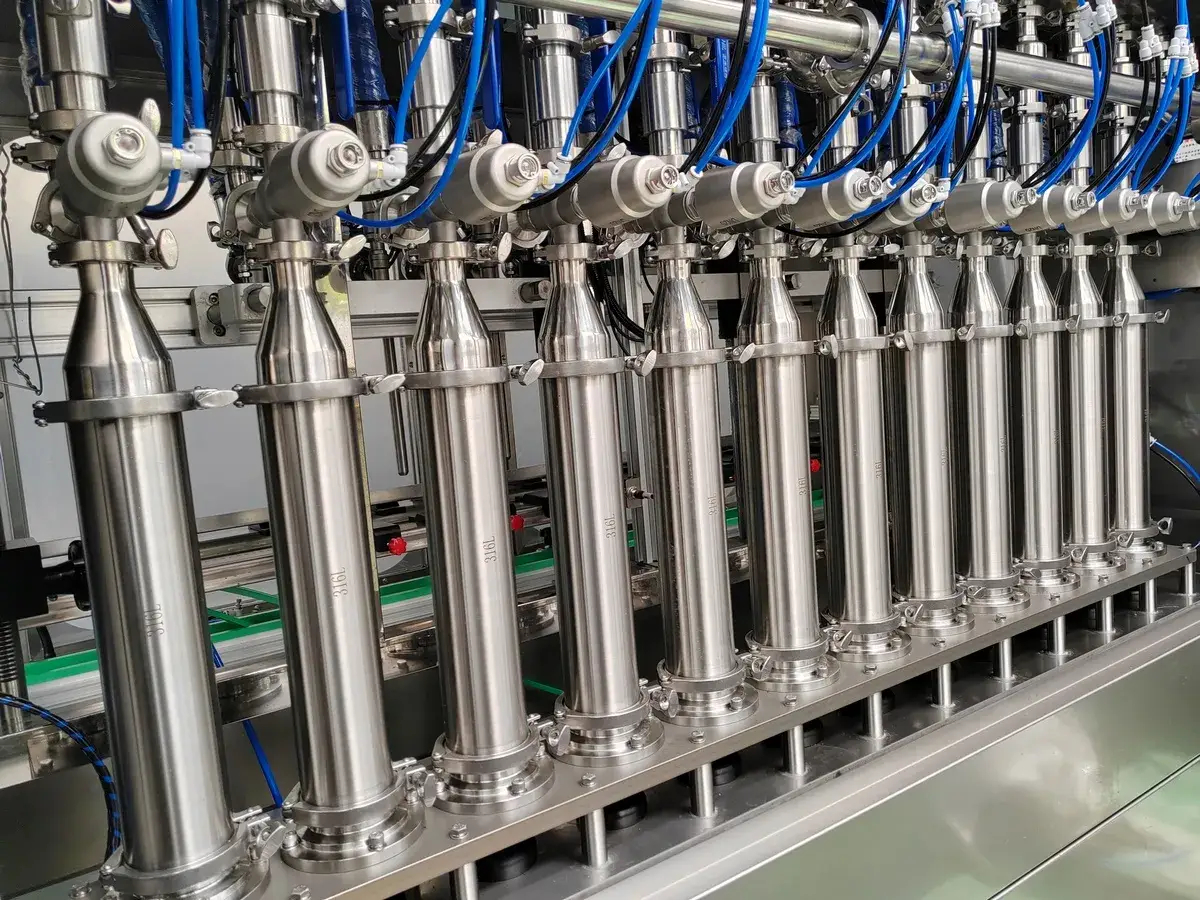

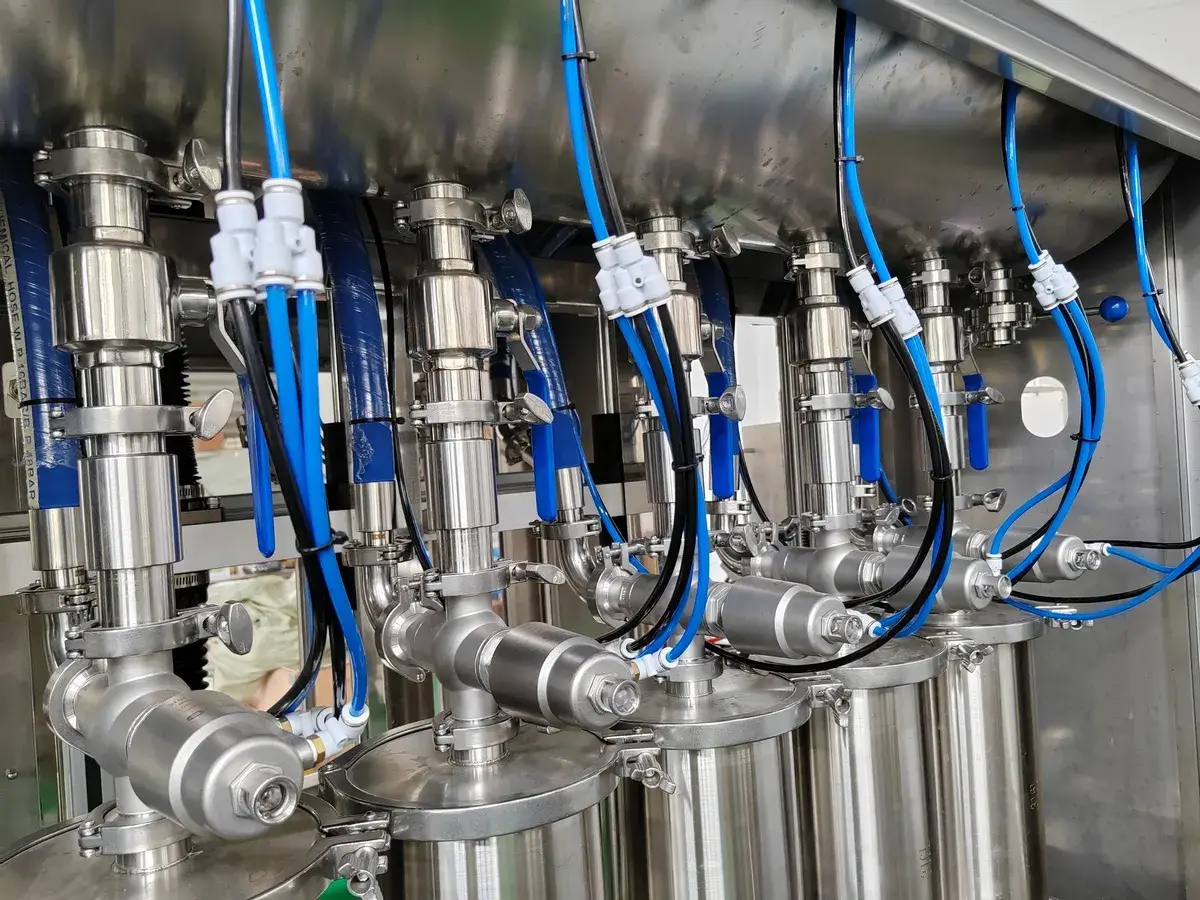

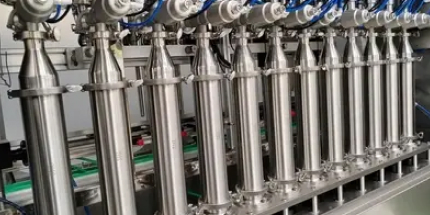

316 Stainless Steel Piston CylindersAllow for high-precision drip-free filling for liquids of a variety of viscosities, facilitate tool-free quick cleaning, meet food-grade sanitary standards and achieve efficient production.
-

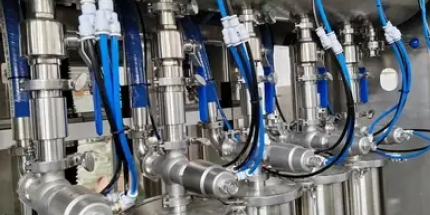

ESG ValveFeatures a dead-zone-free design for easy disassembly and precise sealing. It is compatible with various liquids, ensuring that the filling process is stable, reliable, hygienic, and efficient.
-

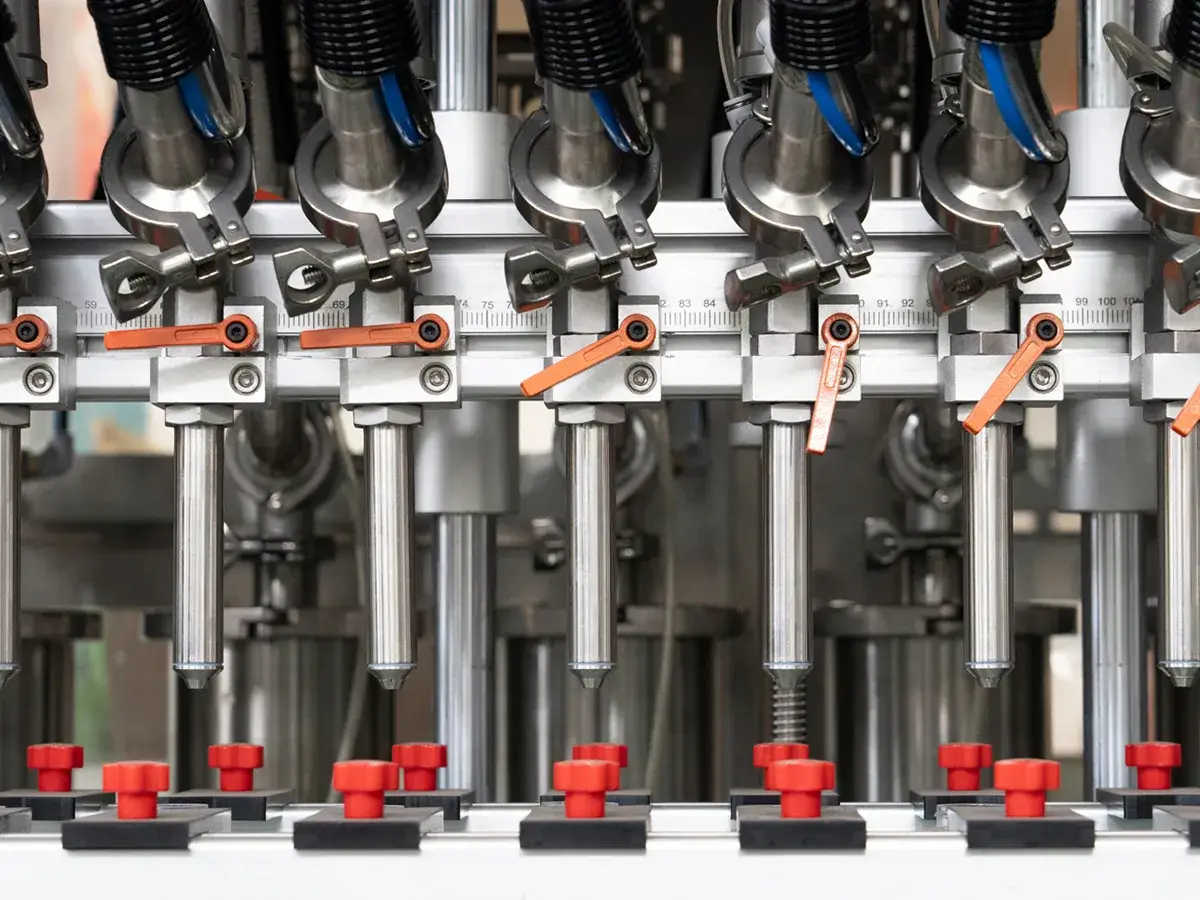

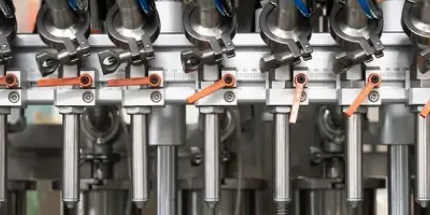

304/316 Stainless Steel anti-Drip Filling NozzleEquipped with guiding positioning and an active suck-back design to achieve clean, stable, and drip-free high-quality filling.
-

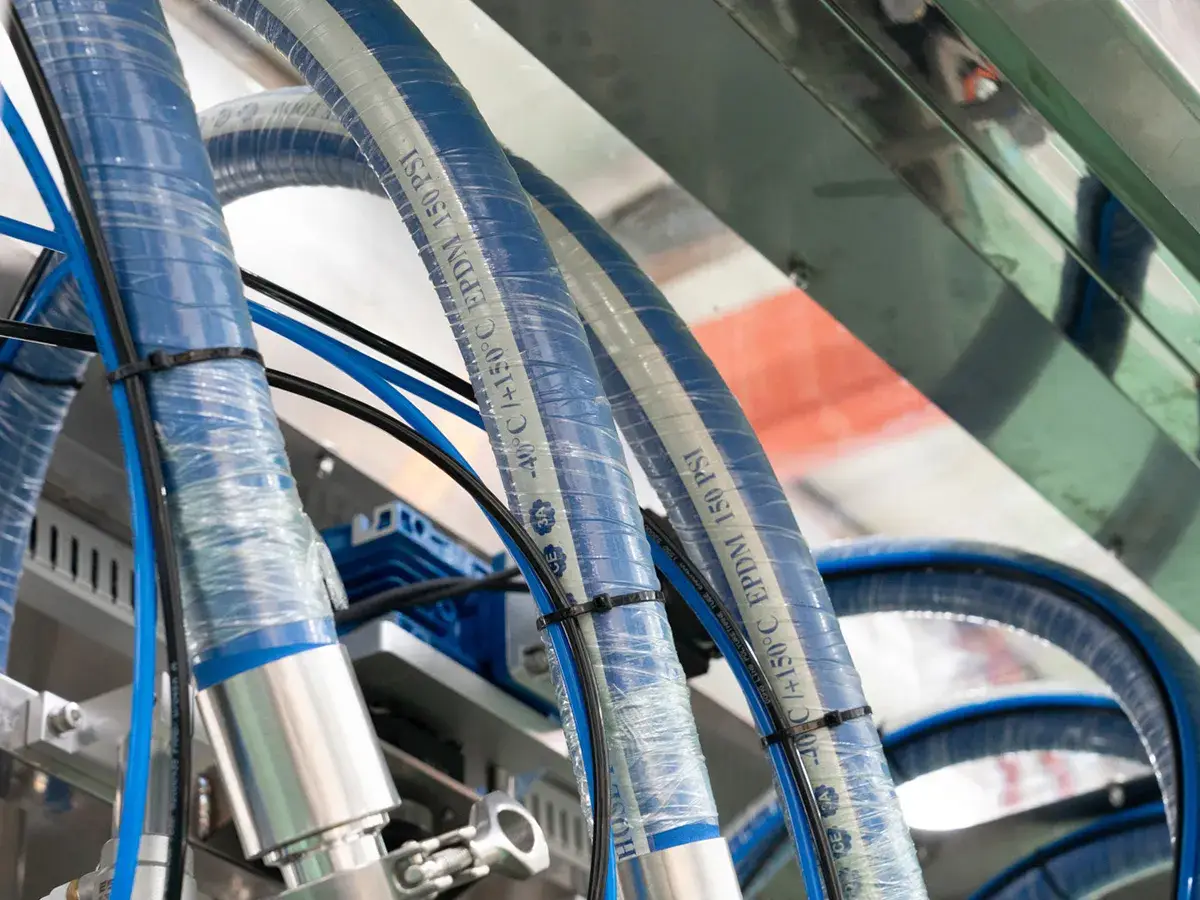

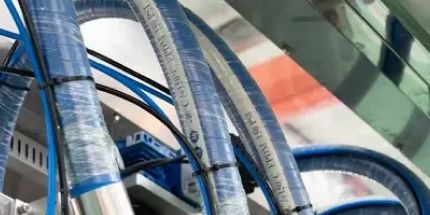

Food-Grade Teflon HosesFeatures high-temperature and high-pressure resistance, to ensure safe and reliable liquid transportation under high temperature and pressure.
| Model | |
|
|
|
|
|
|
|
| Heads | 2 | 4 | 6 | 8 | 10 | 12 | 16 | 20 |
| Filing Volume | 100ml-500ml, 100-1000ml, 1000-5000ml | |||||||
| Capacity | 8-14 | 16-25 | 24-40 | 32-56 | 35-60 | 45-80 | 60-100 | 70-120 |
| Air Pressure | 0.6MPA | |||||||
| Accuracy | Filling volume≤1000ml, filling accuracy ±2~3ml Filling volume ≤5000ml, filling accuracy ±3~5ml | |||||||
| Power | 220VAC SINGLE PHASE 1500W | 380VAC Three PHASE 3000W | ||||||
- Servo drive enables precise control of piston stroke, achieving accurate measurement and stable filling for liquids of diverse viscosities.
- Piston and filling nozzles are made by 304L/316 stainless steel. The seals are corrosion resistant, adaptable to various liquids. The whole filling equipment complies with GMP sanitary standards.
- The PLC touchscreen HMI facilitates parameters setting, operations monitoring and failure diagnosis and enables tool-free one-button adjustment of filling volume and filling speed.
- Servo-driven diving nozzles combine the pneumatic shut-off valves and drip-free design. The built-in drip tray ensures a clean working area and maintains the precision and hygiene during production.
- Equipped with emergency stop buttons, a complete cable identification system and a single-wire electrical diagram, ensuring safe operation and efficient fault detection.
-
6-Head Inline Liquid Filling System -
Single Head Piston Filling Machine -
4-Head Detergent Filling Machine
