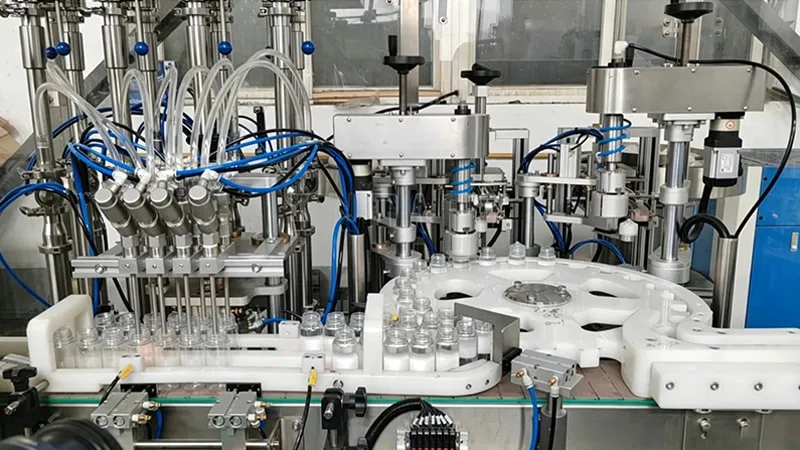

Essential Oil Filling Line
Npack essential oil filling line is designed for automated packaging of essential oils, fragrances, and other small-volume liquid products. The line typically integrates volumetric filling, automatic capping, and subsequent packaging processes.

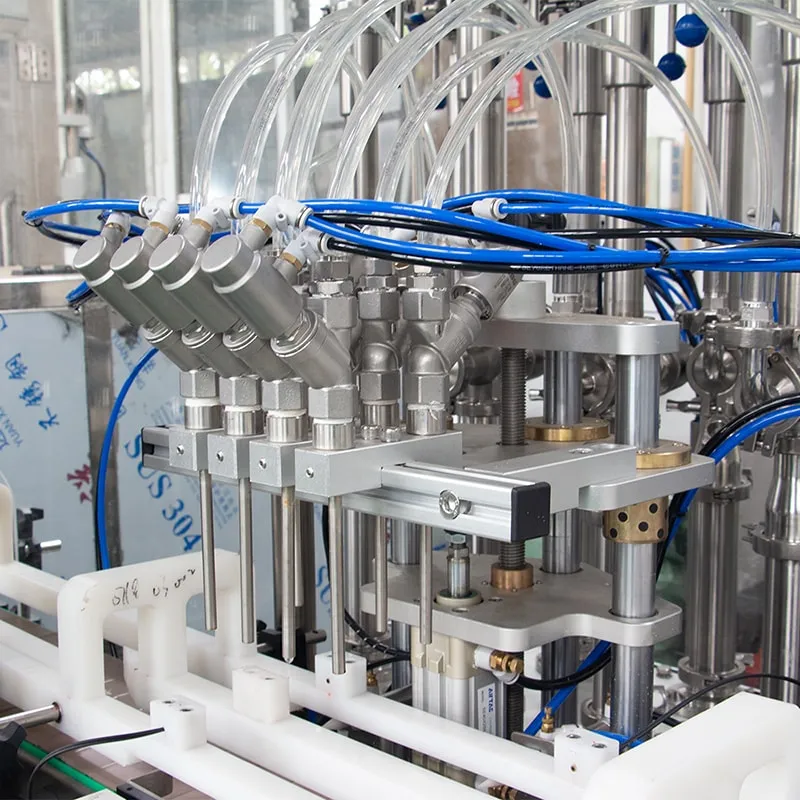

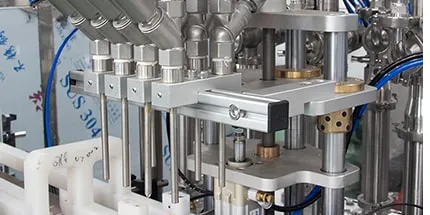

A piston volumetric filling system provides controlled, consistent filling, while operating parameters can be adjusted according to product viscosity, package volume, and bottle format.
Parameters
| Bottle Type | Customizable |
| Production Speed | 32-56 bottles/min |
| Filling Accuracy | Filling volume≤1000ml, filling accuracy ±2~3ml Filling volume ≤5000ml, filling accuracy ±3~5ml |
| Filling Volume | 10ml-100ml |
| Filling Nozzles | 8, customizable based on production capacity |

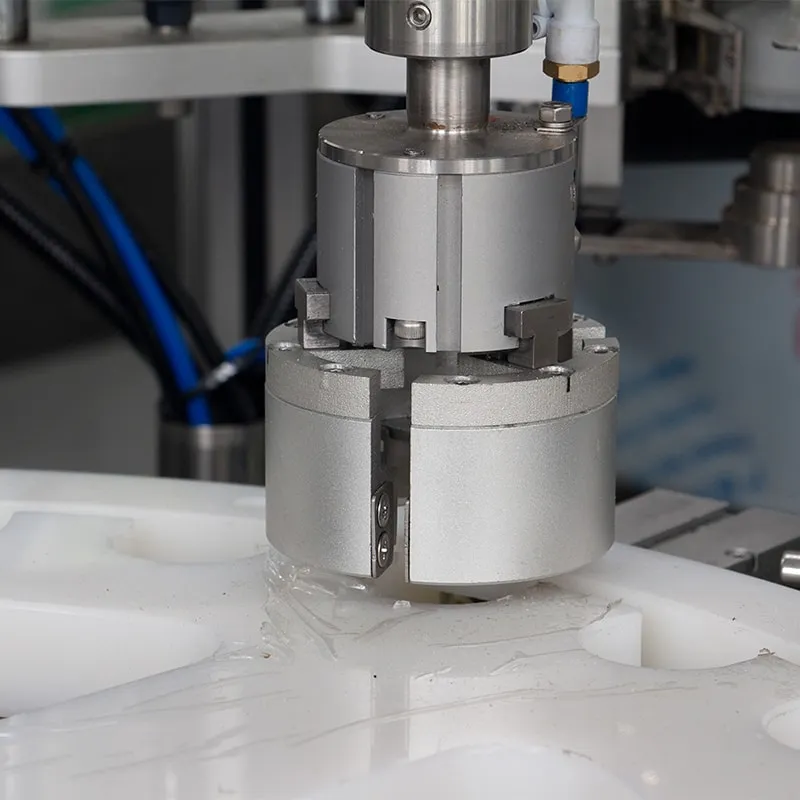

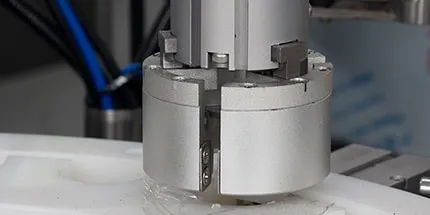

| Capping Heads | 2, customizable based on production capacity |
| Automatic Capping Rate | ≥99.9% |
| Dimensions | See layout |
Main Components
