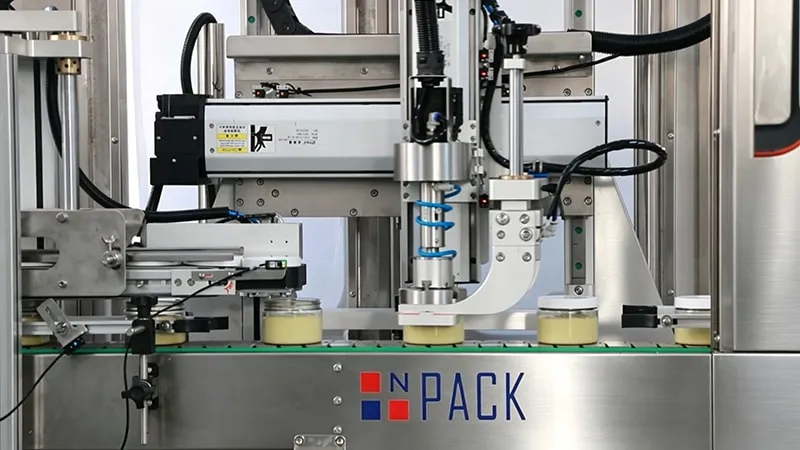

Single-Head Servo Tracking Capping Machine for Body Lotion

The single-head servo tracking capping machine is designed for automatic capping of body lotions, lotions, creams, shampoos, conditioners, and other personal care products. After filling, the machine handles cap pickup, positioning, and tightening to support continuous automated packaging.

Its servo tracking capping system allows the capping head to move in sync with the bottles as they travel along the conveyor. Capping is completed while the bottles remain in motion, reducing the need for frequent stops during production.

Parameters
Model NP-TC Series
Capping Speed 40 pcs/min (based on one head)
Capping Heads 1
Cap Type Screw cap
Bottle Size 30-120mm (customizable)
Bottle Height 50-380mm
Cap Size 18-120mm
Main Components
