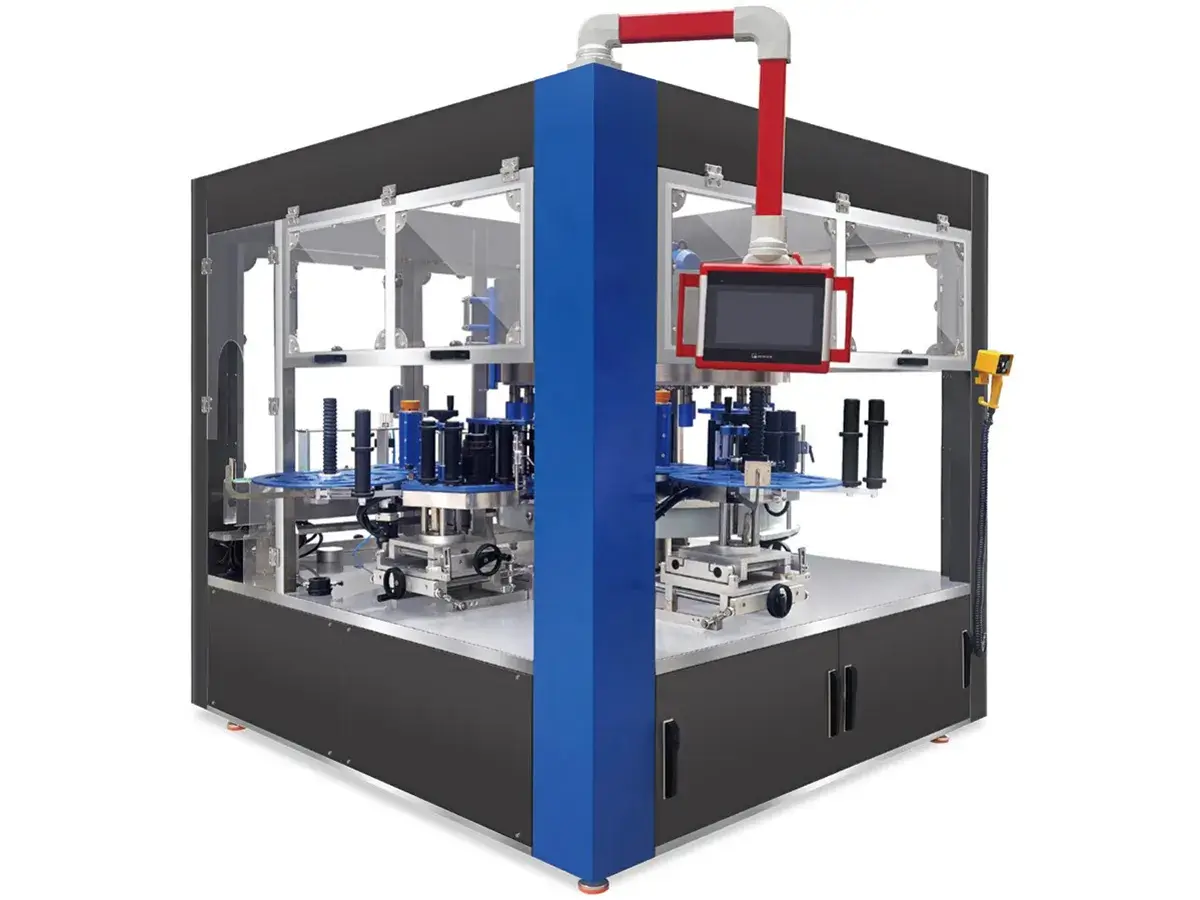

Automatic Rotary Labeling Machine
High-speed labeling machine for servo-driven precision labeling of up to 48,000 BPH

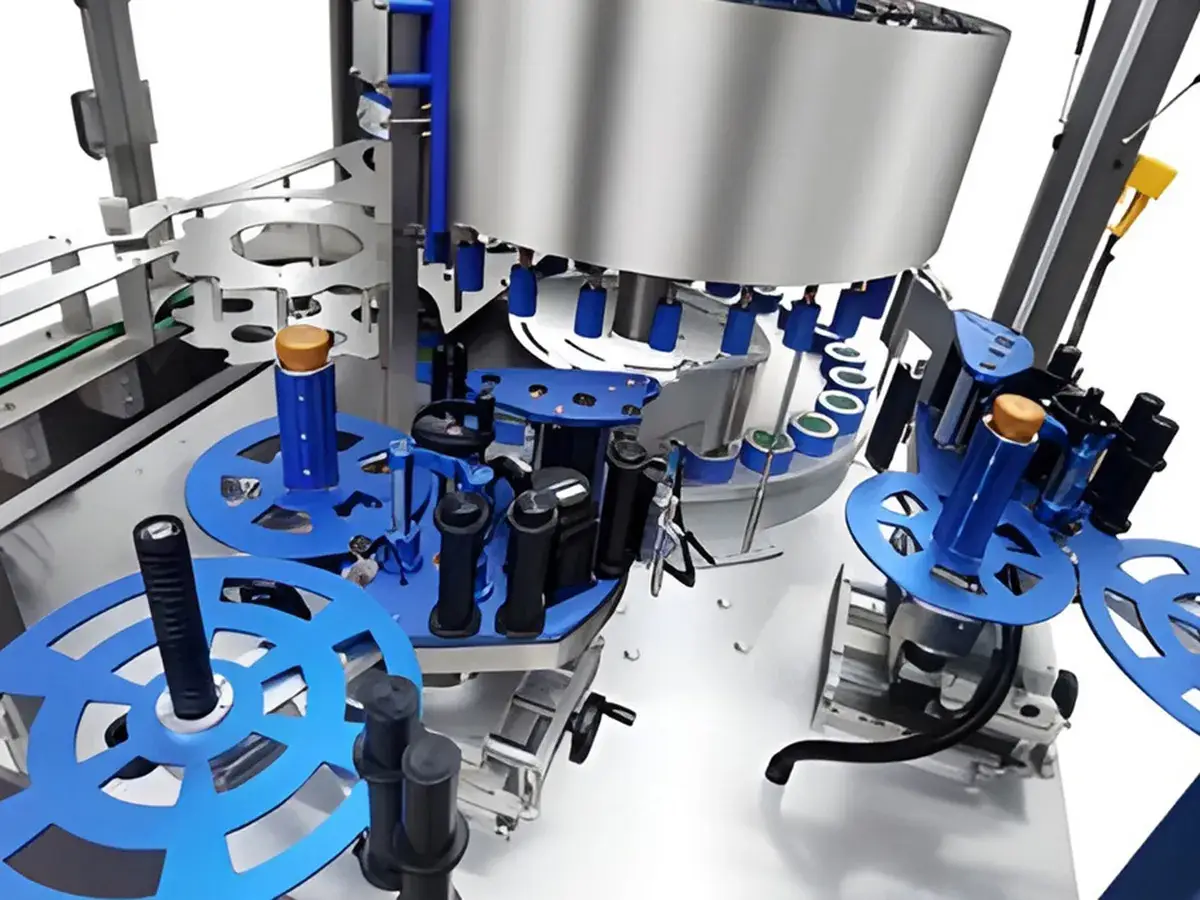

The automatic rotary labelling machine is equipped with 1500W servo drive system and electronic gear technology, achieving labeling speed at 60-160 meters/min, accuracy at ±0.2mm, and labeling capacity up to 48,000 BPH. The synchronous screw and starwheel bottle feeding mechanism ensures exceptional stability during high-speed operation. Its multi-axis adjustable labeling head enables rapid and precise changeovers, empowering enterprises to achieve truly high-speed, reliable, and intelligent labeling production.

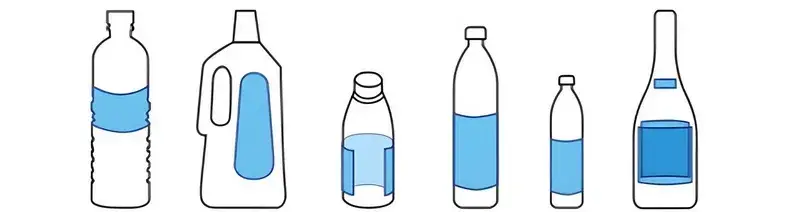

Application
Parameters
| Model | |
| Production Speed | 12000-48000 BPH |
| Labeling Accuracy | ±1mm |
| Label Max Width | 195mm |
| Label Inner Diameter | Φ76.2mm |
| Label Outer Diameter | Φ400mm |
| Power | 6kW |
