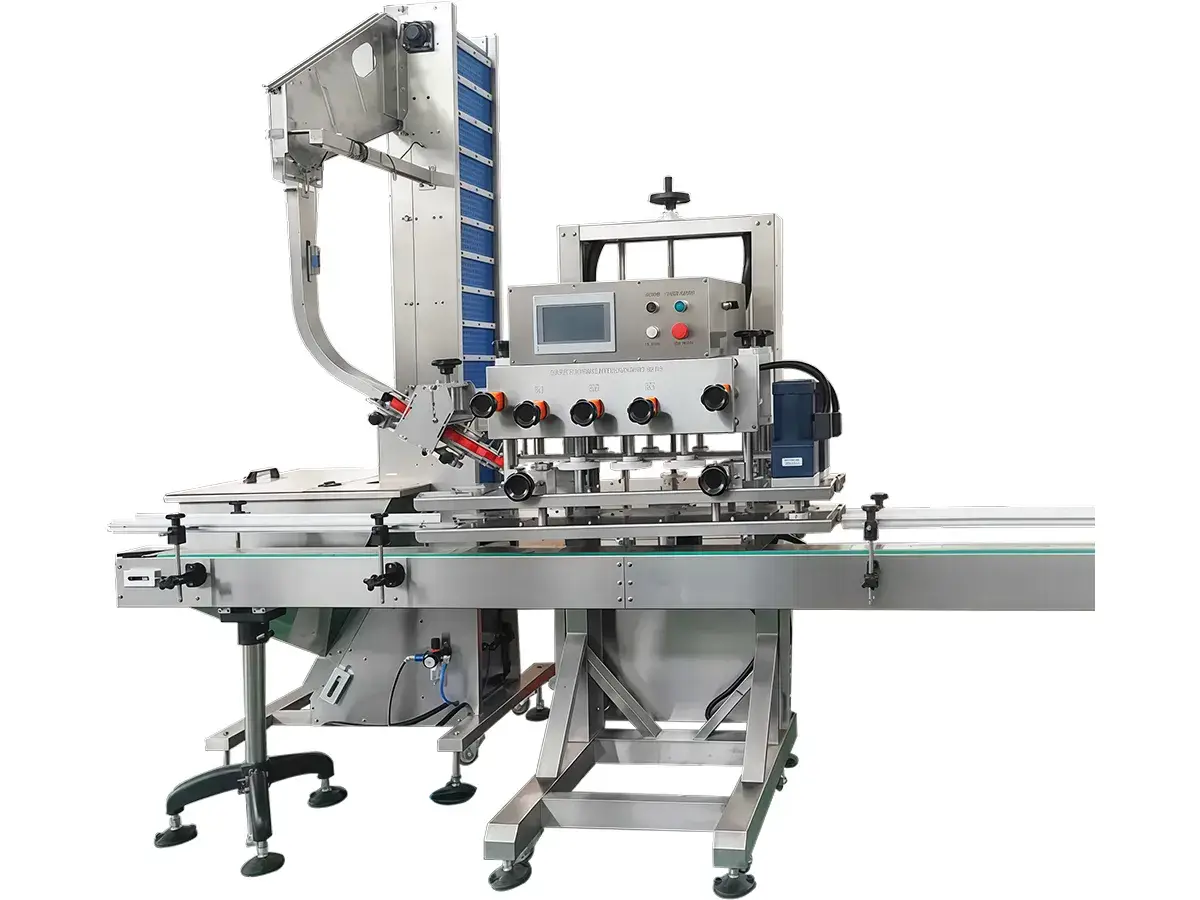

Automatic Spindle Capping Machine
Spindle capper machine for tightening metal caps, threaded screw caps and other various closures
Automatic spindle capping machine, designed with efficiency, versatility, and precision, handles metal caps, threaded screw caps and other types of caps from 10mm to 120mm. The capping system incorporates a dual-tier bottle gripper belt system and AC variable-speed motor drive to maintain container stability during high-speed capping. The capper facilitates tool-free quick changeover, significantly reducing downtime and improving production efficiency.
-

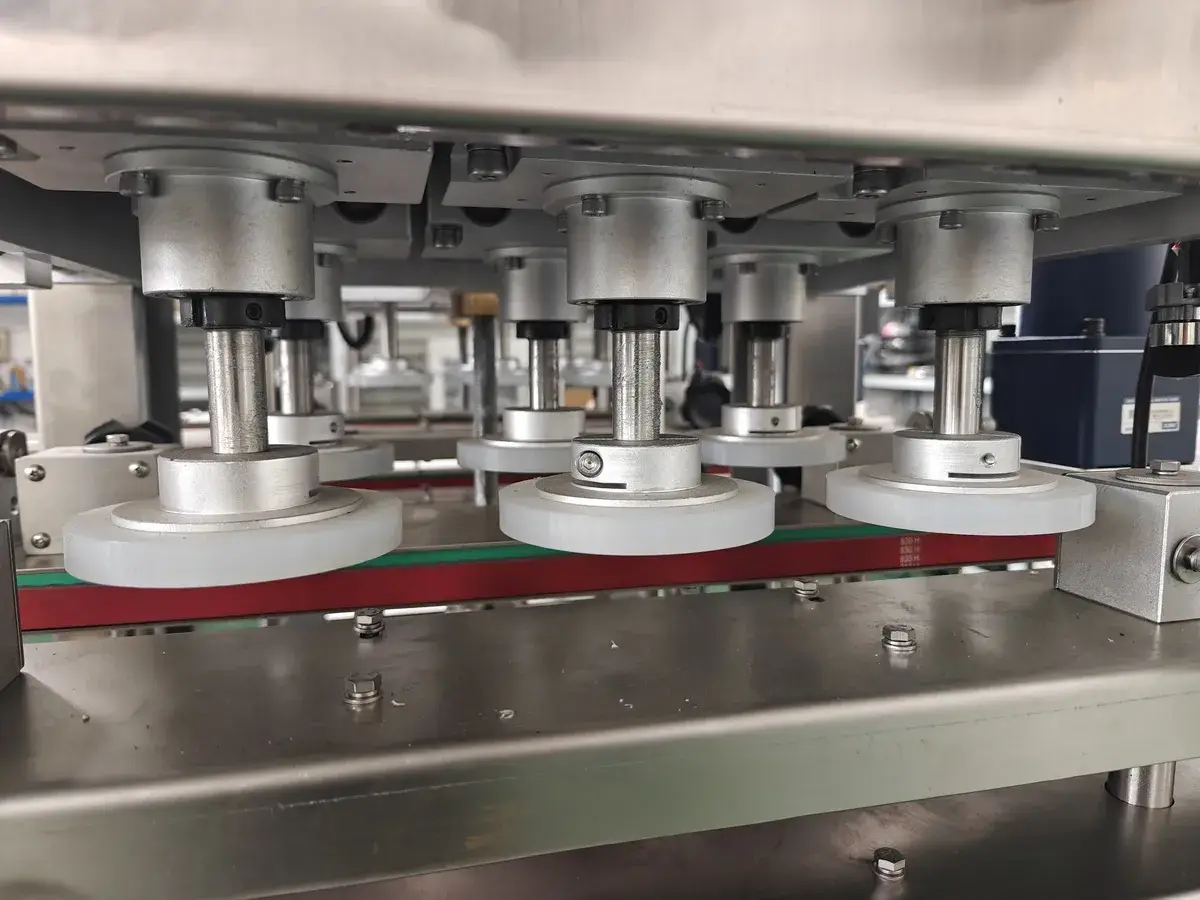

6 Capping WheelsA six-spindle flexible capping system featuring independent drives and precise speed regulation. It facilitates smooth multi-directional cap entry and utilizes soft-touch protection to ensure zero damage to cap surfaces. The system accommodates various specifications through flexible height and spacing adjustments, delivering a highly stable and compatible capping experience.
-

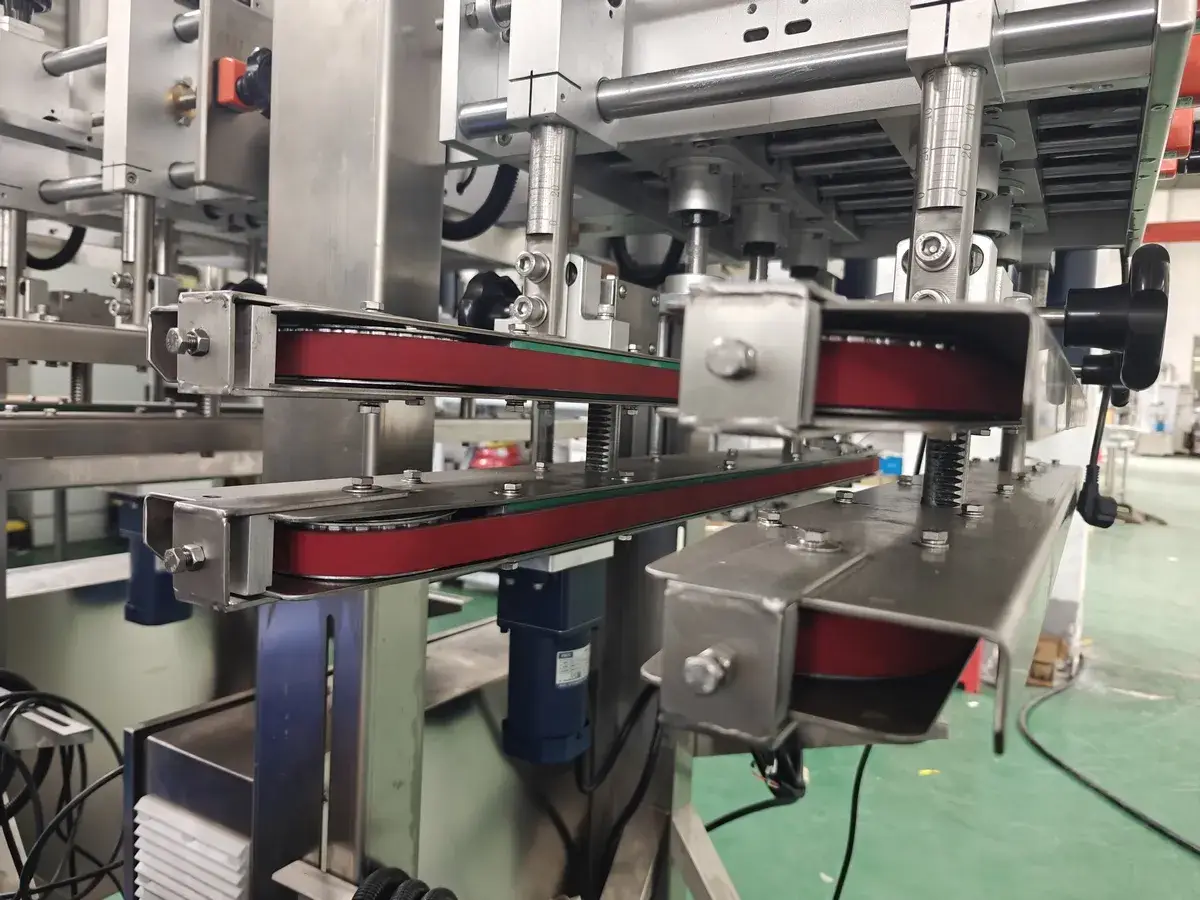

Dual-Tier Bottle Gripper Belt SystemEnables flexible height and angle adjustment and intelligent speed regulation, to achieve more stable, more precise and smoother bottle conveyance.
-

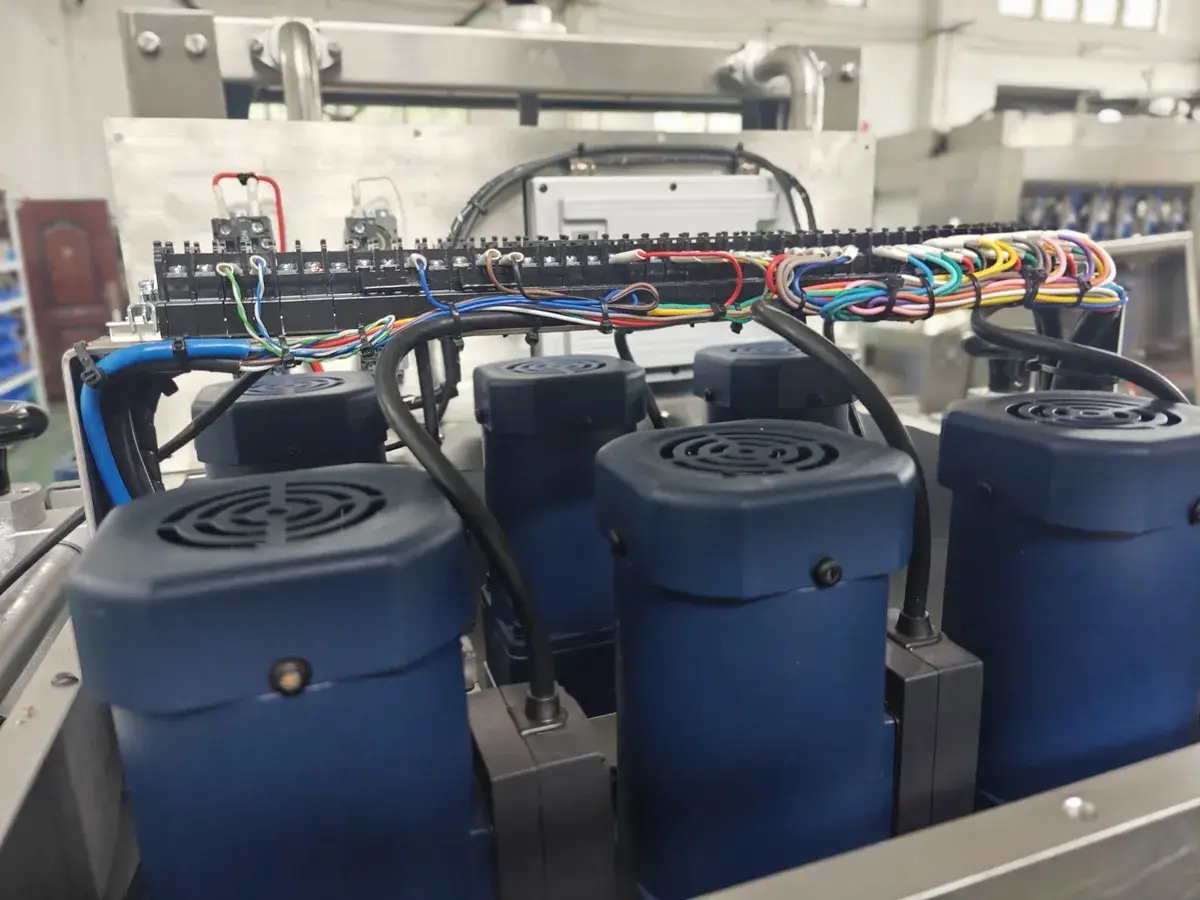

9 Independent Motor DrivesAllow for precise control in cap tightening, bottle gripping and elevating. Upgrade to servo torque drive is available.
| Model | |
| Production Capacity | 0~200b/m(subject to bottles and cap size) |
| Bottle and Cap Diameter | Φ10~120 subject to samples |
| Bottle Height | 40~380mm |
| Spindle Capping Machine Dimension | L1060*W896*H1620mm |
| Voltage | AC 220V50Hz |
| Power | 1600W |
| Weight | 500kg |
| Dimension | L880*W1000*H2600mm |
- The 6 capping spindle design achieves uniform torque and precise sealing, compatible with a wide range of cap and bottle types, ensures stable and reliable cap closing at low liquid leakage rate;
- The hand wheel and control knob allow for easy adjustment of bottle height, belt width and capping torque. This tool-free operation enables quicker changeover and higher capping throughput;

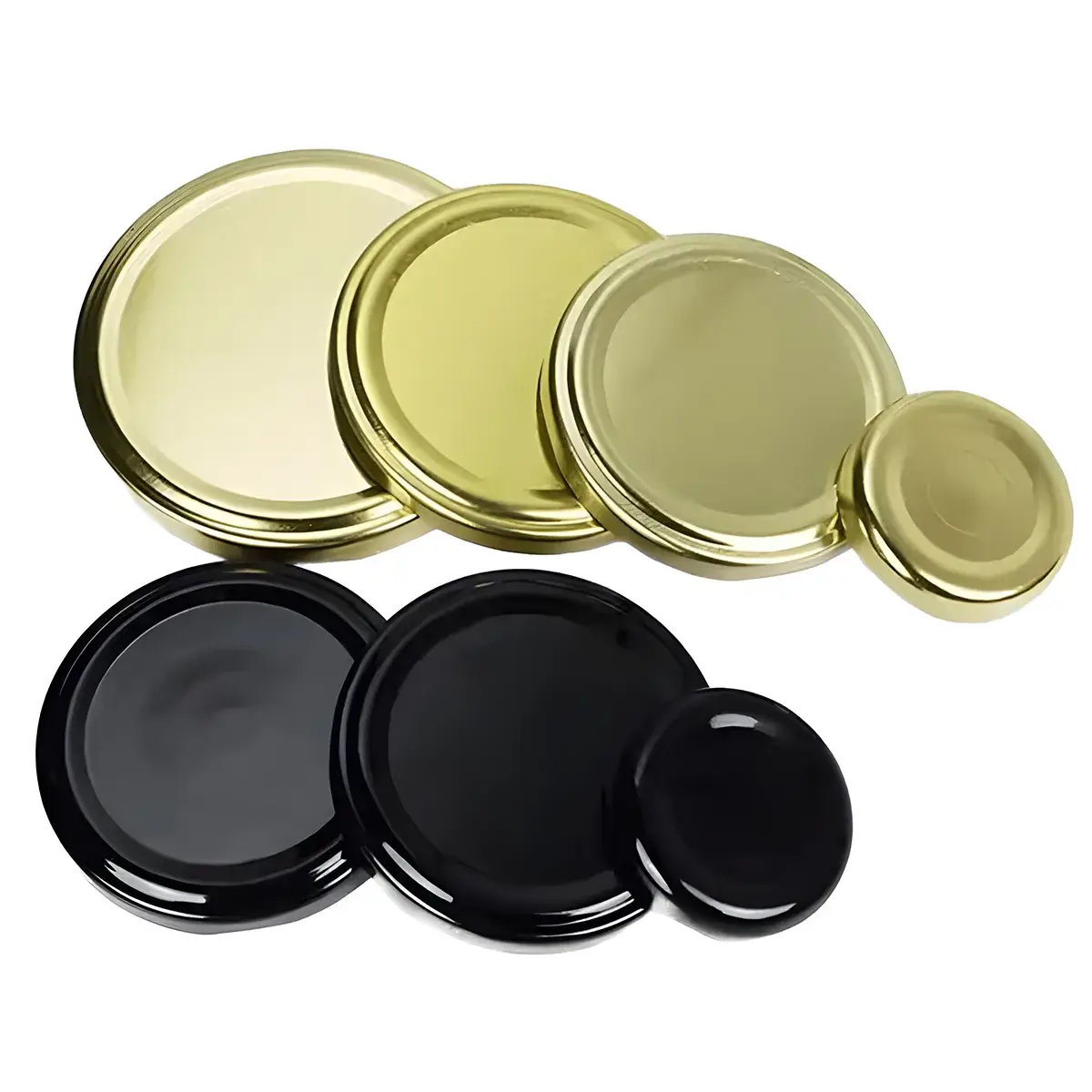

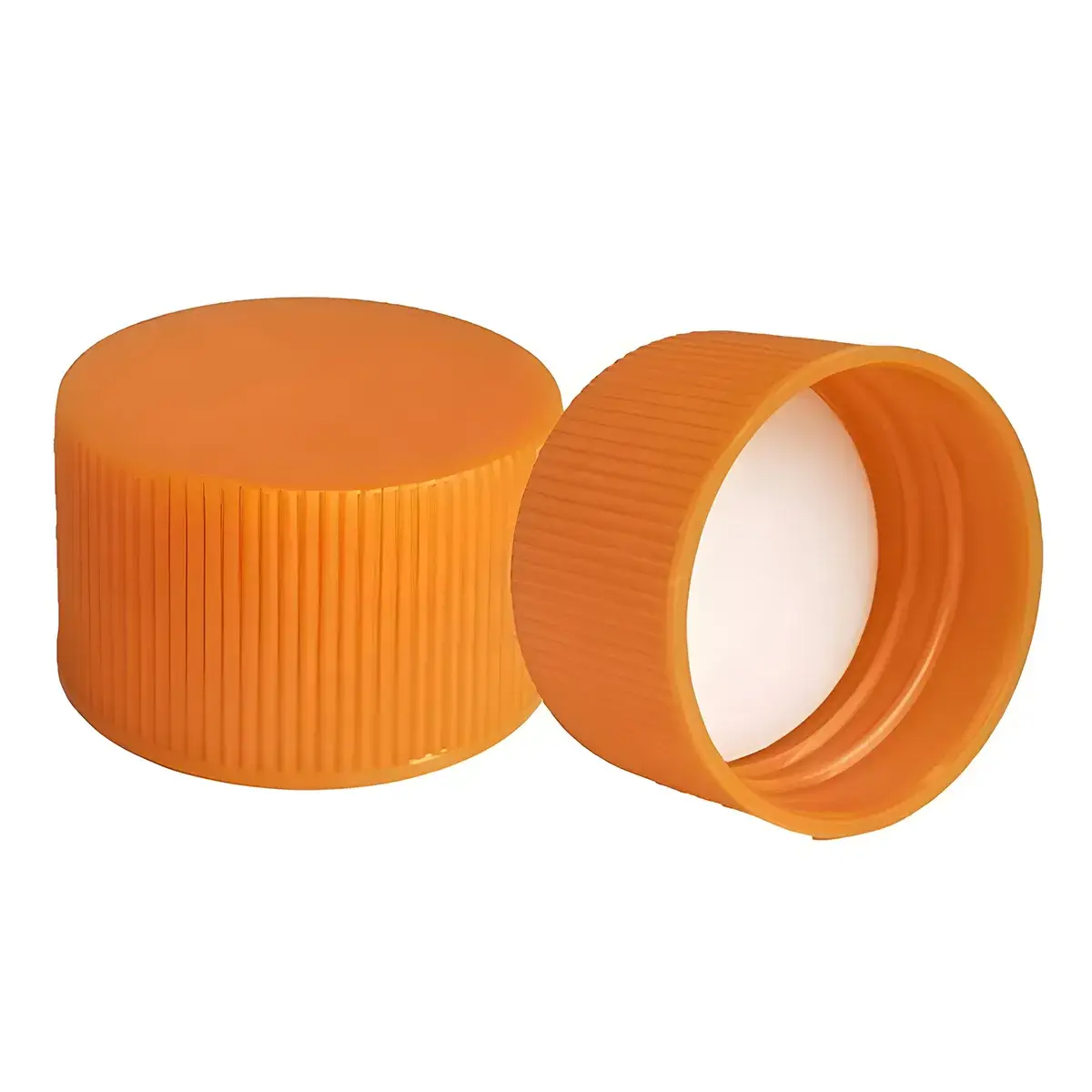

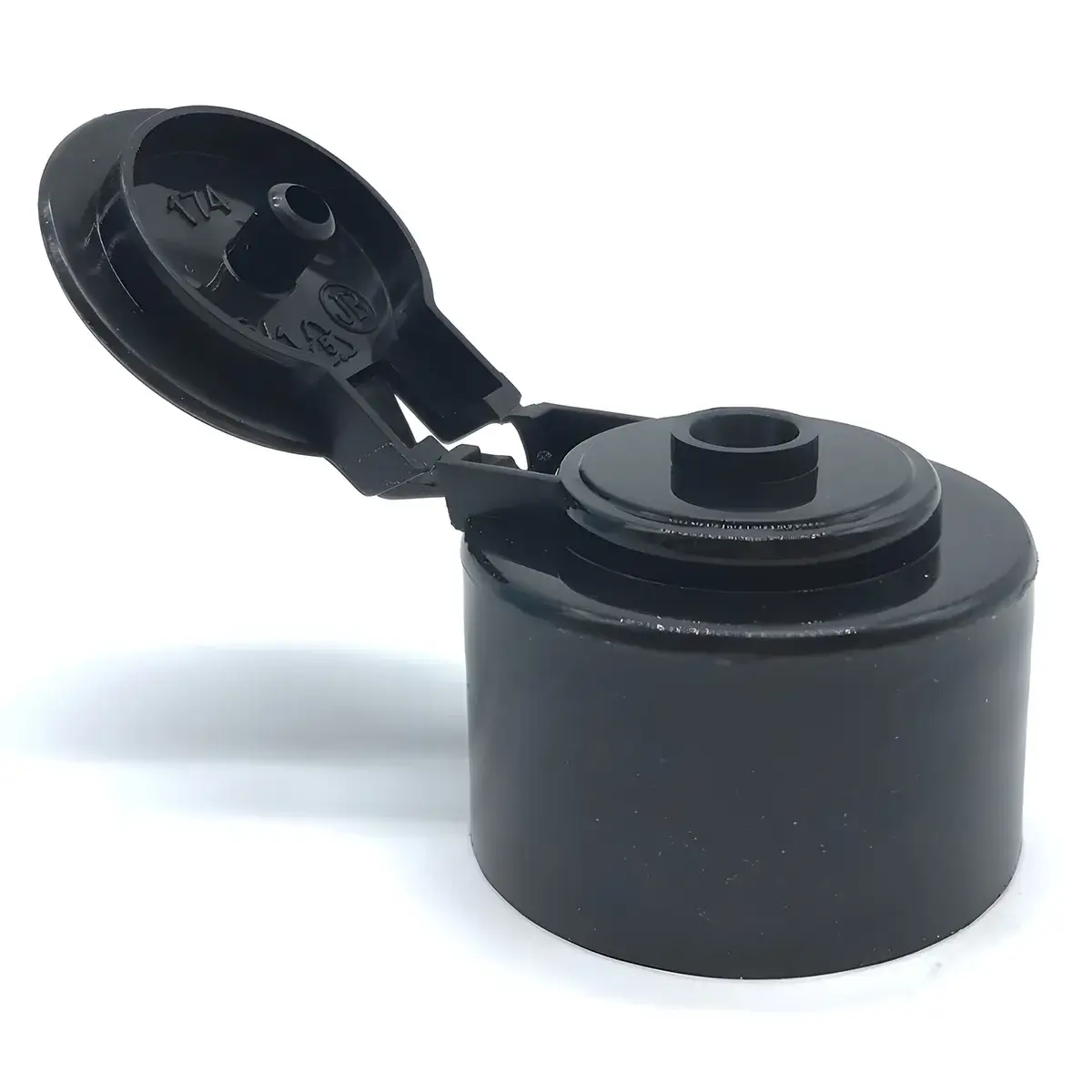

- The auto capper handles caps of diameter from 10 to 120mm . Compatible with various closures: flat caps, trigger sprays, CRC caps, and more. Suitable for food cosmetics, pharma and chemical industries;
- Utilizes dual mechanical clutches to ensure stable torque without damaging caps; an optional servo drive is available for achieving higher precision and smarter capping control;
- Features a low-vibration cap elevator with an 800-cap storage capacity, engineered for quiet operation and high-speed production stability.
-
