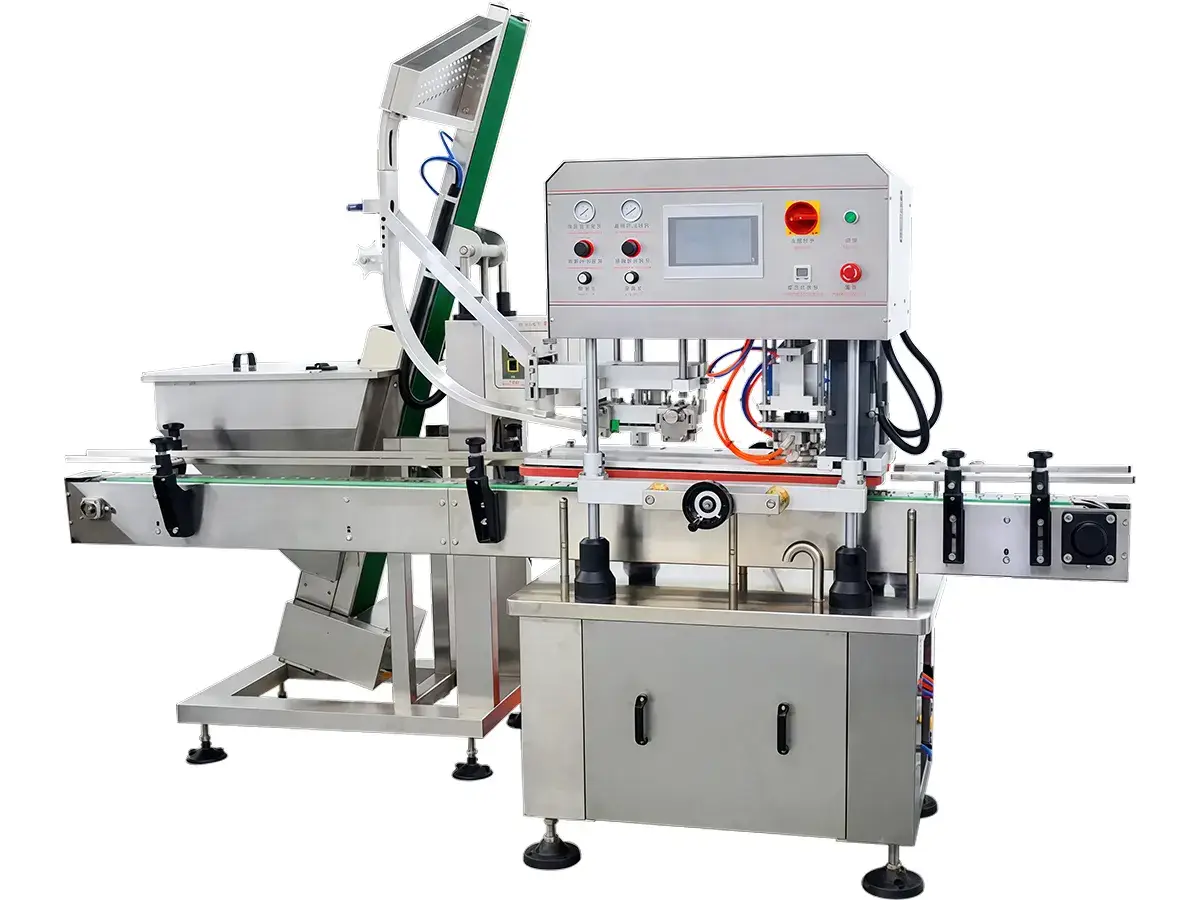

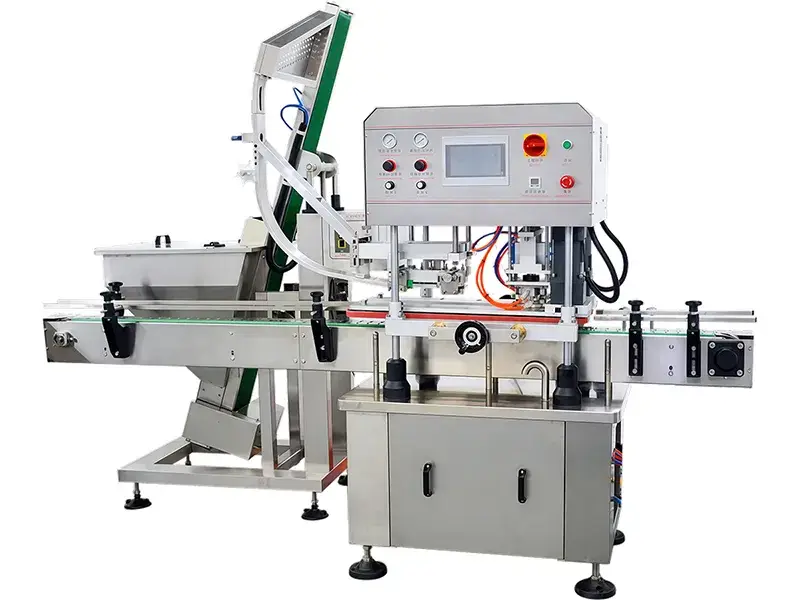

Automatic Vacuum Capping Machine
Vacuum lug capper machine for vacuum sealing of glass jars with lug closures
The vacuum lug capping machine is a fully-automatic vacuum sealing equipment built for glass bottles in food, beverage, cosmetics and chemical industries, offering efficient and precise bottle closure. The lug capper is made by SUS304 stainless steel to ensure hygienic operations and stable performance. Designed with advanced functions like auto cap placement, adjustable capping torque and bottle height, “No Bottle, No Cap” protection system, the automatic capper is compatible with a variety of cap and bottle types. It can be integrated to your existing production line easily and seamlessly.
The lug closure sealing machine has passed the CE certification with a maximum production capacity of 40 bottles per minute, delivering safe and reliable cap sealing performance.
-

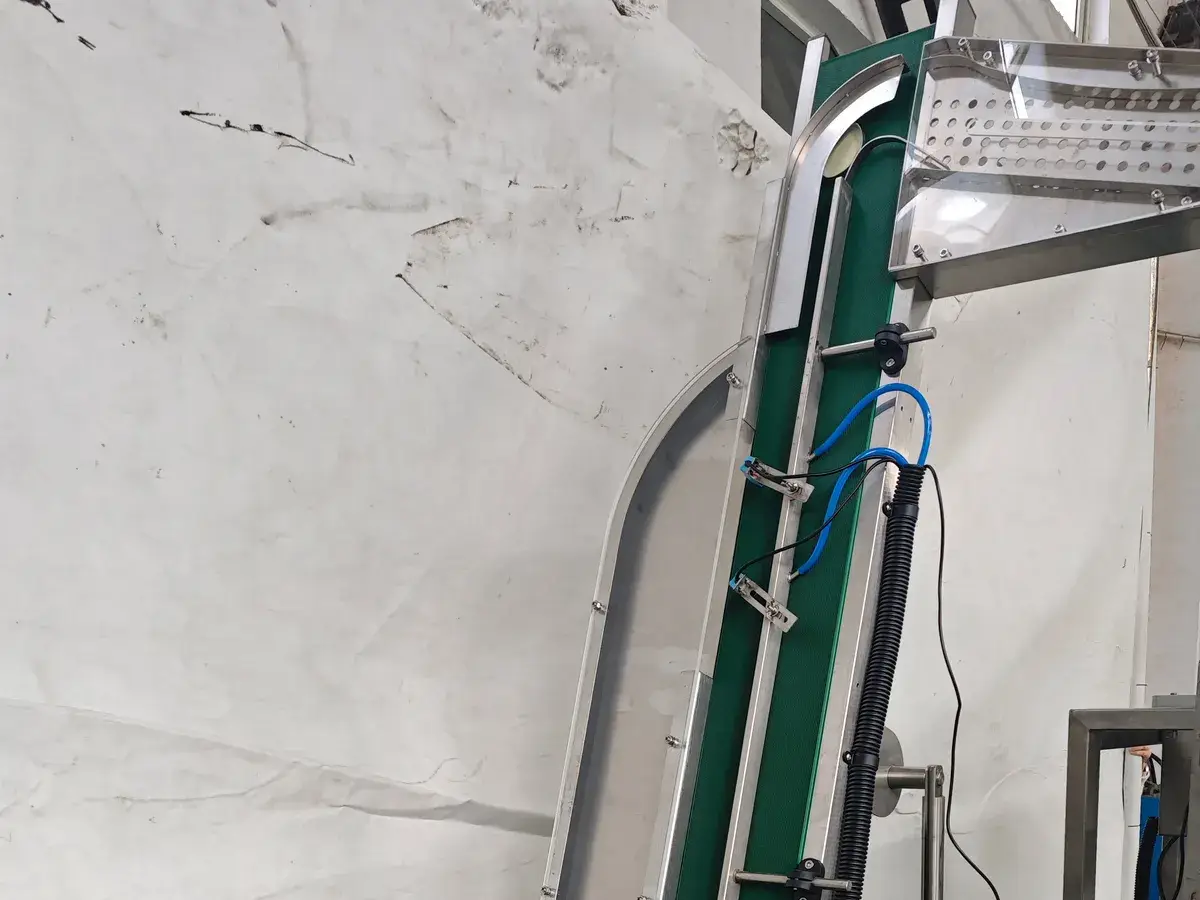

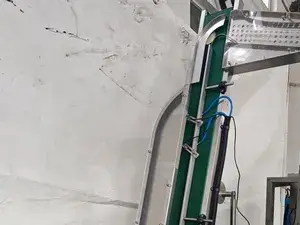

Magnetic ElevatorUtilizes powerful magnetic suction for stable vertical lifting of the bottle, ensuring precise alignment between the bottle mouth and the capping head. This guarantees a more stable, hermetic, and reliable capping process.
-

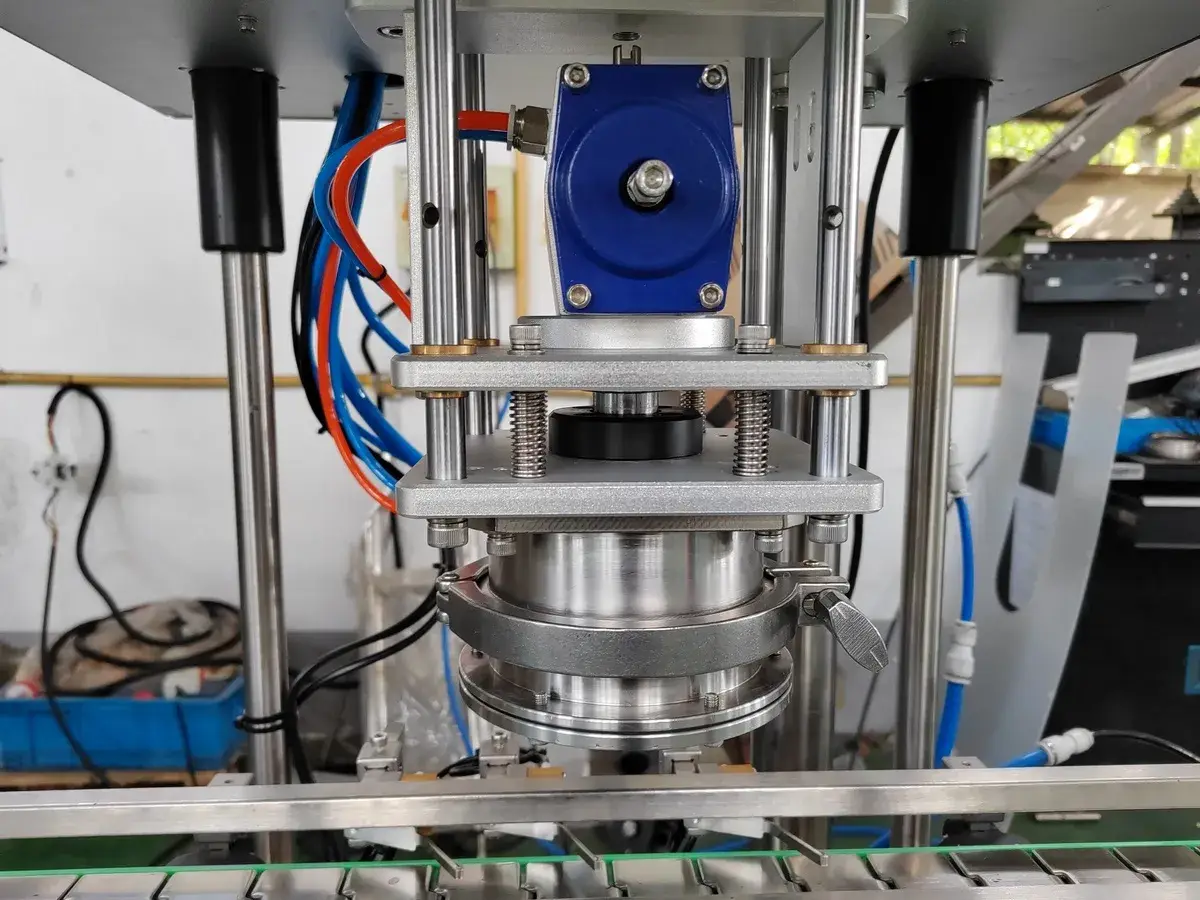

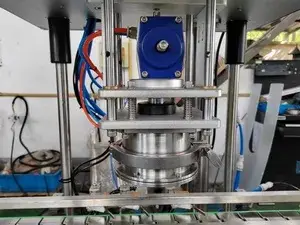

Vacuum Capping HeadSimultaneously evacuates air from the container to create a vacuum while completing the capping cycle, ensuring a high-integrity vacuum seal for every bottle.
-

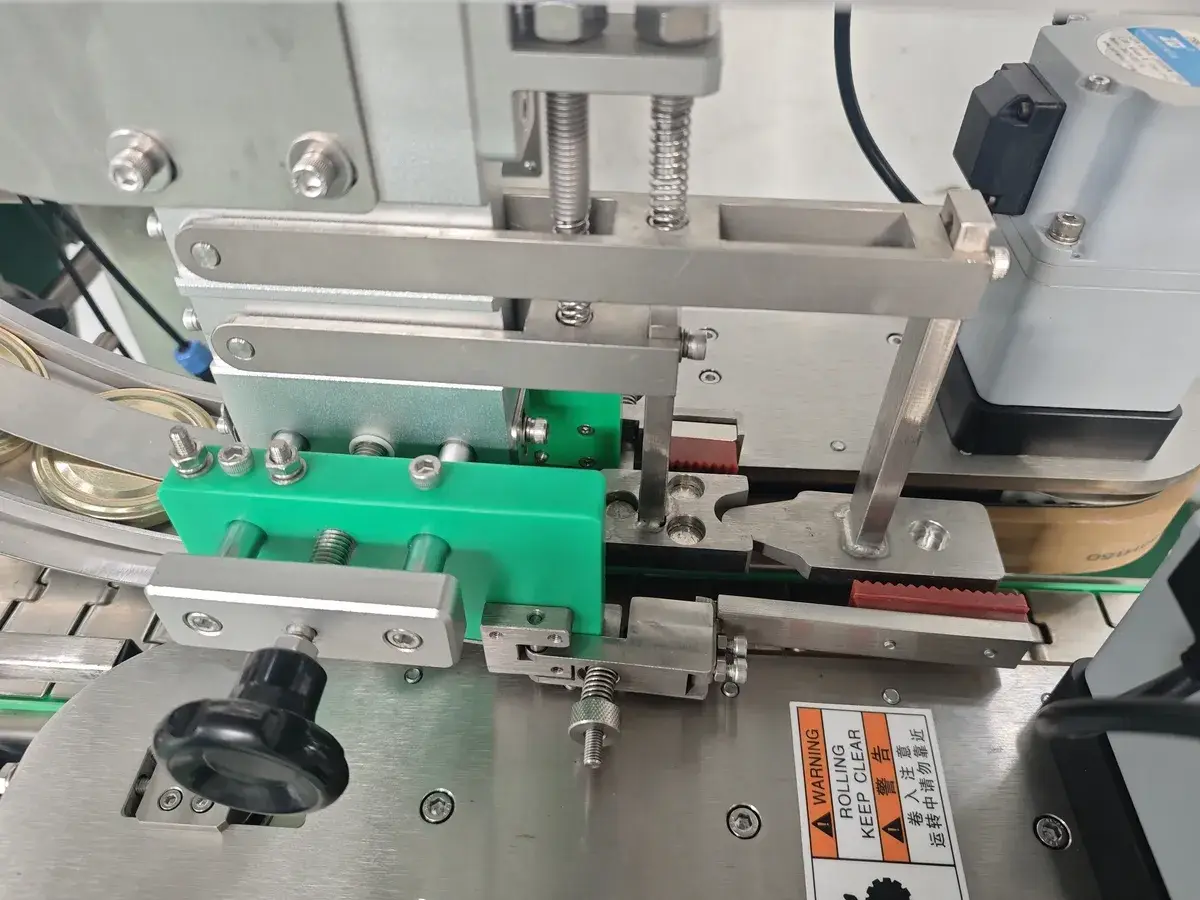

Cap Placement UnitUses powerful magnetic suction for precise cap placement, ensuring the cap is aligned with the bottle mouth prior to vacuum evacuation and capping process. This guarantees the reliable vacuum sealing quality.
| Model | |
| Power | ≤2.3KW (including the vacuum pump) |
| Production Capacity | 1000-2400 BPH |
| Cap Diameter | 30-55mm 50-85mm |
| Bottle Height | 80-250mm |
| Bottle Diameter | 30-85mm |
| Max Vacuum | -0.08mpa |
| Capping Torque | 5-20Nm |
| Air Consumption | 0.6M3/0.7Mpa |
| Dimensions | 2100*900*1630mm 750*1060*1400mm |
| Weight | about 850kg |
- Vacuum evacuation & capping: utilizes a vacuum pump for bottle evacuation and capping, significantly enhancing sealing reliability and product shelf-life preservation.

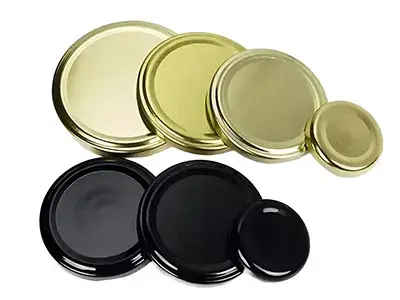

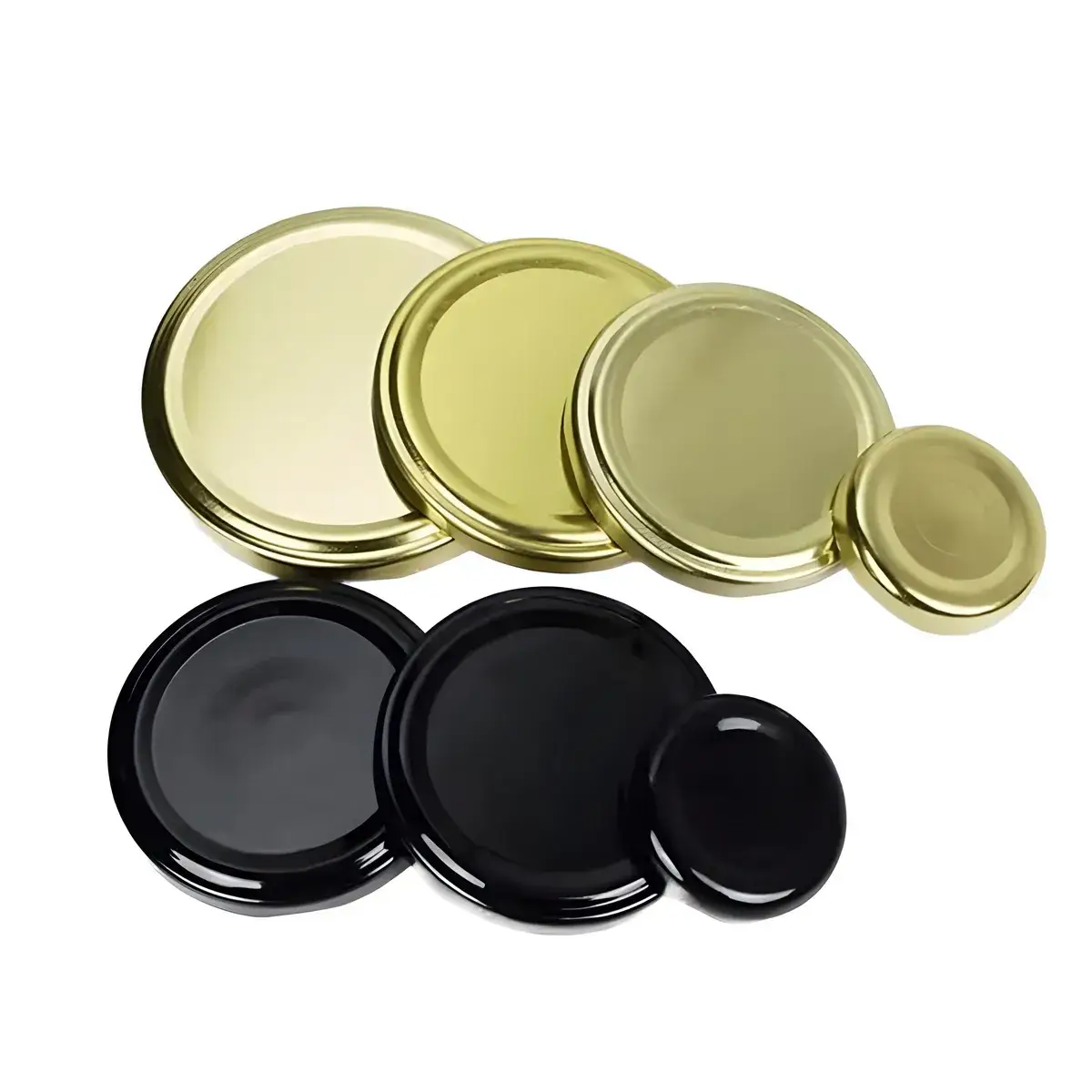

- Broad compatibility: compatible with various 3-lug or 4-lug metal caps, offering a wide range of applications.
- Variable frequency speed control: meets diverse production requirements.
- Versatile container handling: suitable for sealing glass bottles of various shapes and sizes. Bottles and caps are automatically conveyed to the vacuum chamber for air evacuation and secure capping.
