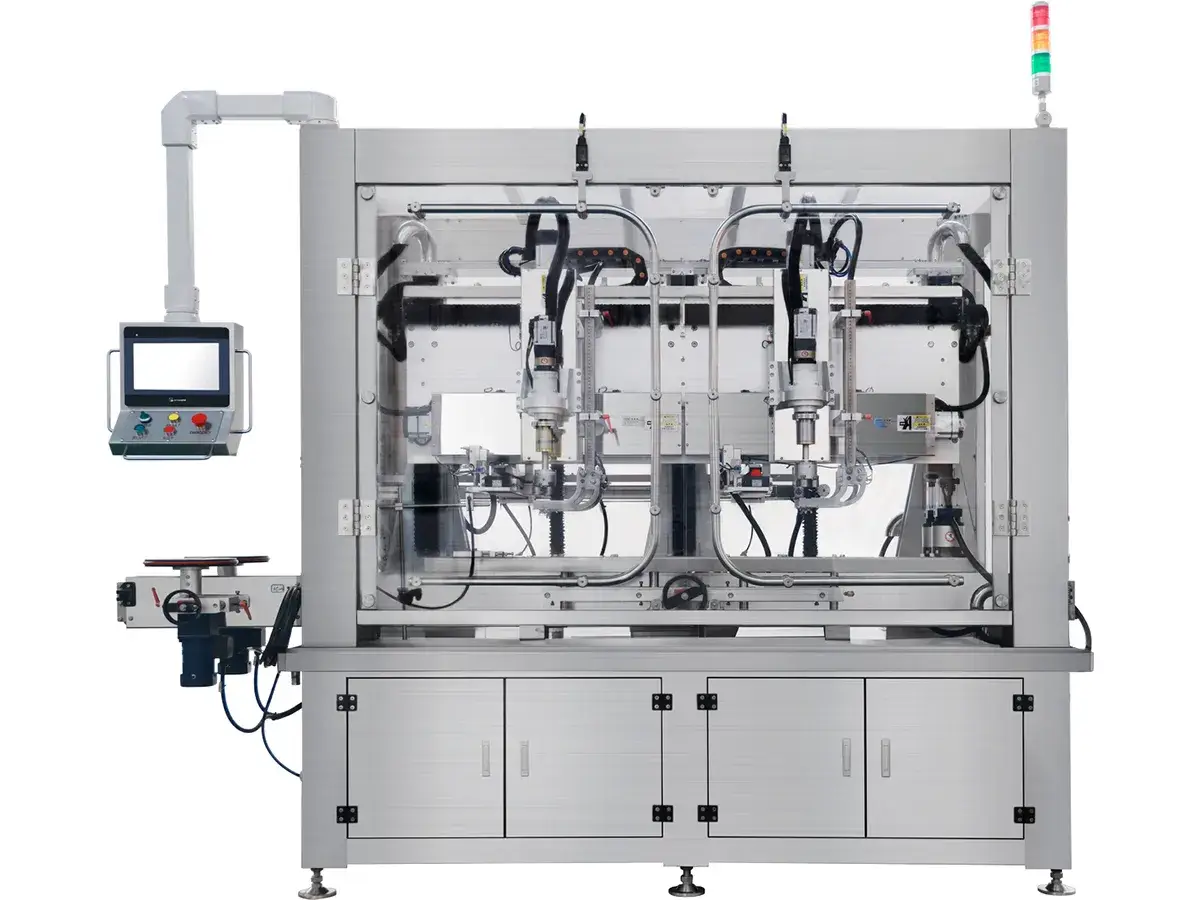

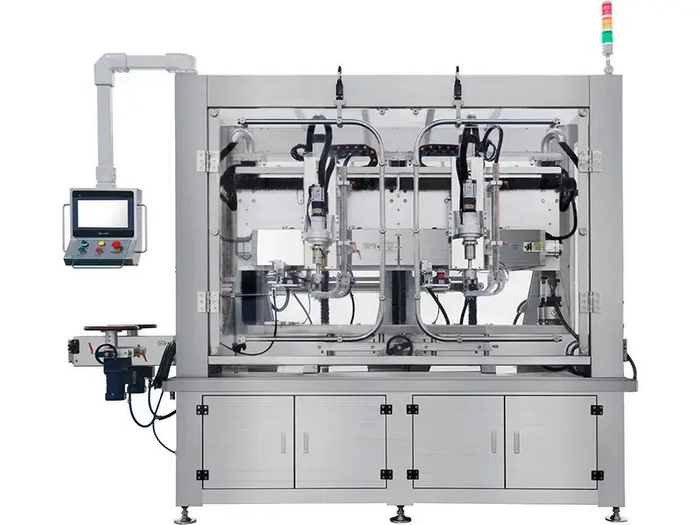

Automatic Tracking Capping Machine
Servo-driven tracking capper machine for high-speed capping with synchronized motion control
Automatic tracking capping machine from Npack features advanced servo drive technology, allowing for continuous and uninterrupted capping operations to improve production speed and capping precision. The capper is outfitted with motion control system to ensure the accurate synchronization between capping head and bottles on conveyor, preventing the liquid splashing and ensuring the stable sealing quality.
The servo-driven capping equipment is made by 304 stainless steel. Its adjustable structural design allows for quick height and width transitions, accommodating various bottle and cap sizes. The customizable cap supply system provides maximum flexibility for multi-product production lines, making it ideal for food, cosmetics and chemical industries.
-

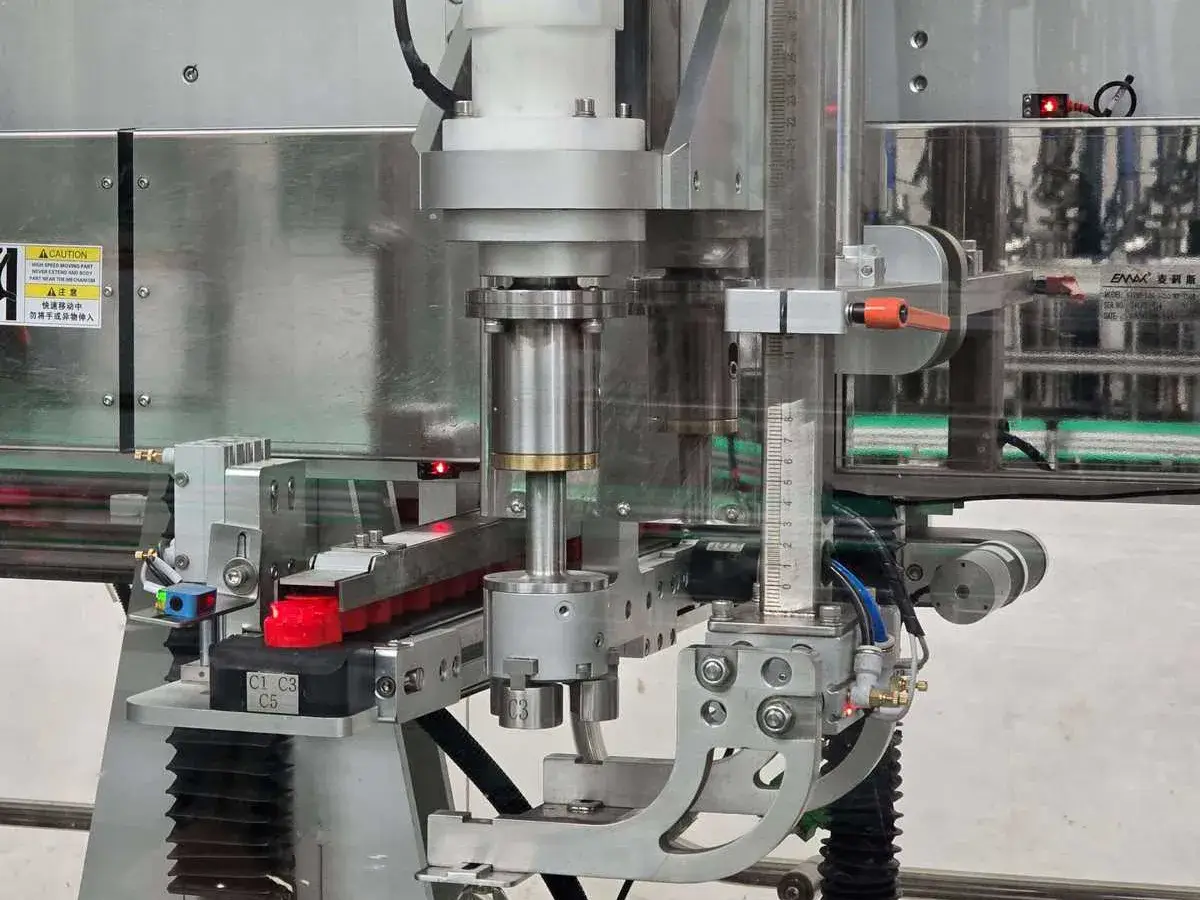

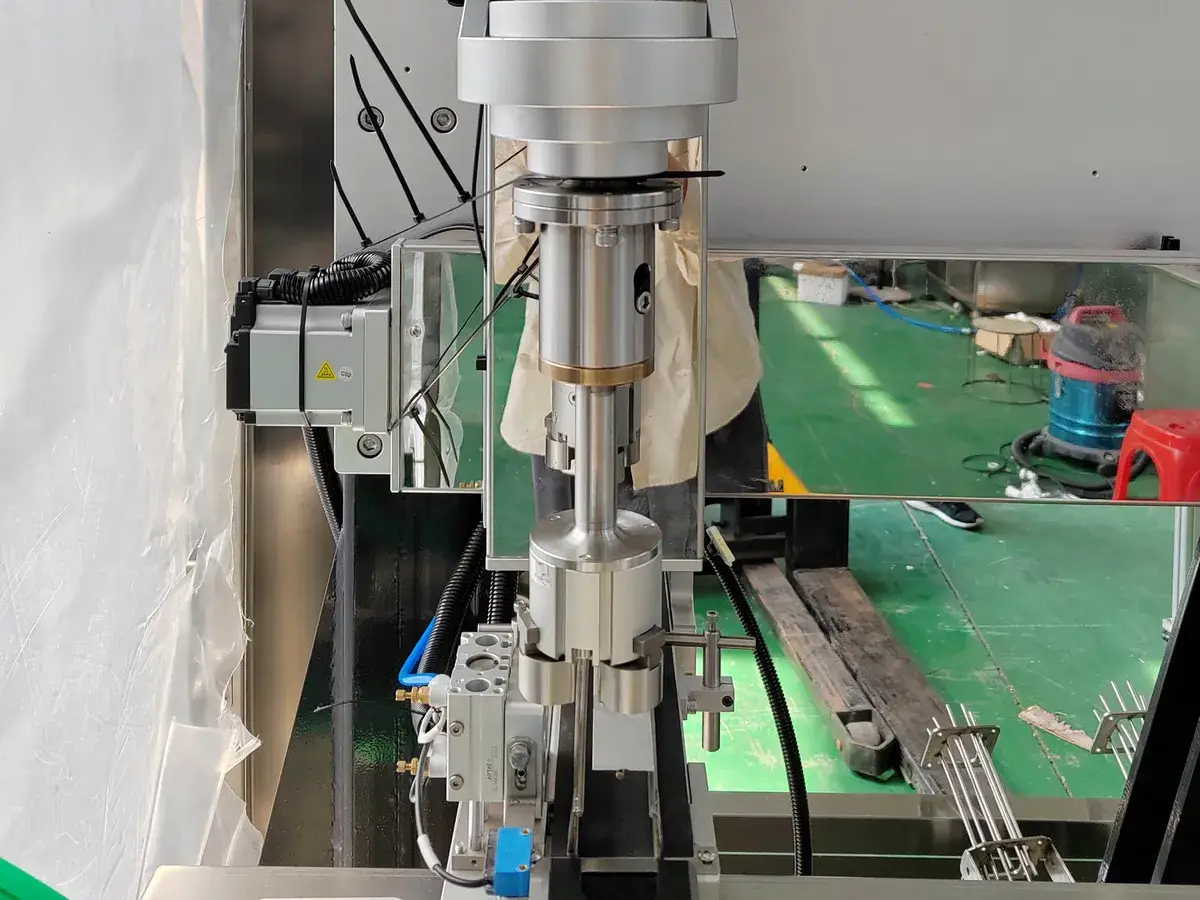

Servo Drive Capping HeadPrecisely controls the cap positioning and torque, ensures stable and smooth cap placement to achieve high-quality cap sealing.
-
Servo Motion Control SystemAccurately controls the synchronization between capping head and conveyor with precision up to ±0.1mm
-

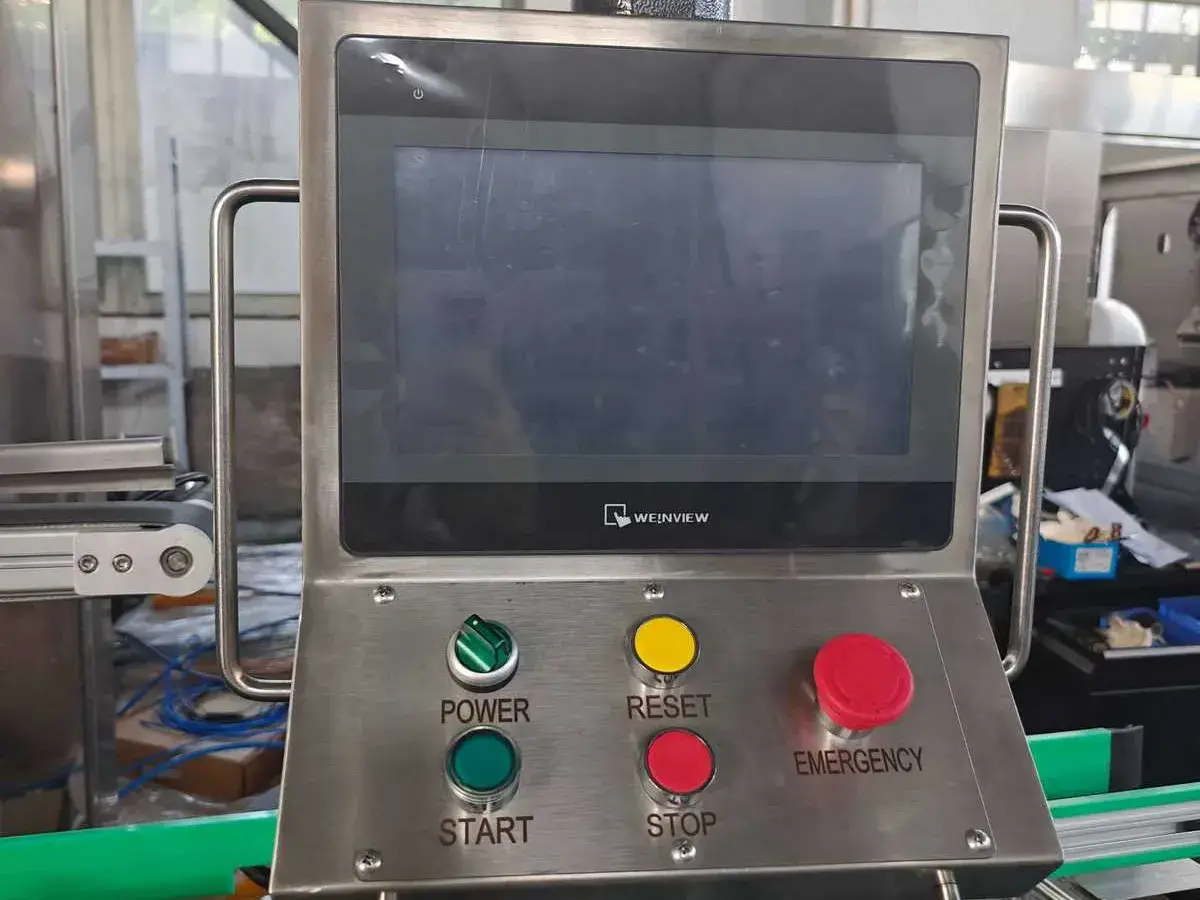

Intelligent Touch ScreenIntegrates multiple functions such as parameter setting, status monitoring, recipe management and failure diagnosis, facilitating efficient and intuitive operations, fast and smooth changeovers.
| Model | |
| Production Speed | 40pcs/Min based on one head 80pcs base on two heads |

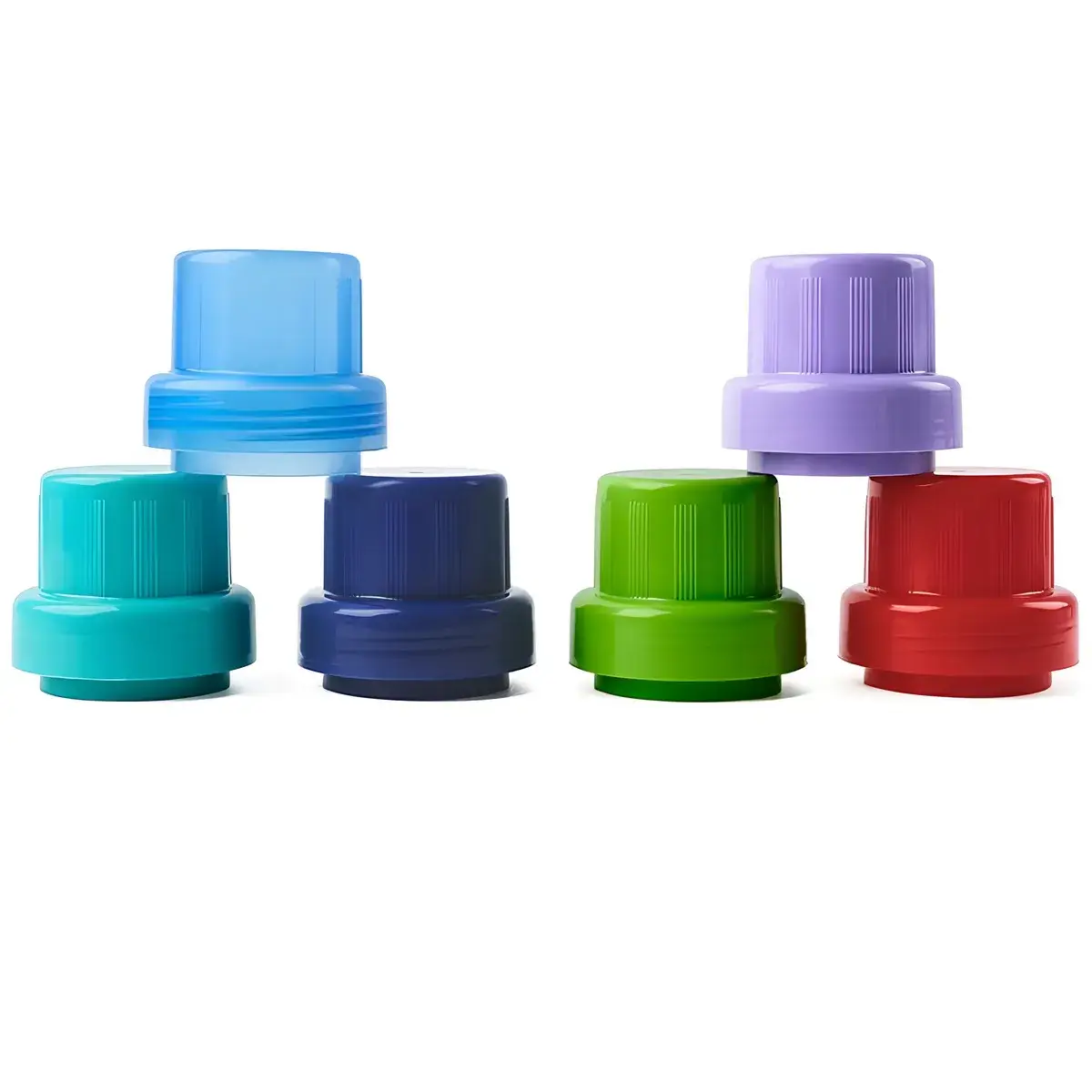

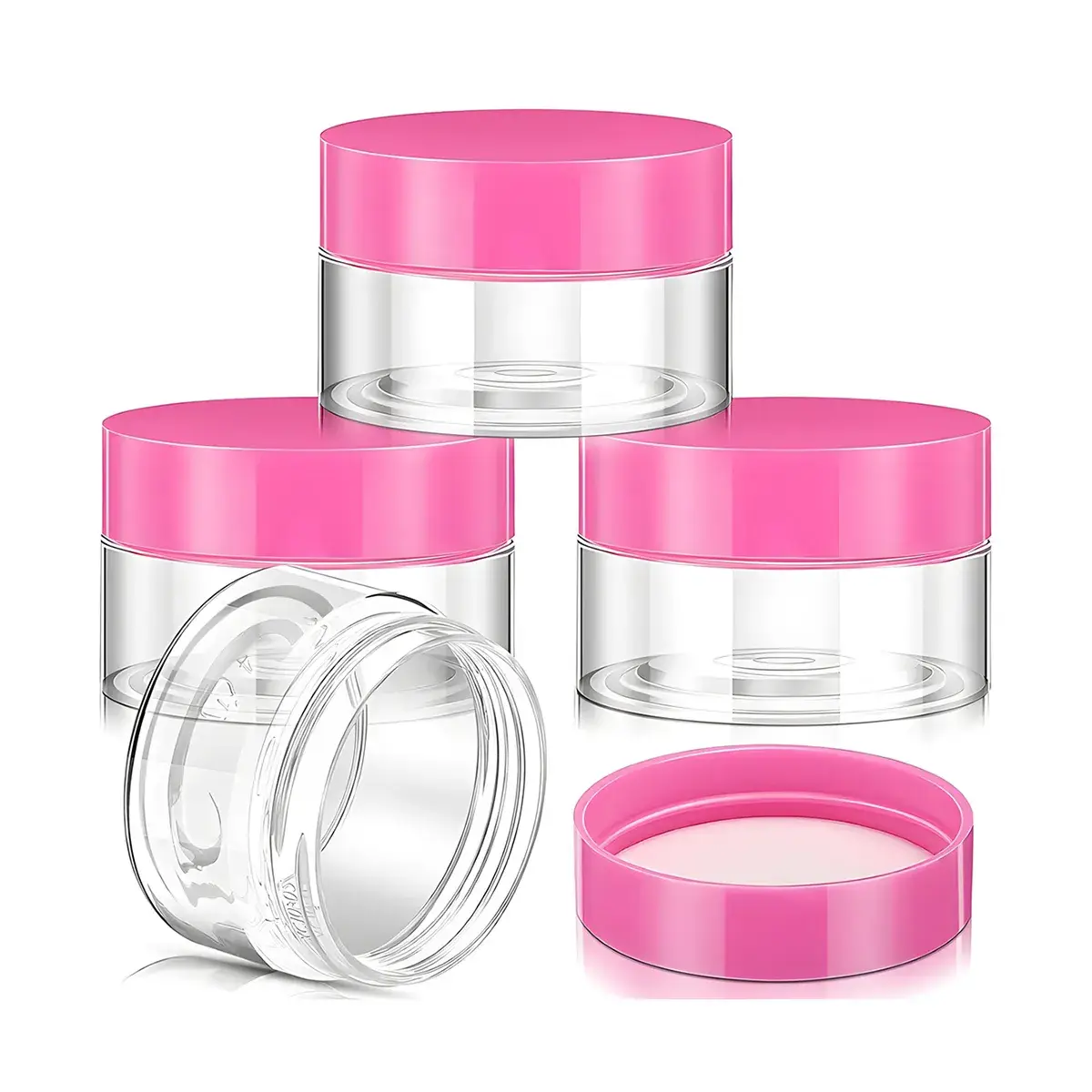

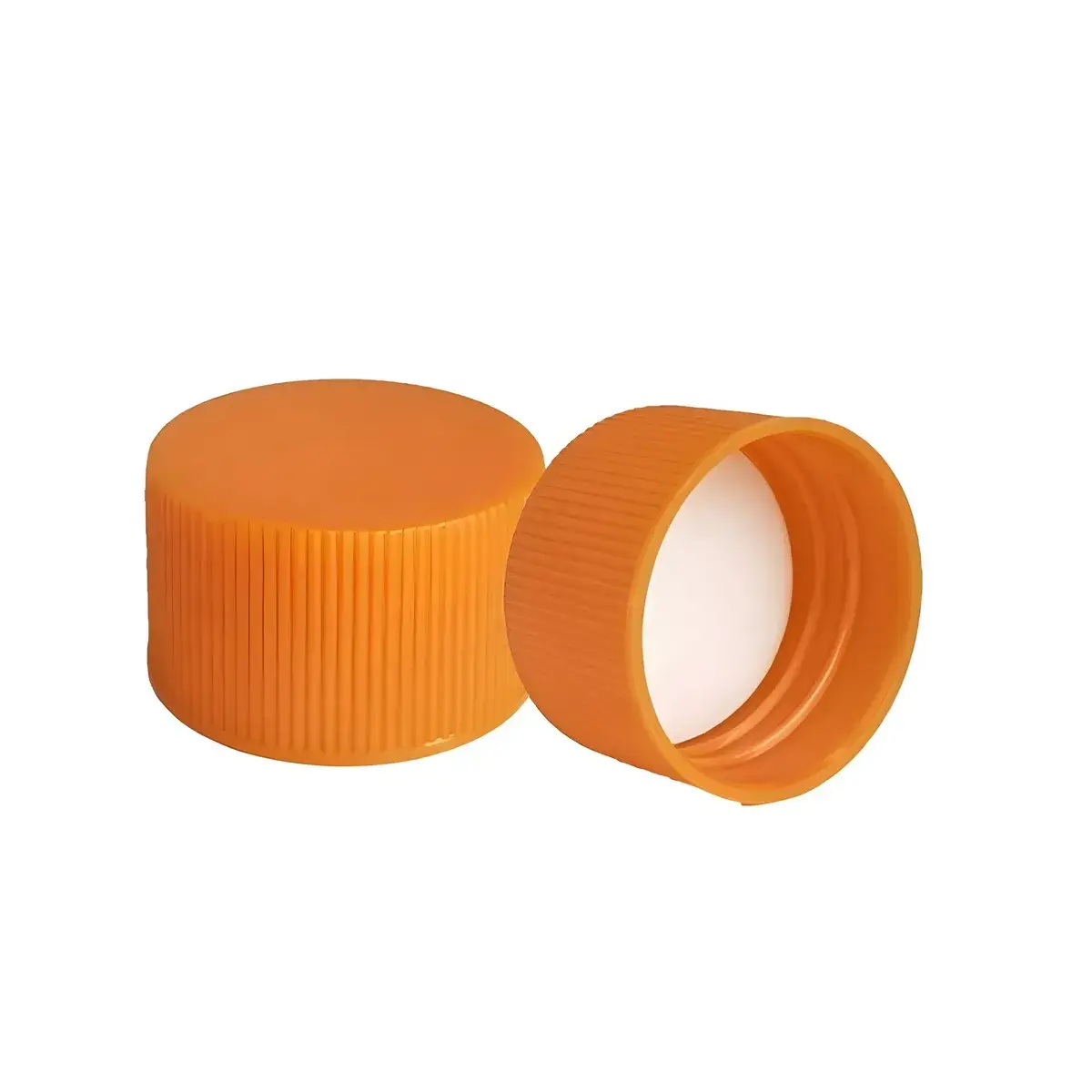

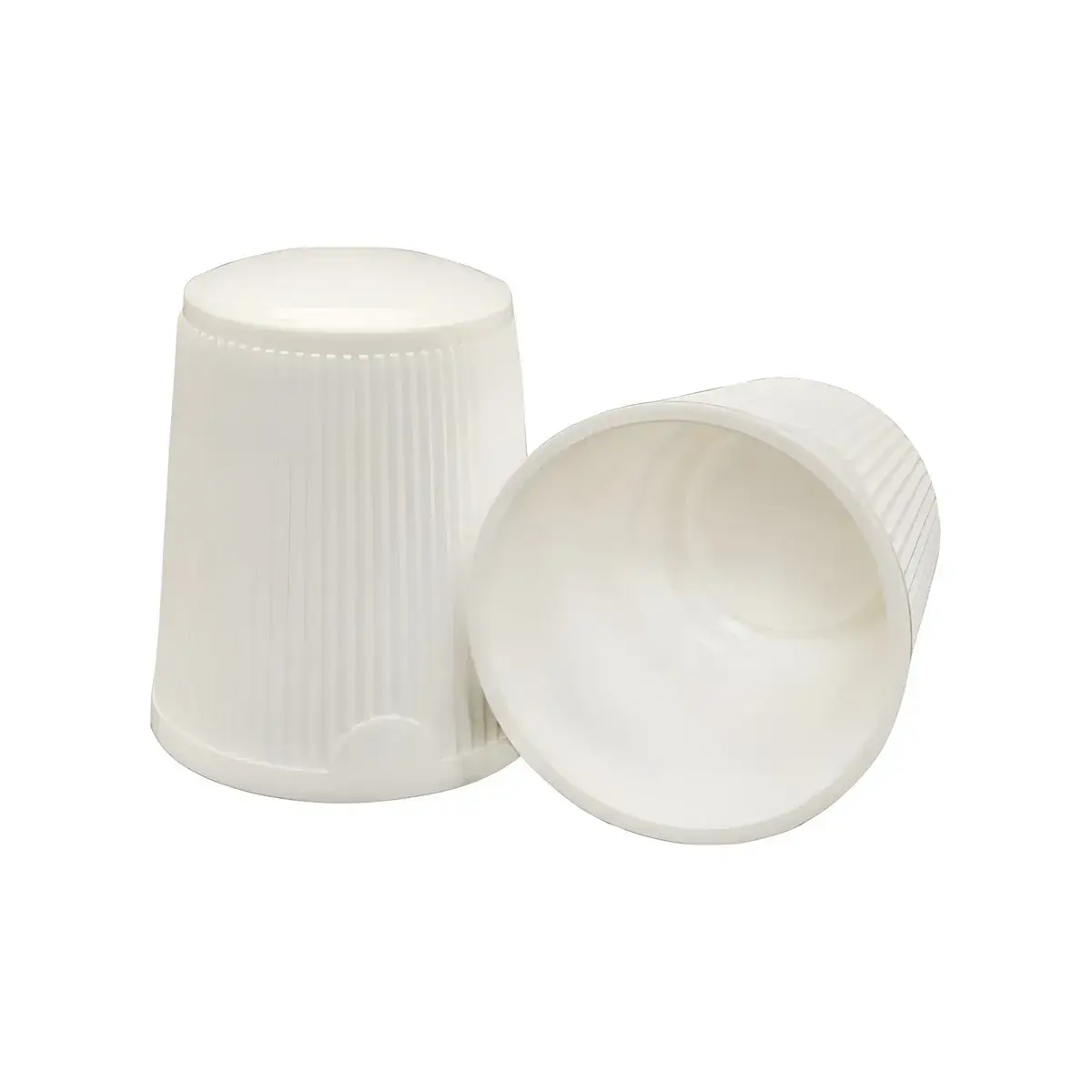

| Cap Type | Screw cap, snap caps |
| Bottle Diameter | 30-120mm customizable |
| Bottle Height | 50-380mm |
| Cap Diameter | 18-120mm |
| Power | 3.5KW for single head capping |
| Air Pressure | 0.6-1Mpa |
| Voltage | 380V, 50Hz/60Hz |
| Weight | 800KG |
| Dimension | 2200mm*1400mm*2250mm |
- Servo drive system enables precise control of cap torque and offers customizable capping options;
- The cap supply unit accommodates a wide variety of caps. Customization is solution is available, like cap elevator, vibratory bowl and so on;
- Tool-free adjustment of height and size facilitates quick and simple changeover;
- Motion control system ensures the synchronous movement between capping head and bottles, prevents liquid splash and allows for uninterrupted capping process;
- Cap placement unit ensures precise, consistent and reliable cap positioning and sealing.
